SKS Mudguard for Infinity Pannier Rack System

SKS Mudguard for Infinity pannier rack system - Perfectly integrable splash guard

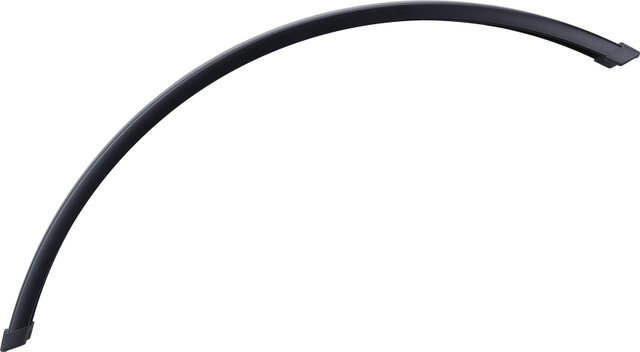

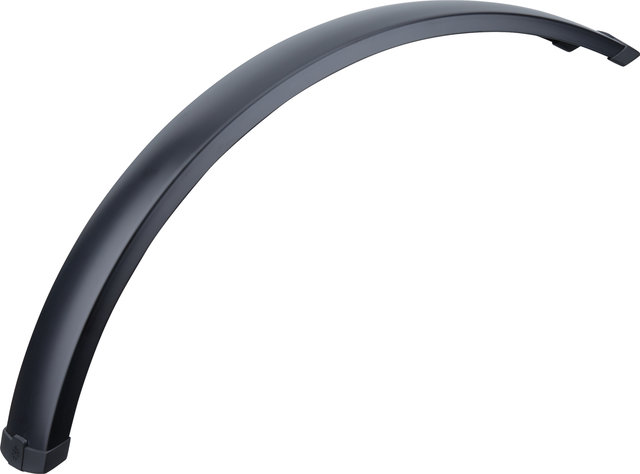

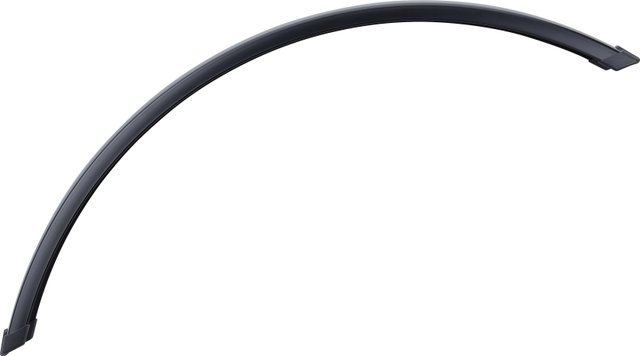

The Mudguard for the rear wheel is an accessory for the Infinity pannier rack by SKS. It can be easily attached underneath the rack and positioned by means of freely adjustable clamps so that it offers optimum protection against dirt and water. In addition, thanks to its plastic and aluminium sandwich construction, the Mudguard is particularly tough and resistant to bending.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City

Wheel Size:

27.5" (650B), 28" , 29"

Position:

pannier rack

Mount:

bolt-on

Width:

56 mm, 75 mm

Rear Fender Length:

680 mm

Material:

composite, aluminium

Approved For:

Tyre Size (max.):

29 x 1.75" (56 mm), 29 x 2.6" (75 mm)

Compatibility:

• Infinity pannier rack

Features:

• rear mudguard as optional accessory for Infinity pannier rack system
• quick and easy to attach to the pannier rack
• freely adjustable clamps for universal adaptation
• optimal splash protection for luggage and rider
• flexible sandwich construction with ultra-fine aluminium strips in plastic sheathing
• extremely robust, bend-resistant and corrosion-protected
• black matte surface for subtle look
• made in Germany

Manufacturer Numbers:

56 mm:

11938

75 mm:

11939

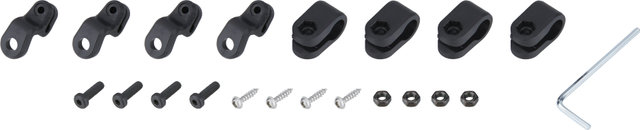

Contents:

• 1 x Mudguard SKS for Infinity pannier rack system
• 4 x stay clamps
• 4 x bike guard mounts
• 4 x nuts
• 4 x bolts
• 4 x self-tapping bolts
• 1 x hex tool
