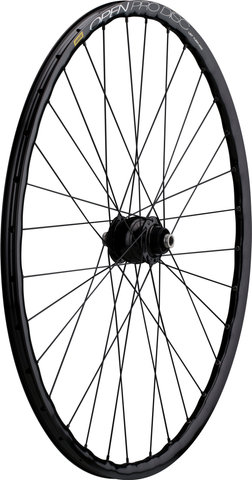

SON Delux 12 + Open Pro UST Disc + Sapim Race 28" Wheel

For self-sufficient lighting at all times: the Son Delux 12 hub dynamo wheel with a Mavic Open Pro UST rim

The Son Delux 12 is a powerful hub dynamo that illuminates the darkest tracks with a powerful light. Combined with the Mavic Open Pro UST rim and butted Sapim Race spokes, the Son Delux 12 is a robust disc front wheel for the road with a 12 mm thru-axle that can be ridden tubeless.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Road UST

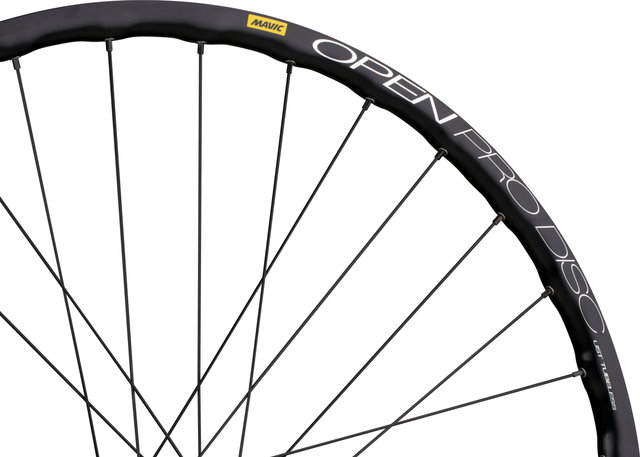

Technical Information - Rim:

Type:

Mavic Open Pro UST Disc

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

23.5 mm

Depth:

22 mm

ERD:

595 mm (rim base)

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

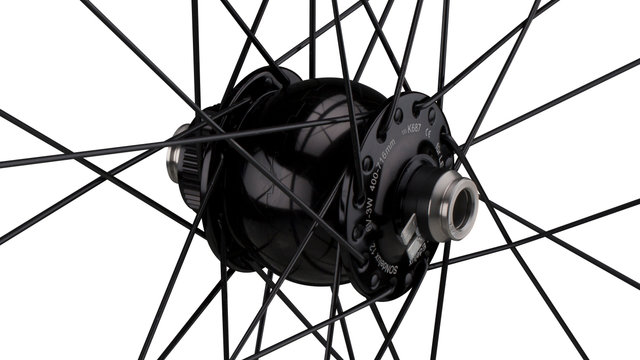

Technical Information - Front Dynamo Hub:

Type:

Son Delux 12 centre lock disc

Over Locknut Dimension:

12 x 100 mm thru-axle

Output:

6V/3W (according to StVZO)

Efficiency:

65 % at 15 km/h in a 28" wheel

Power Consumption at Idle Speed:

0.4 W at 15 km/h in a 28" wheel

Body Material:

aluminium (6082-T6)

Bearings:

deep groove ball bearing 629-2RSH (SKF)

Seals:

labyrinth seal, gaskets and pressure compensation system

Wire Connector:

4.8 mm flat plug, 2-pole, insulated return

Street Use in Germany:

yes, in conjunction with LED lights (SON Edelux / Edelux II)

Check Number:

K~~687

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Spoke Type:

Sapim Race / double butted (2.0-1.8-2.0)

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

28 to 47 mm

Features:

• the wheel is handmade
• neodymium iron boron magnetic rotor, 26-poles
• coaxial cable, PVC-free, 3 mm
• stainless steel axle ends
• flat rim profile
• welded, single eyeleted
• conventional rim drilling
• Tubeless Ready (only with Mavic UST valve - must be purchased separately)
• use with Mavic UST rim tape

Colour Index:

Note:

Generally, the first component of the colour designation is allocated to the hub, and the second to the rim.

black-black:

• Rim: black
• Spokes: black
• Hub: black
• Nipples: black

Manufacturer Number:

black-black:

393210MD2

Contents:

• 1 x SON front wheel Son Delux 12 + Mavic Open Pro UST + Sapim Race

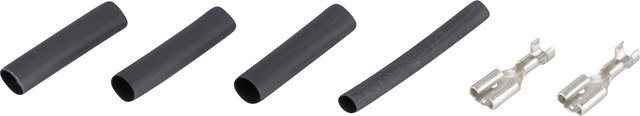

• 1 x mounting material set
