SON Delux + Open Pro + Sapim Race 28" Wheel - Closeout

For self-sufficient lighting at all times: the Son Delux hub dynamo wheel with a Mavic Open Pro rim

The Son Delux is a powerful hub dynamo that illuminates the darkest tracks with a powerful light. Combined with the Mavic Open Pro rim and butted Sapim Race spokes, the Son Delux is a robust front wheel for road bikes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

rim brake

Tubeless System:

none

Technical Information - Rim:

Type:

Mavic Open Pro

Rim Flange:

with hook

Dimensions (ETRTO):

15-622

Inner Width:

15 mm

Outer Width:

19 mm

Depth:

18.5 mm

ERD:

602 mm (rim base)

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

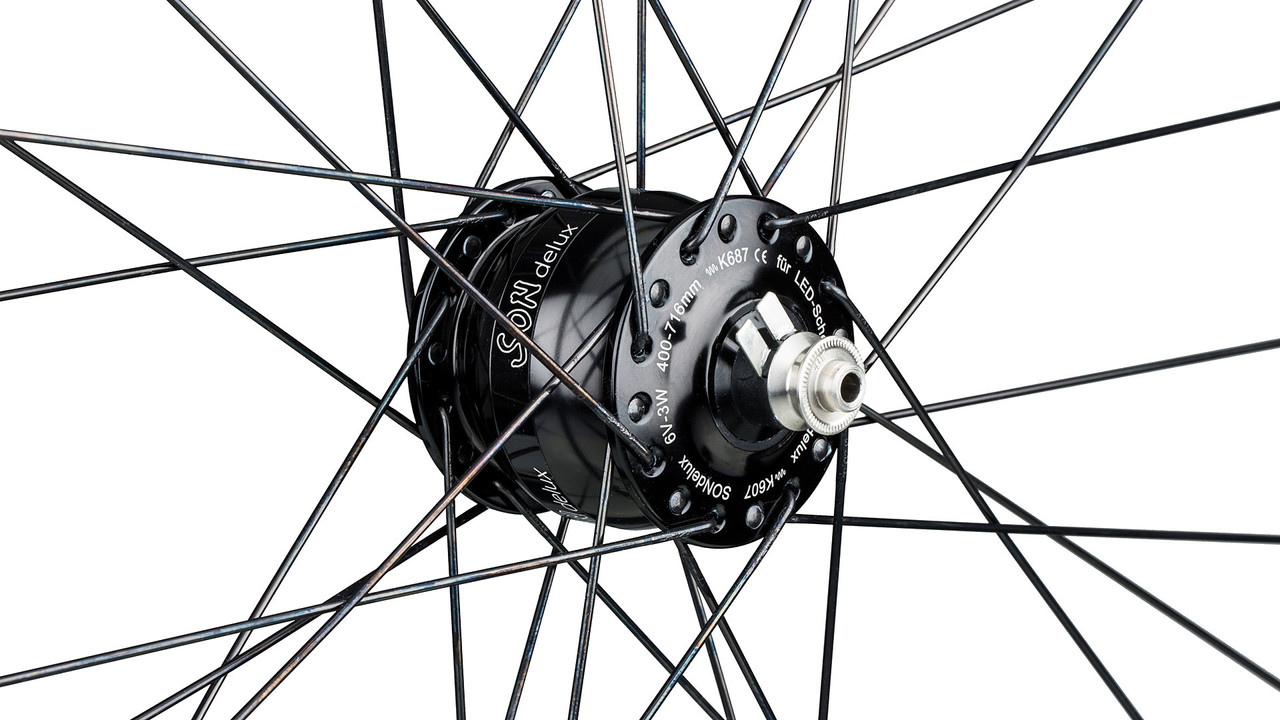

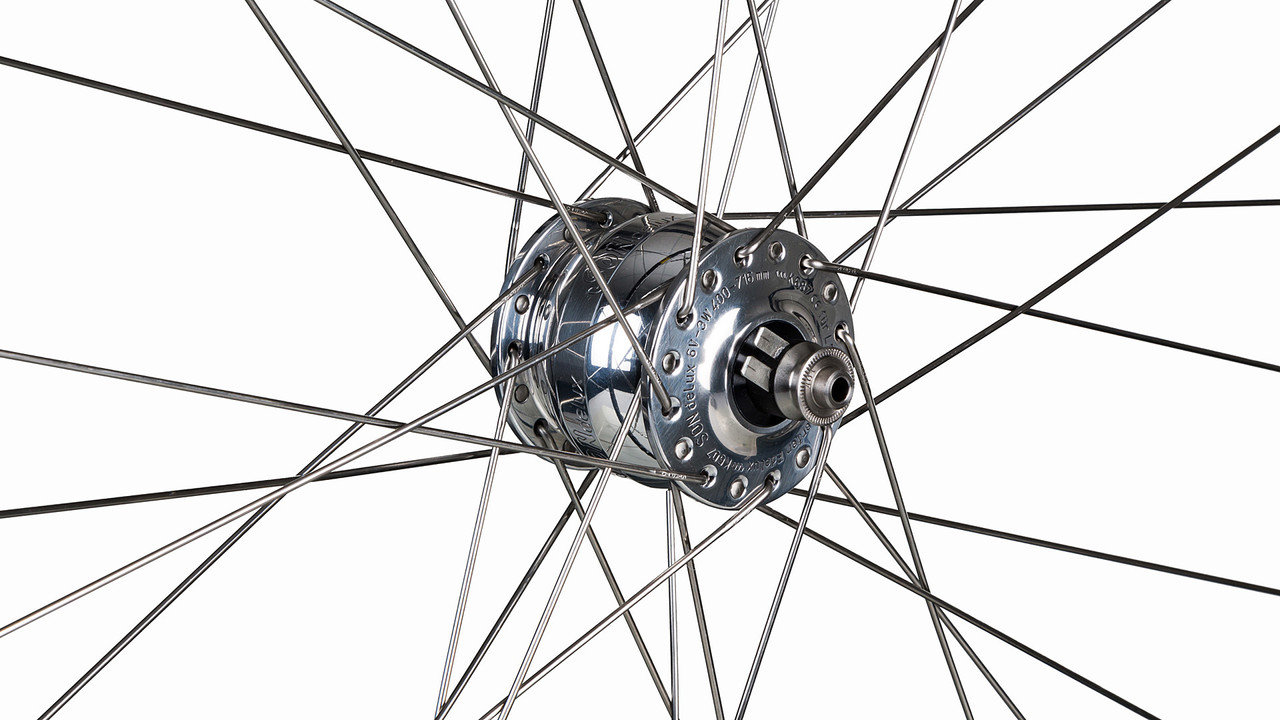

Technical Information - Front Dynamo Hub:

Type:

SON Son Delux

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

65 % at 15 km/h in a 28" wheel

Power Consumption at Idle Speed:

0.4 W at 15 km/h in a 28" wheel

Body Material:

aluminium (6082-T6)

Bearings:

deep groove ball bearing 629-2RSH (SKF)

Seals:

labyrinth seal, gaskets and pressure compensation system

Wire Connector:

4.8 mm flat plug, 2-pole, insulated return

Street Use in Germany:

yes, in conjunction with LED lights (SON Edelux / Edelux II)

Check Number:

K~~687

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Spoke Type:

Sapim Race / double butted (2.0-1.8-2.0)

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

19 to 28 mm

Features:

• the wheel is handmade
• conventional rim drilling
• double eyelets
• flat profile
• Maxtal alloy
• UB Control and SUP Technology
• neodymium iron boron magnetic rotor, 26-poles
• hollow axle (10 mm) made of aluminium 7075-T6
• stainless steel axle ends

Colour Index:

Note:

Generally, the first component of the colour designation is allocated to the hub, and the second to the rim.

black-black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

silver-black:

• Rim: black
• Hub: silver (polished)
• Spokes: black
• Nipples: silver

Manufacturer Numbers:

black-black:

263212MA2

silver-black:

263202MA2

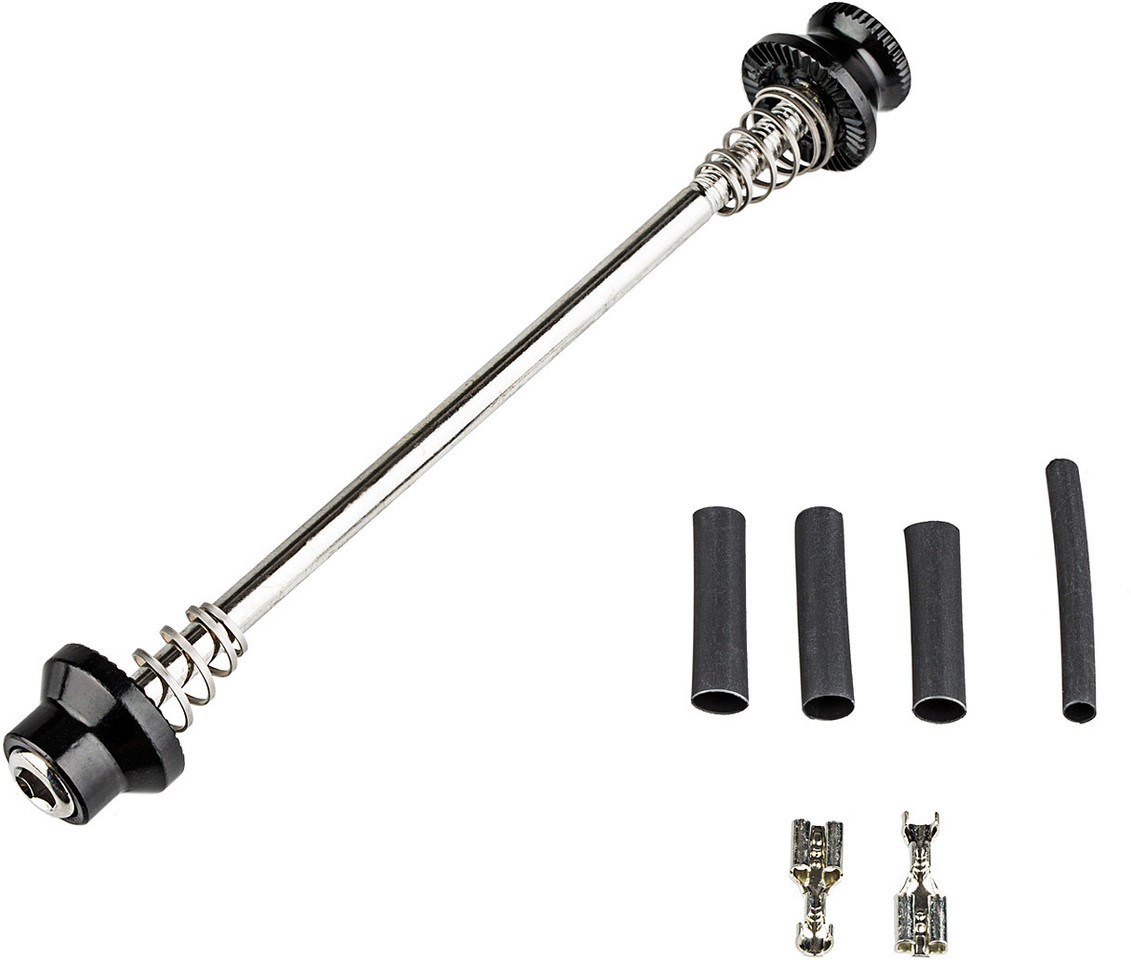

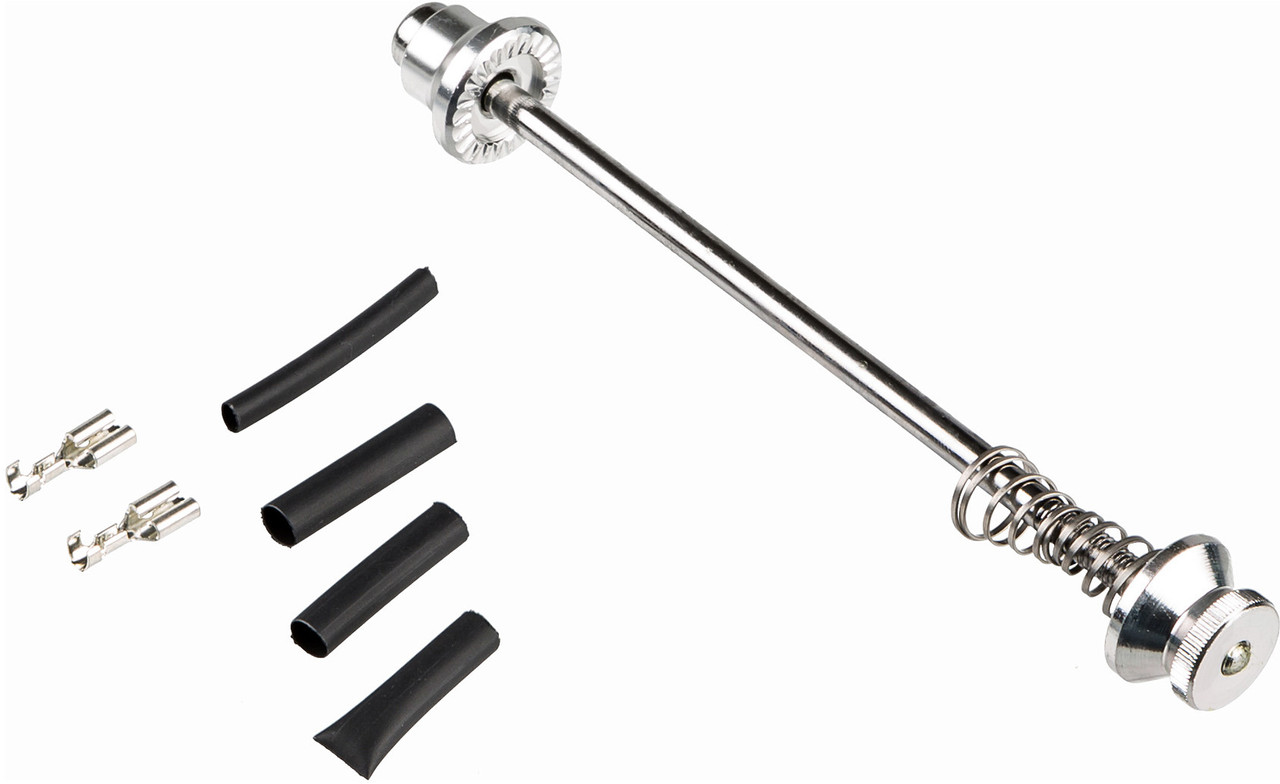

Contents:

• 1 x SON Son Delux + Mavic Open Pro + Sapim Race front wheel
• 1 x bolt-on axle (hex socket)
• 1 x mounting material set
