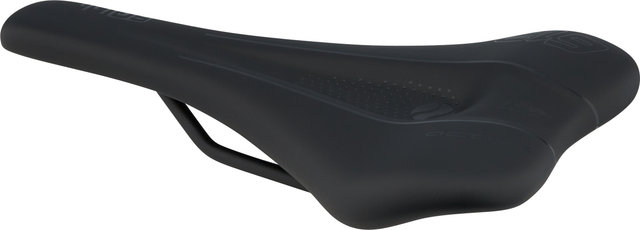

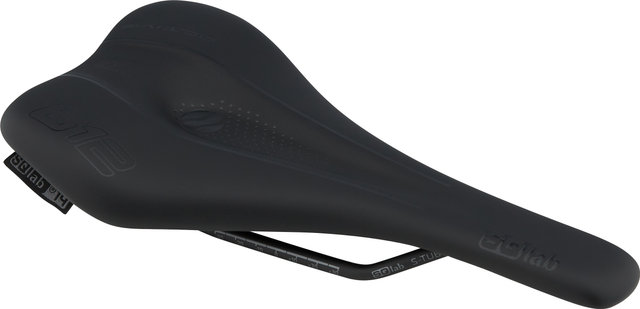

SQlab 612 Ergowave active 2.1 Saddle

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Road, Cyclocross, Cross Country, Gravel

Length:

275 mm

Width:

120 mm, 130 mm, 140 mm, 150 mm, 160 mm

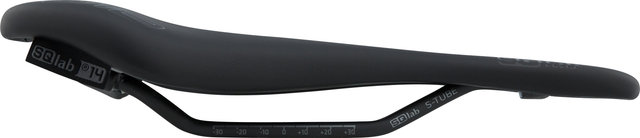

Saddle Rails:

7 x 7 mm (standard)

Technical Information:

Rail Material:

Stainless steel alloy (S-Tube)

Padding Material:

Foam (Superlight Foam)

Cover Material:

Composite (C84)

Approved For:

Weight Limit:

100 kg

Features:

• athletic-ergonomic saddle for road cyclists and mountain bikers
• raised tail and narrow shape promote sporty posture and optimal power transmission when pedalling
• deepening with a strong dip and sloping nose relieve both the female and male perineal area in equal measure
• flexible active movement is easy on the back
• suitable for installing on e-bikes

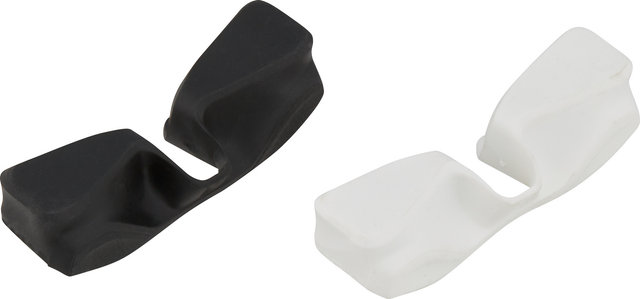

• three interchangeable elastomers in different degrees of hardness
• water-repellent cover
• relief in the perineal area: 63 %
• padding firmness in SQ-Shore: 60

Technology:

active

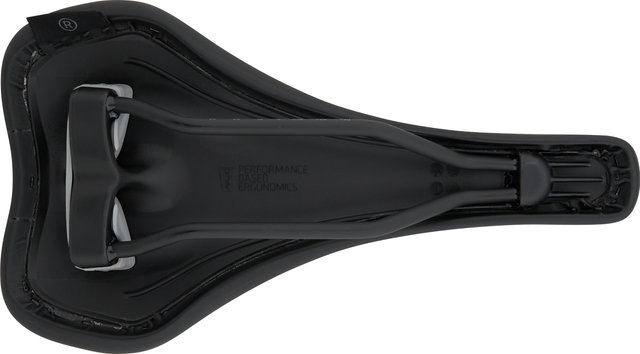

The construction of the saddle allows the pelvis to move horizontally. The execution of the so-called pelvic swing is thus guaranteed, as with natural walking. This ensures a round step which can relieve the strain on spinal discs and facet joints. This can contribute to fatigue-free riding and to the prevention of complaints in the area of the lower lumbar spine.

Ergowave

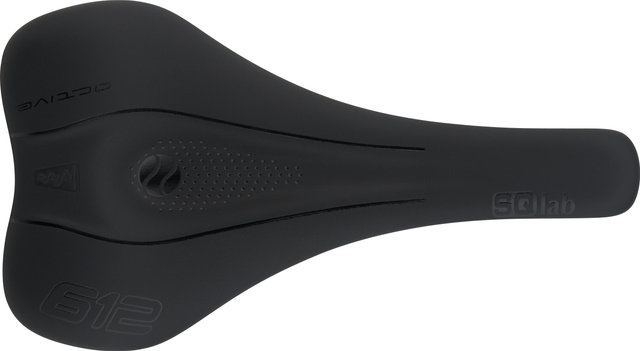

In cooperation with the Sqlab research and development laboratory, the Frankfurt University of Applied Sciences and the Frankfurt University Hospital, the new Ergowave saddle shape was developed through a government-funded research project. The latest findings on the stress limits of skin, muscles and fatty tissue, as well as the nerves and blood vessels located in the perineal area, led to the new Ergowave saddle shape for a sporty riding position. The raised rear with a slightly rounded step and the subsequent wave shape that merges into a second small step gives the pelvis a lot of support, especially towards the back, and the pressure is distributed evenly over the ischial branches down to the deep structures.

MaxContact® Concept
The saddle noses of the SQlab step saddles are, according to the SQlab MaxContact® principle not curved, but flat. This increases the contact surface without increasing the width of the saddle nose. This means more safety and comfort when sitting dynamically.

Saddle Width System
Many SQlab saddles are available in different widths, because " buying a saddle is like buying shoes" - the size has to be right! The most important thing with the saddle is that both seat bones sit completely on the saddle.

SQ-Shore:
SQ-Shore is the unit for the upholstery hardness of the saddle. SQlab saddles are available from 30 - 70 SQ shore. The higher the shore, the harder the saddle.

Models:

black / 120 mm:

Width:

120 mm

Manufacturer Number:

2398

black / 130 mm:

Width:

130 mm

Manufacturer Number:

2399

black / 140 mm:

Width:

140 mm

Manufacturer Number:

2400

black / 150 mm:

Width:

150 mm

Manufacturer Number:

2401

black / 160 mm:

Width:

160 mm

Manufacturer Number:

2402

Contents:

• 1 x SQlab 612 Ergowave active 2.1 Saddle
• 1 x soft elastomer
• 1 x medium elastomer
• 1 x hard elastomer
