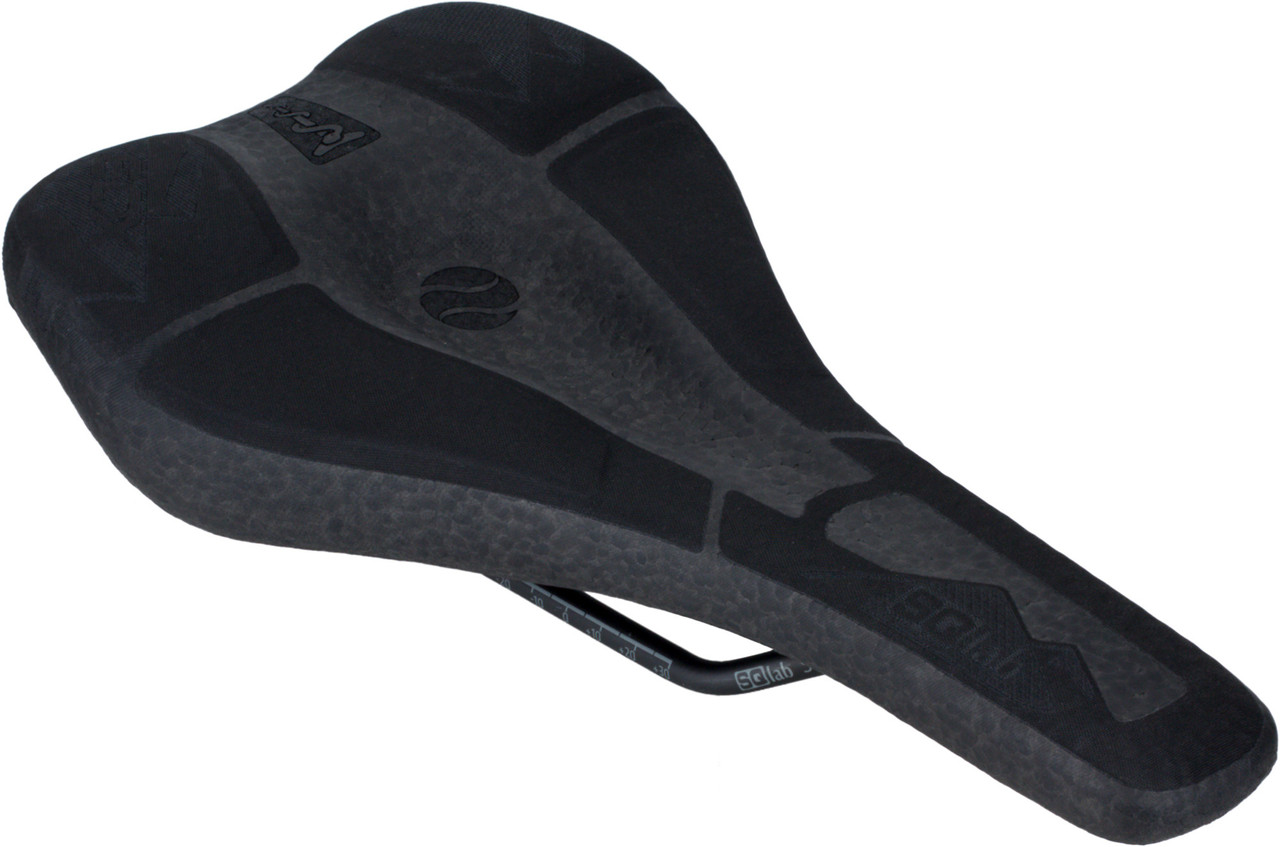

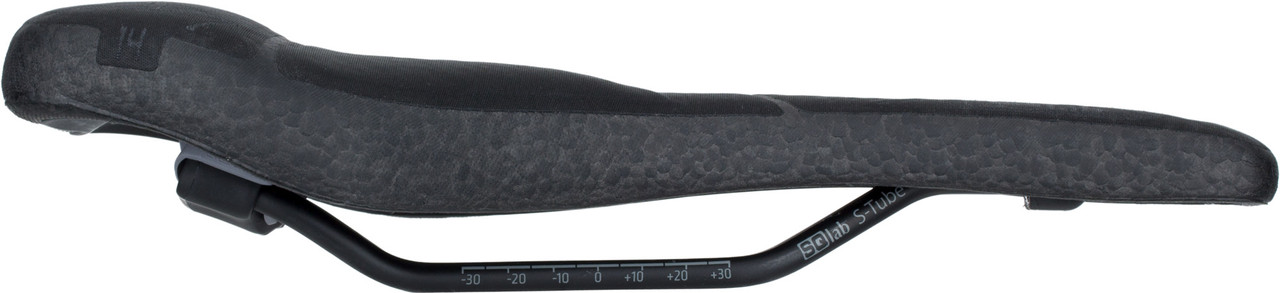

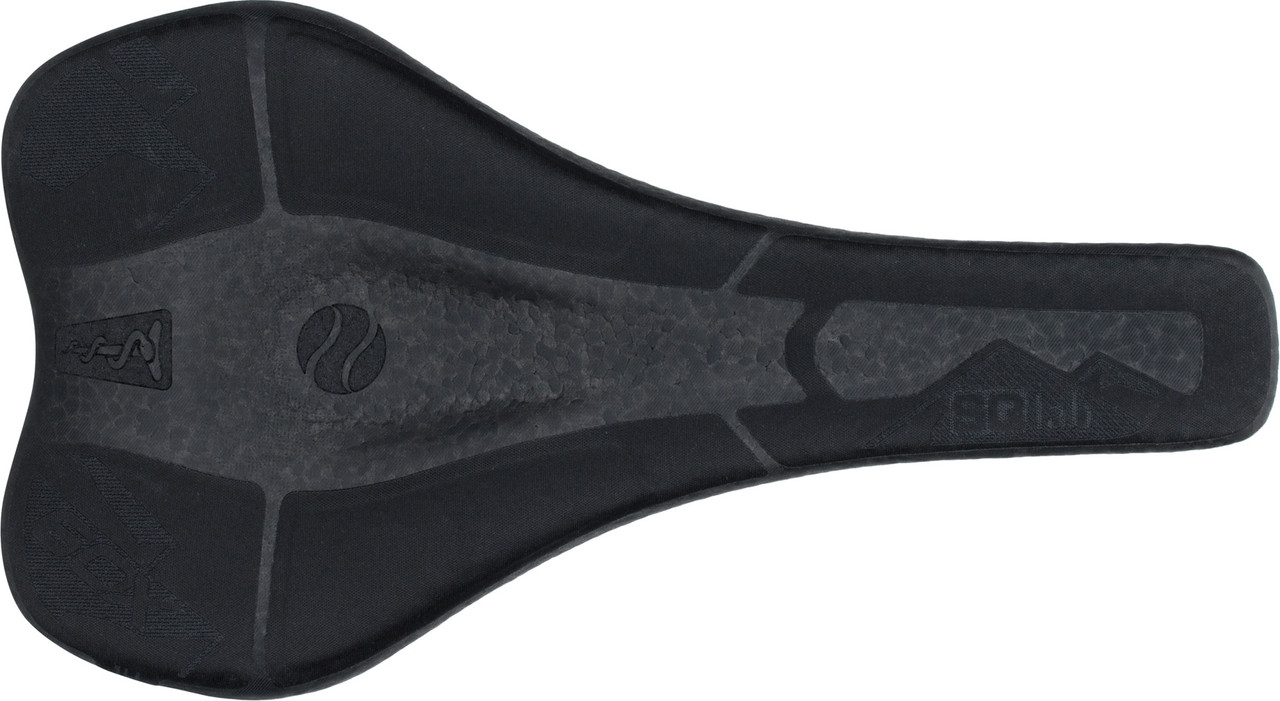

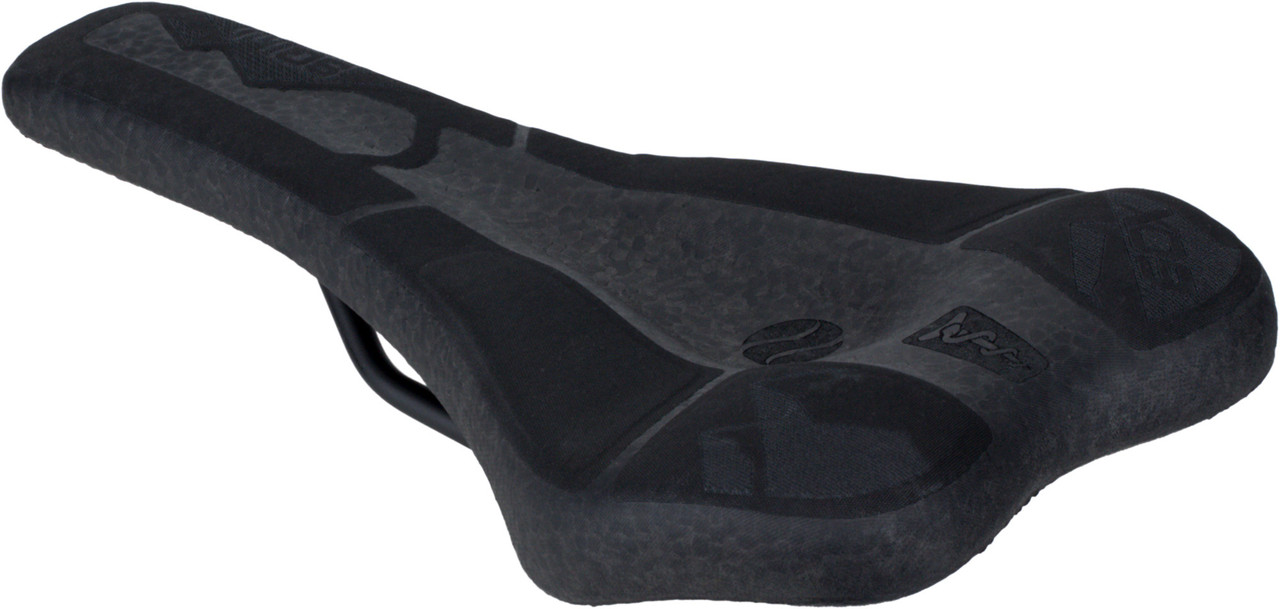

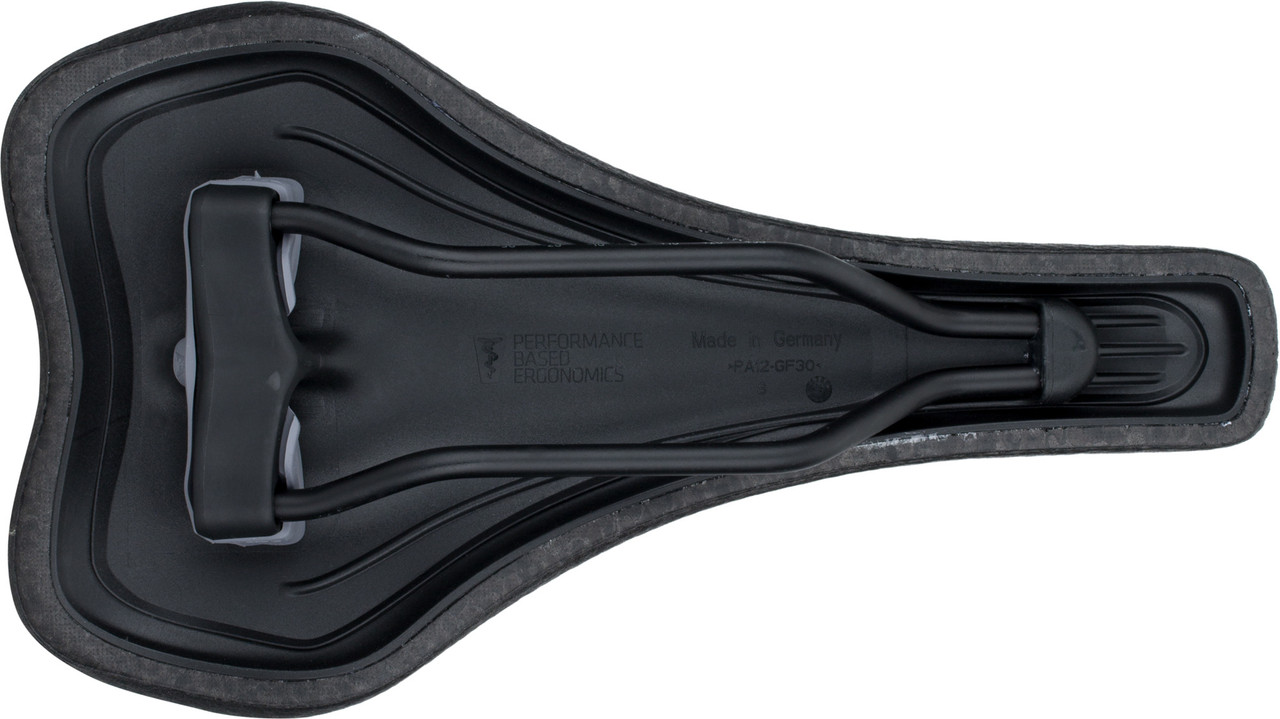

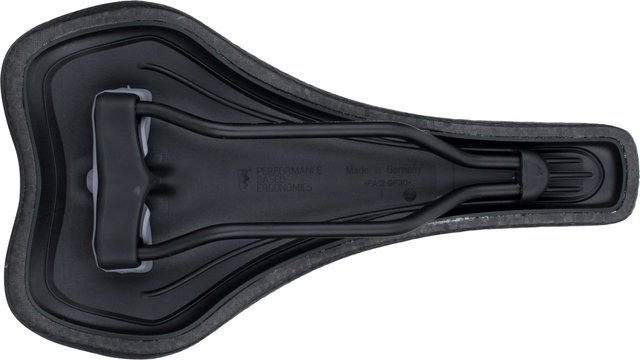

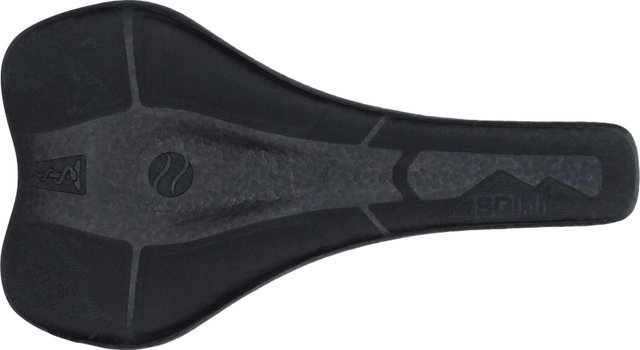

SQlab 6OX Infinergy Ergowave active 2.1 Saddle

The 6OX Ergowave active 2.1 saddle from SQlab with resistant Infinergy foam offers comfort and efficiency on all-mountain and enduro tours.

The SQlab measuring board helps you to choose the right saddle width.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Length:

280 mm

Width:

130 mm, 140 mm, 150 mm, 160 mm

Saddle Rails:

7 x 7 mm (standard)

Technical Information:

Rail Material:

Stainless steel alloy (S-Tube)

Padding Material:

Plastic (Infinergy®)

Cover Material:

textile woven fabric (Interlock)

Approved For:

Weight Limit:

110 kg

Features:

• excellent for long, steep climbs, also on the e-bike
• with robust, comfortable Infinergy foam from BASF
• tapes on support surfaces are bonded to the foam underneath
• made in Germany
• raised seat for a sporty posture and optimal power transfer when pedalling
• recess in the centre of the saddle and flat, slightly sloping nose relieve both female and male perineal area in equal measure
• compliant active movement protects the back and mobilises the intervertebral discs
• water-repellent cover

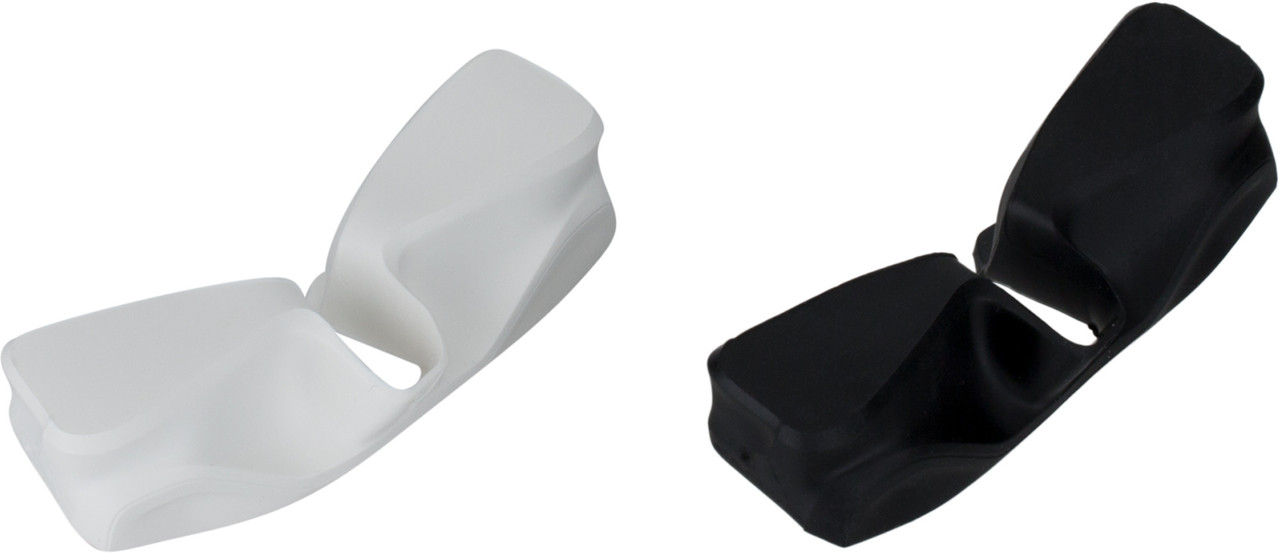

• three interchangeable elastomers in different degrees of hardness
• relief in the perineal area: 72 %
• padding firmness in SQ-Shore: 55

Technology:

active
The construction of the saddle allows the pelvis to move horizontally. The execution of the so-called pelvic swing is thus guaranteed, as with natural walking. This ensures a round step which can relieve the strain on spinal discs and facet joints. This can contribute to fatigue-free riding and to the prevention of complaints in the area of the lower lumbar spine.

Ergowave
In cooperation with the Sqlab research and development laboratory, the Frankfurt University of Applied Sciences and the Frankfurt University Hospital, the new Ergowave saddle shape was developed through a government-funded research project. The latest findings on the stress limits of skin, muscles and fatty tissue, as well as the nerves and blood vessels located in the perineal area, led to the new Ergowave saddle shape for a sporty riding position. The raised rear with a slightly rounded step and the subsequent wave shape that merges into a second small step gives the pelvis a lot of support, especially towards the back, and the pressure is distributed evenly over the ischial branches down to the deep structures.

MaxContact® Concept
According to the SQlab MaxContact® principle, the saddle noses on SQlab step saddles are not curved, but flat. This increases the contact surface without increasing the width of the saddle nose. This means more safety and comfort when sitting dynamically.

Saddle Width System
Many SQlab saddles are available in different widths, because " buying a saddle is like buying shoes" - the size has to be right! The most important thing with the saddle is that both seat bones sit completely on the saddle.

SQ-Shore
SQ-Shore is the unit for the upholstery hardness of the saddle. SQlab saddles are available from 30 - 70 SQ shore. The higher the shore, the harder the saddle.

Manufacturer Numbers:

130 mm:

2460

140 mm:

2461

150 mm:

2462

160 mm:

2463

Contents:

• 1 x SQlab 6OX Infinergy Ergowave active 2.1 Saddle
• 1 x SQlab elastomer, soft
• 1 x SQlab elastomer, medium
• 1 x SQlab elastomer, hard
