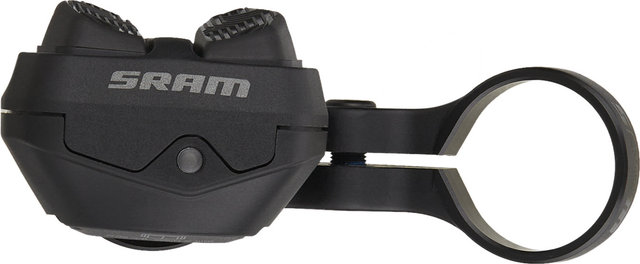

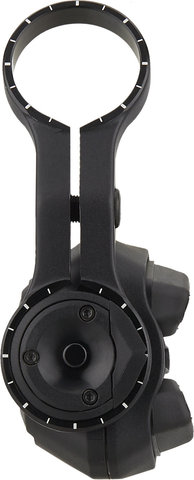

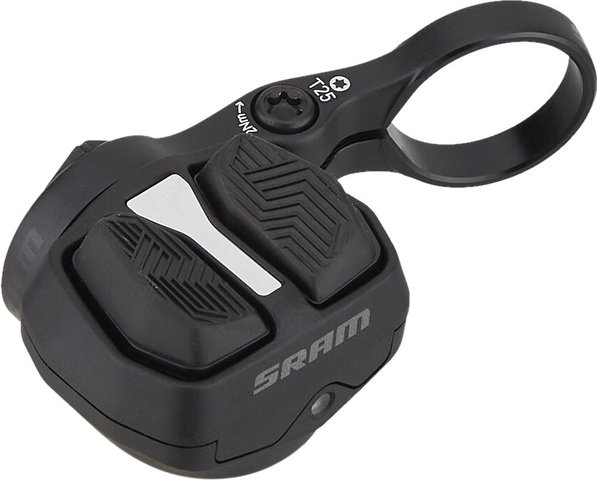

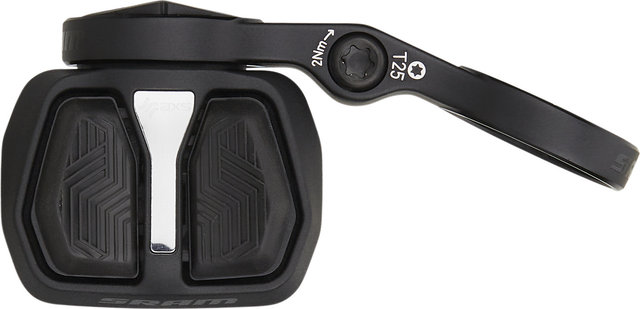

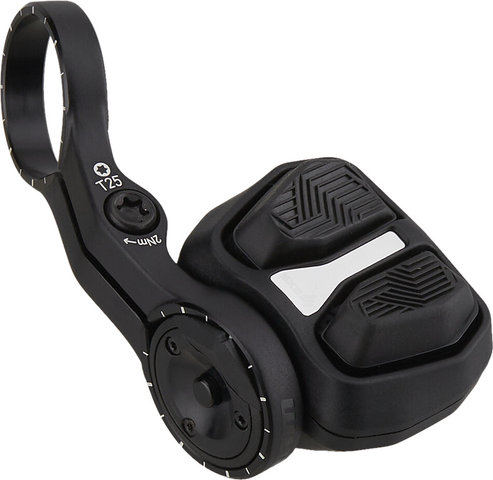

SRAM AXS Pod Ultimate Controller - 2024 Model

The SRAM AXS Pod Ultimate Controller - Electronic control with interchangeable control caps

With the AXS Pod Ultimate Controller from SRAM, you can control electronic components such as an AXS rear derailleur or an AXS seatpost and also have a choice of two different designs for the controller surfaces. Try out the concave and convex caps and decide for yourself what suits you more. You also decide yourself which of the two buttons is responsible for what. The included clamp can be removed and rotated so that you can mount the controller on the left or right. Another plus: the controller unit can be rotated, so you can adjust the angle for your fingers. Incidentally, the AXS Pod controller is not only more ergonomically designed, but it is also lighter than its Eagle AXS predecessor.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Gearing:

12-speed

Mount:

clamp (closed)

Technical Information:

Type:

Controller

Body Material:

composite

Lever Material:

composite

Clamp Diameter:

22.2 mm

Adjustment Options:

• individual key assignment for intuitive control
• adjustable mount position
• replaceable lever caps

Compatibility:

• AXS components

Features:

• controller for electronic, wireless shifting with two easy-to-grip buttons
• with interchangeable lever caps, choose between concave and convex
• removable and reversible clamp for left or right-sided installation
• control unit can be rotated to optimally align the shift buttons
• lighter than Eagle AXS controller
• improved ergonomics compared to Eagle AXS Controller
• button functions can be individually assigned with AXS

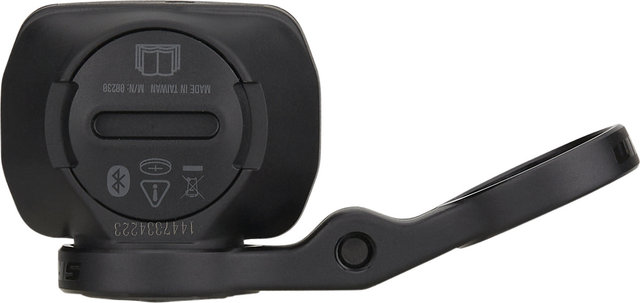

• operates with CR2032 battery
• battery compartment is easy to open
• ANT+ interface

Technology:

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Manufacturer Number:

00.3018.395.008

Contents:

• 1 x SRAM AXS Pod Ultimate controller
• 1 x SRAM clamp
• 2 x SRAM lever caps
