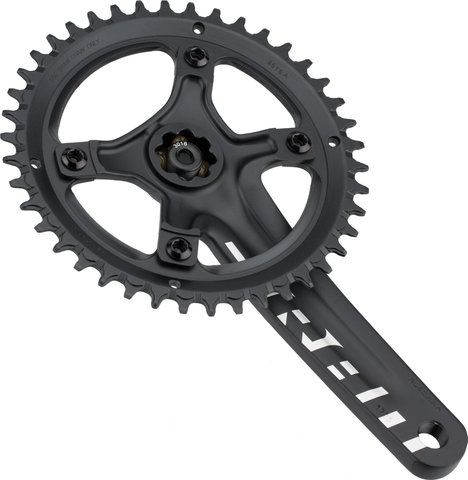

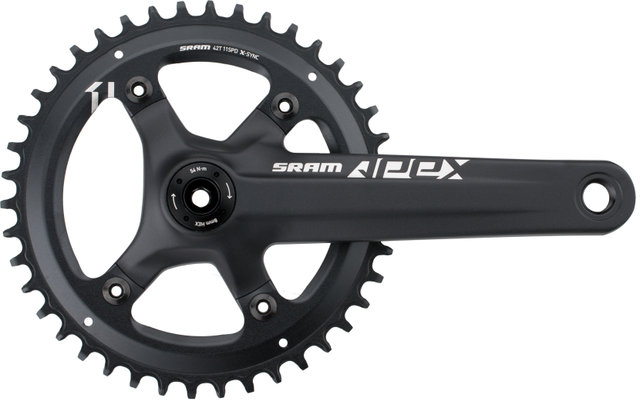

SRAM Apex 1 BB30 1x10/1x11-speed 110 mm Crankset

Technical Information:

Series:

Apex 1

Application:

Road

Crank Arm Material:

aluminium

Spider Material:

aluminium

Chainring Material:

aluminium

Bottom Bracket:

BB30 (BB30/PF30-68mm)

Gradation (1x):

42

Compatibility:

10-speed, 11-speed, Apex 1

Axle Diameter:

30 mm

Crank Arm Length:

165.0 / 170.0 / 172.5 / 175.0 mm

Chainline:

45.5 mm

Bolt Circle Diameter:

110 mm

Recommended Chain:

PC 1110

Technology:

X-Sync™

Technology:

X-Sync™:
X-Sync™ 1X chainrings from SRAM provide the highest performance and durability. Long SRAM X-Sync™ tooth edges grip the chain earlier than standard triangular teeth. The sharp and narrow tooth profile and the rounded bevelled edges support the chain guide. To guarantee the best possible performance for muddy terrain, X-Sync™ chainrings have recesses for the inner chain links and rollers to remove dirt and mud. German-made X-Sync™ chainrings are an important part of SRAM 1X™ drivetrains.

Manufacturer Numbers:

165.0 mm 42 tooth:

00.6118.477.000

170.0 mm 42 tooth:

00.6118.477.001

172.5 mm 42 tooth:

00.6118.477.002

175.0 mm 42 tooth:

00.6118.477.003

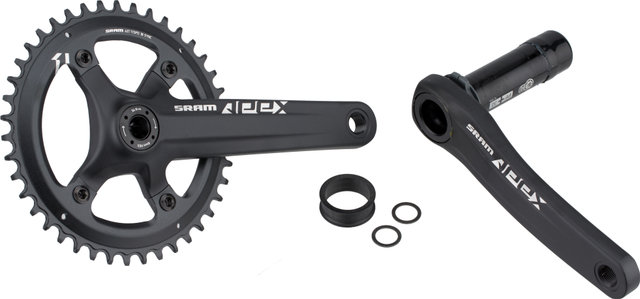

Contents:

• 1 x SRAM Apex 1 crankset
• 1 x SRAM 42-tooth chainring
• not incl. BB30 bottom bracket
