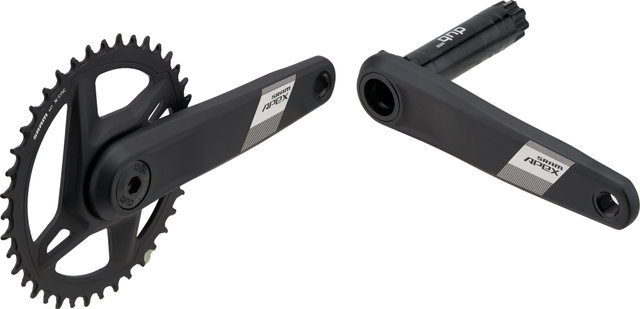

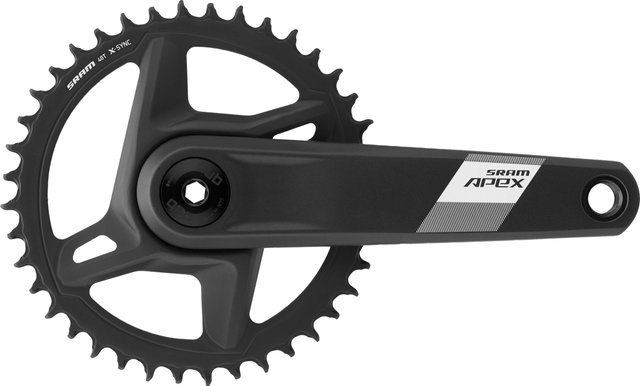

SRAM Apex 1 Wide DUB DM 1x12-speed Crankset

The SRAM Apex 1 Wide DUB DM 1x12-speed crankset for gravel bikes

The SRAM Apex 1 crankset with gravel-specific wide chainline is suitable for entry-level gravel with a 1x12-speed drivetrain and DUB bottom bracket. " Wide" means that the crank produces a larger chainline of 47.5 mm. This results in a larger tyre clearance, which benefits you with wider gravel tyres. The X-Sync™ chainring reliably holds the chain in place and is easily mounted via Direct Mount. For a replacement, you only need a T20 Torx key. Combine the crank with rear spacing from 135 to 148 mm. If you wish, you can upgrade the crankset with the Apex AXS Wide DUB Power Meter Upgrade Kit at a later date.

Specifications:

Application:

Gravel, Cyclocross, Road

Compatibility:

SRAM 1x12-speed

Chainring Mount:

SRAM Direct Mount

Technical Information:

Series:

Apex 1 Wide

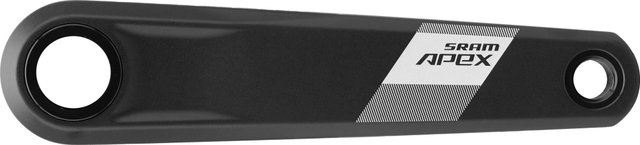

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Gradation:

40-tooth

Crank Arm Length:

160.0 mm, 165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Chainline:

47.5 mm

Axle Diameter:

28.99 mm (DUB)

Recommended Bottom Bracket:

SRAM Wide DUB

Recommended Chain:

Apex 12-speed PowerLock Chain

Compatibility:

• Over Locknut Dimension: 135 mm, 142 mm, 148 mm (Boost)

Features:

• 1x12-speed crankset with wide chainline for large tyre clearance on gravel bikes
• good chain retention with X-Sync chainring

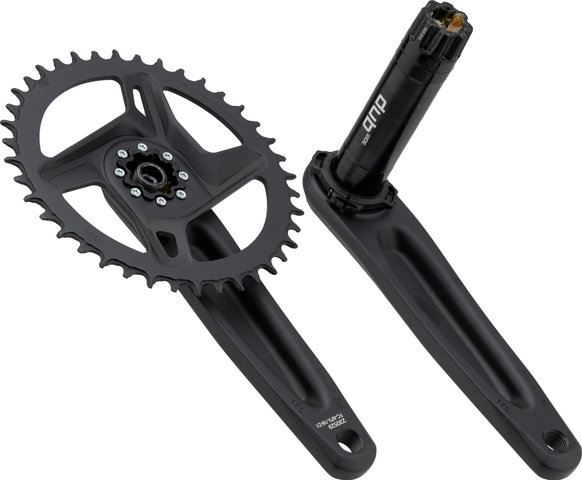

• Direct Mount assembly, thus lighter and stiffer chainring possible
• direct, precise shifting
• durable and simple thanks to DUB technology
• wider shaft compatible with road and MTB bottom bracket dimensions
• subsequent upgrade to a power meter possible

Technology:

DUB
The unit of crankshaft and bottom bracket is the heart of the DUB technology. Stiffness meets durability. SRAM has gone a step further and made everything even easier and better. It is mainly the system approach through the integration of chainring, crank, spindle and bottom bracket that means better drive performance.

X-Sync™
The X-Sync tooth design is characterised by long, rounded and slanted tooth edges with a narrow profile. Derailleur pulleys with X-Sync technology support the chain guide and remain unaffected by dust and mud.

Manufacturer Numbers:

160.0 mm 40 tooth:

00.6118.672.005

165.0 mm 40 tooth:

00.6118.672.006

170.0 mm 40 tooth:

00.6118.672.007

172.5 mm 40 tooth:

00.6118.672.008

175.0 mm 40 tooth:

00.6118.672.009

Contents:

• 1 x SRAM Apex 1 Wide DUB DM 1x12-speed 40 t crankset
