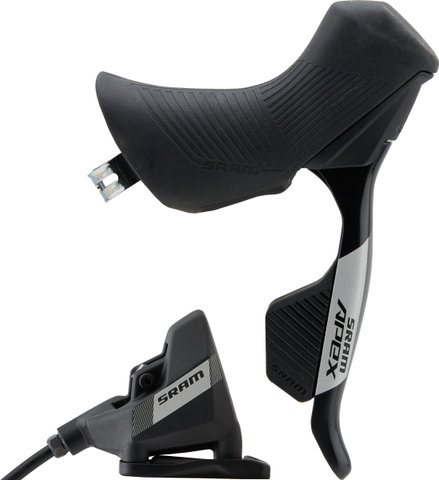

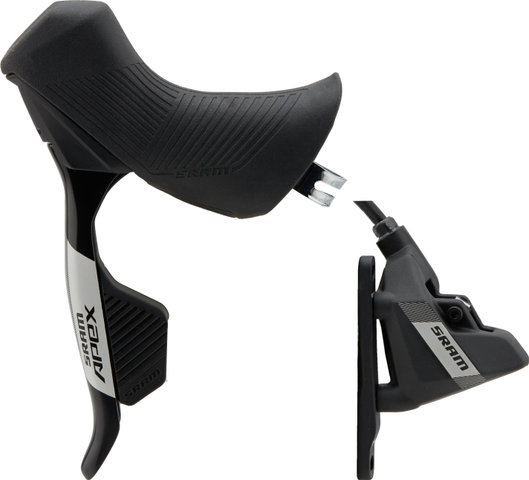

SRAM Apex eTap AXS HRD Disc Brake with Shift/Brake Lever

The SRAM Apex eTap AXS HRD disc brake with shift/brake lever - hydraulic braking and electronic shifting

SRAM's hydraulic Apex eTap disc brake with shift/brake lever for AXS connectivity is especially recommended for gravel. The ribbed texture on the rubber grips and shift paddles ensures a good grip and safe operation. The hoods can be easily grasped by both small and large hands. You can adjust the reach to your hand size with a 2.5 mm hexagon socket wrench. With the intuitive eTap shifting logic, you shift up with one lever and down with the other. Not to be forgotten, the brake caliper also offers a strong, reliable performance in any situation. For simple, clean installation, the brake is equipped with a Stealth-a-majig connection.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Apex eTap AXS

Application:

Gravel, Cyclocross, Road

Gearing:

1x, 12-speed

Shifting System:

wireless

Type:

hydraulic, 2 pistons

Actuation:

DOT 5.1

Hose Length (Front/Rear):

1300 mm / 2000 mm

Technical Information - Shift/Brake Lever:

Brake Lever Material:

aluminium

Mount:

clamp (closed)

Reach Adjust:

bolt (2.5 mm hexagon socket)

Adjustment Options:

Reach Adjust

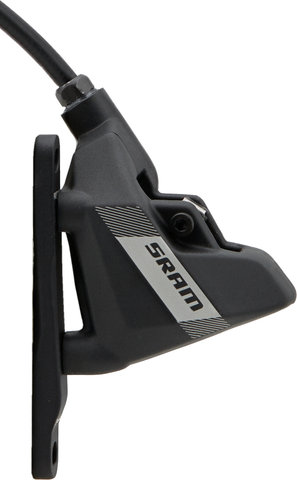

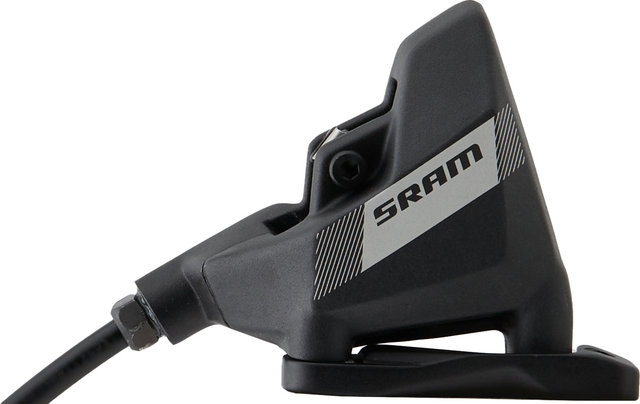

Technical Information - Caliper:

Mount:

direct mount (flat mount)

Pads:

organic

Calliper Material:

aluminium

Hose Connection:

straight

Features:

• hydraulic road disc brake with shift/brake lever for electronic shifting
• optimised handle shape for secure grip of different hand sizes
• shift lever and rubber grips structured to counteract slipping in bumpy terrain
• aluminium shift lever
• flat mount brake caliper with adapter for 20 mm offset
• with stainless steel screws
• reach adjust
• power supply of the shifter for communication with the rear derailleur via a CR2032 battery (battery life approx. 2 years)
• suitable for optionally available Wireless Blips

Technology:

eTap™
SRAM's eTap is a simple, unambiguous and intuitive shifting logic. With the shift lever on the left-hand side you move the rear derailleur inwards to a larger sprocket, with the shift lever on the right-hand side you move the derailleur outwards to a smaller sprocket. With the shift lever pressed down, you can directly shift several gears. Pressing both shift levers at the same time causes a front derailleur movement in 2x shifting systems.

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. People have individual position preferences as well as unique hand sizes and finger lengths. The grip width adjustment makes it child's play to adjust the lever - for maximum control.

Stealth-a-majig™
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

Manufacturer Numbers:

Front:

00.7918.261.002

Rear:

00.7918.261.001

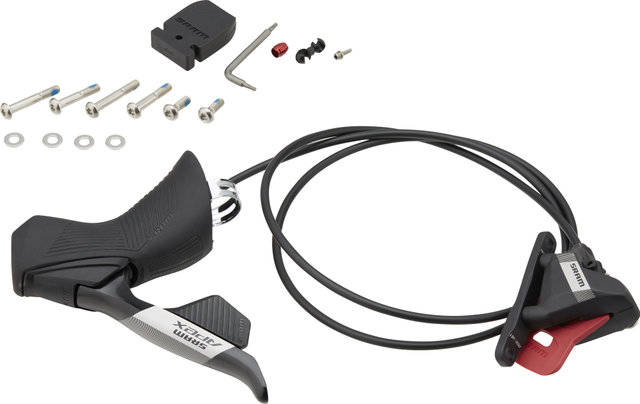

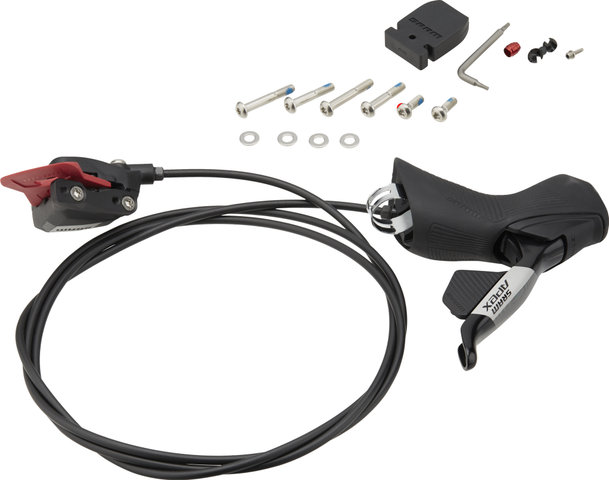

Contents:

• 1 x SRAM Apex eTap AXS HRD disc brake
• 1 x SRAM Apex eTap AXS HRD shift/brake lever with battery
• 1 x SRAM brake hose, 1300 mm (front) or 2000 mm (rear)
• 1 pair SRAM brake pads
• 1 x SRAM pad spacer
• 1 x SRAM FM to FM disc brake adapter
• 1 x SRAM bleed block

Order Together:

Optional accessories:
SRAM eTap AXS Wireless Blips Satellite Shifters
