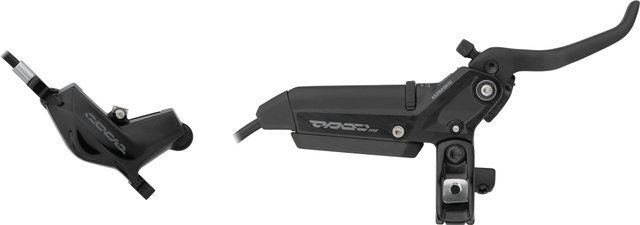

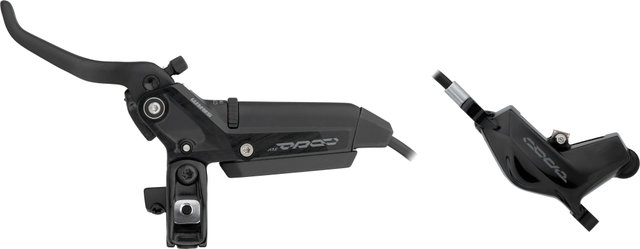

SRAM Code Silver Stealth Disc Brake

The Code Silver disc brake by SRAM in Stealth Design

The Code Silver disc brake by SRAM complements your AXS cockpit perfectly with its Stealth design and offers strong braking power in the all-mountain to downhill segment with its four pistons and metallic pads. It also shines on e-bikes. The brake lever housing has been optimised so that the hose runs closer to the handlebar. To adjust the brake to you and your habits, you set both the grip width and the pressure point. Thanks to SwingLink, you can control the power and tire out less quickly. The cartridge bearing at the lever pivot point also contributes to this and delivers a smooth braking feel.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Code

Application:

All Mountain, Enduro, Downhill

Type:

hydraulic, 4 pistons

Actuation:

DOT 4

Hose Length (Front/Rear):

950 mm / 2000 mm

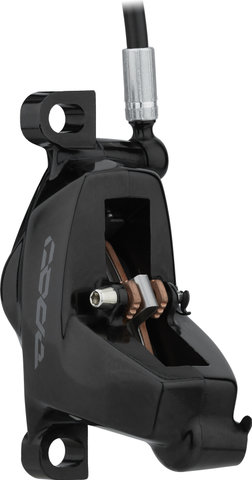

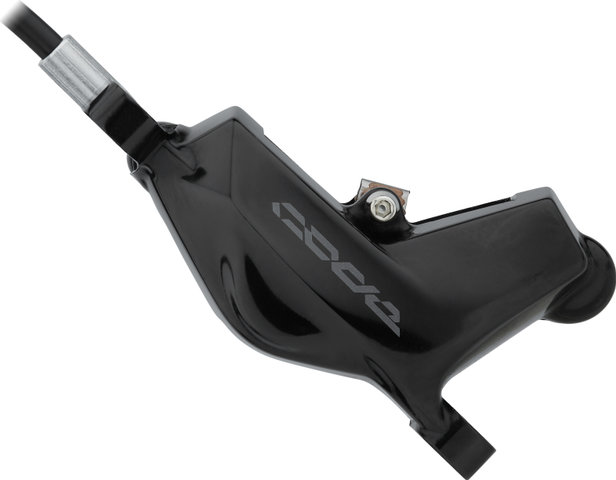

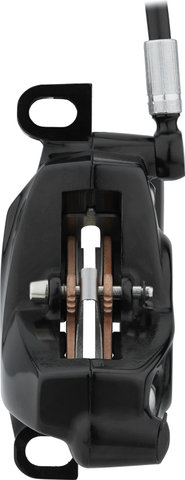

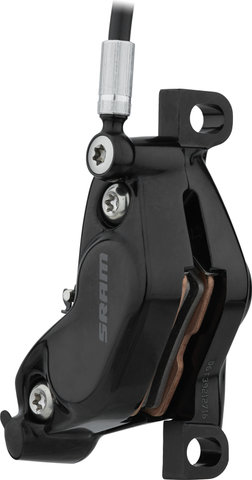

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

sintered metal

Design:

two-part

Calliper Material:

aluminium

Piston Material:

composite

Hose Connection:

banjo

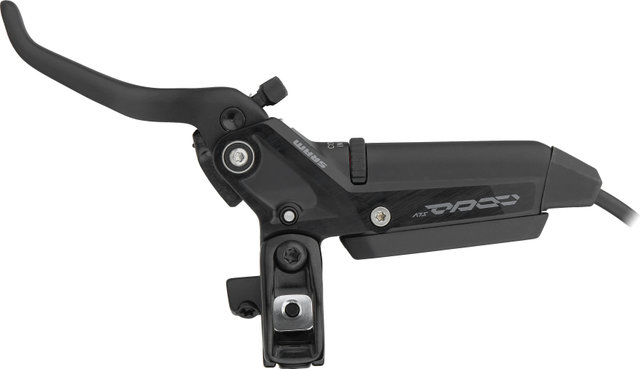

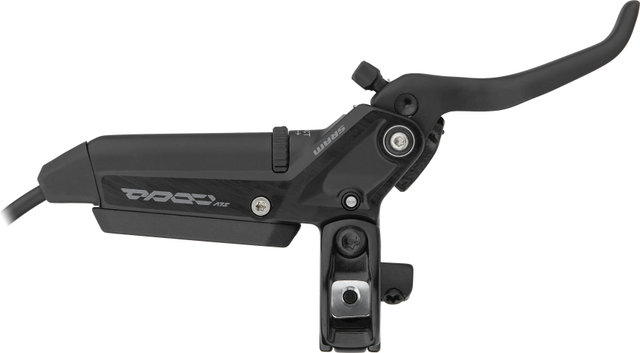

Technical Information - Lever:

Adjustment Options:

Grip width adjustment (tool-free), pressure point adjustment

Mount:

Matchmaker X

Design:

Flip-Flop (without specific side)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Features:

• powerful four-piston brake in Stealth design for enduro and gravity use
• also suitable for e-bikes
• Stealth design to match AXS components
• with metallic brake pads for high braking force and durability
• brake hose closer to the handlebars due to optimised housing
• cartridge bearings at the lever pivot point for precision braking feel and low fatigue
• tool-free grip adjustment
• Contact Point Adjustment
• easy bleeding thanks to Bleeding Edge
• perfect dosage with SwingLink technology
• forged aluminium caliper and brake lever housing
• stainless steel brake caliper bolts
• recommended brake rotor 1-piece HS2

Technology:

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

SwingLink™
If you pull the SRAM brake lever, you will notice the difference immediately. A shorter idle travel and optimized brake pad actuation. Due to the cam design, a shorter lever travel is necessary to push the brake pads towards the brake rotor. It's nice, but for perfect braking performance, it takes more than just power. Because you need control. Many braking systems offer a shorter stroke - but at the expense of modulation. SwingLink solves this problem with its special cam shape. When the brake pads touch the brake rotor, the force is modulated, thus avoiding the " on-off" brake feeling. This creates the perfect balance between power and precision.

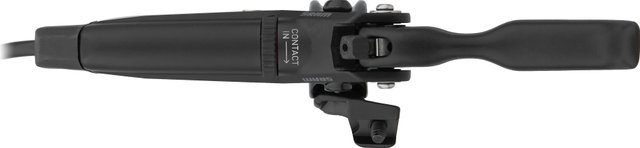

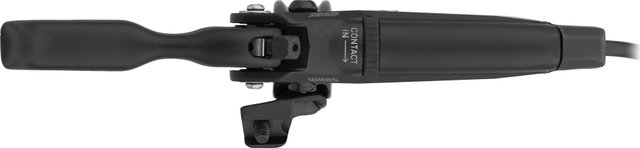

Contact Point Adjustment
Some people like the immediate power transmission of a short lever travel. Others, however, prefer the feeling of a longer lever travel. With the contact point adjustment you can determine the position where your fingers should be when the brakes are actuated. This way, you can quickly and easily adjust the feel of your brakes without having to move the pads. In addition, both brake levers can be adjusted so that they feel exactly the same.

Bleeding Edge™
Bleeding Edge technology allows for quick and easy brake bleeding. Thanks to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Manufacturer Numbers:

Front:

00.5018.228.000

Rear:

00.5018.228.001

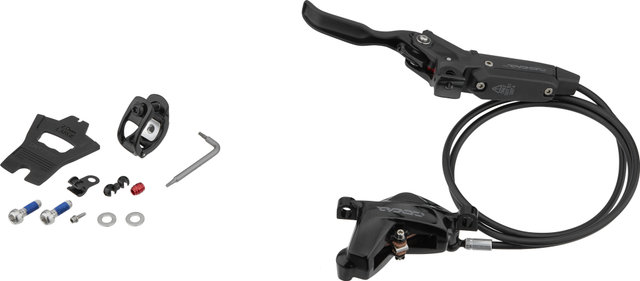

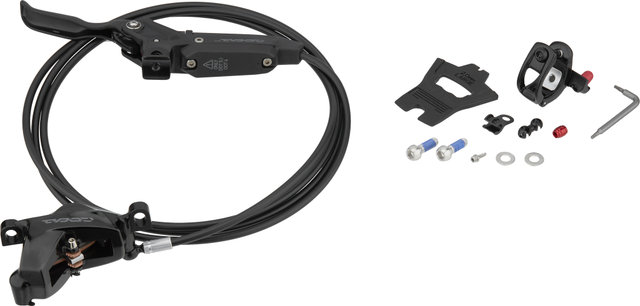

Contents:

• 1 x SRAM Code Silver Stealth disc brake (front wheel or rear wheel)
• 1 x SRAM brake hose, 950 mm (front) or 2000 mm (rear)
• 1 x pair SRAM metal brake pads
• 1 x SRAM Matchmaker X clamps
• 1 x SRAM pad spacer
• 2 x bolts
• 2 x washers
• 1 x Torx key
• 1 x insert
• 1 x olive
• 1 x S-hook
• 1 x cable guide clip for stem mounting
