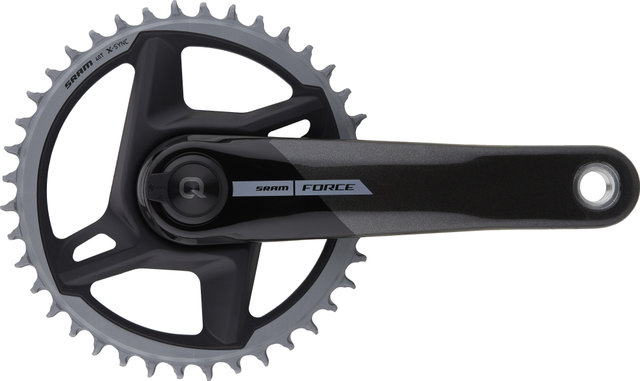

SRAM Force 1 D2 AXS DUB DM 1x12-speed Carbon Powermeter Crankset

The Force 1 D2 AXS Wide DUB DM 1x12-speed carbon crankset by SRAM with power measurement for road bikes and more

This SRAM Force 1 D2 AXS DUB DM power meter crankset with carbon arms is equipped with left-side power measurement and is mainly suitable for a 1x12-speed drivetrain on road bikes as well as triathlon bikes. The proven QUARQ technology scores with accuracy, the data of the power meter can be evaluated with the AXS app. The shiny detail around the logo and series name attracts attention without being too obtrusive. The chainring is attached via Direct Mount. Thanks to DUB technology, the crankset is extremely durable and perfectly matched to DUB bottom brackets.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Application:

Road, Triathlon & Time Trial, Cyclocross, Gravel

Type:

crankset with power meter (left)

Compatibility:

1x12-speed

Chainring Mount:

Direct Mount

Technical Information:

Series:

Force

Crank Arm Material:

carbon

Chainring Material:

aluminium

Gradation:

40-tooth

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Chainline:

45.0 mm

Q-Factor:

145 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

Road Wide bottom bracket

Tolerance:

+/- 3%

Point of Measurement:

crank axle

Power Source:

- 1 x AAA lithium battery

Battery Life:

> 400 hours

Data Collected:

Power, cadence, torque (left)

Waterproof:

IPX7

Data Transfer:

Bluetooth, ANT+

Compatibility:

• Over Locknut Dimension: 135 mm, 142 mm

Features:

• 1x12-speed crankset with carbon arms and power meter for road bikes
• discreet design with iridescent logo underneath
• DUB-PWR axis unit measures left-hand power to determine total wattage
• proven reliability and accuracy with QUARQ technology
• wide: 5 mm longer axle, chainline shifted outwards especially for bikes with wide gravel tyres
• energy display (total power), calibration, battery status display via SRAM AXS app
• long battery life covers an entire season
• user-replaceable battery
• IPX7 waterproof up to 1 metre for 30 minutes
• light: less than 40 g heavier than standard crankset
• good chain retention with X-Sync chainring
• Direct Mount assembly, thus lighter and stiffer chainring possible
• direct, precise shifting
• durable and simple thanks to DUB technology

Technology:

DUB™
The unit of crankshaft and bottom bracket is the heart of the DUB technology. Stiffness meets durability. SRAM has gone a step further and made everything even easier and better. It is mainly the system approach through the integration of chainring, crank, spindle and bottom bracket that means better drivetrain performance.

X-Sync™
The X-Sync tooth design is characterised by long, rounded and slanted tooth edges with a narrow profile. Derailleur pulleys with X-Sync technology support the chain guide and remain unaffected by dust and mud.

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Manufacturer Numbers:

165.0 mm 40 tooth:

00.3018.332.000

170.0 mm 40 tooth:

00.3018.332.002

172.5 mm 40 tooth:

00.3018.332.003

175.0 mm 40 tooth:

00.3018.332.004

Contents:

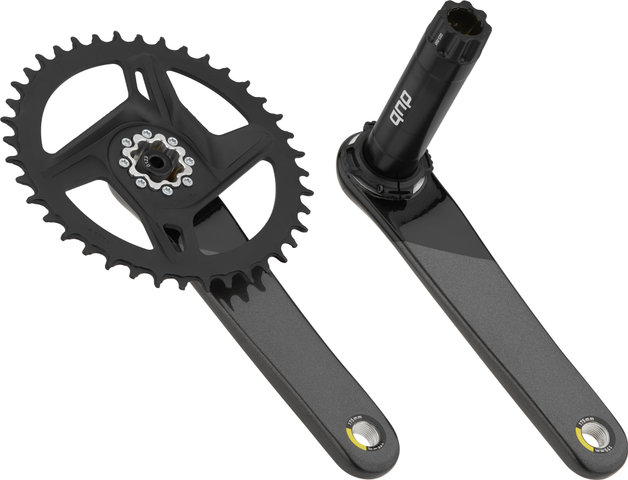

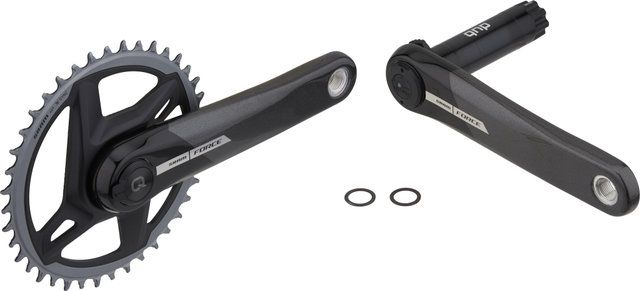

• 1 x SRAM Force 1 D2 AXS DUB DM 1x12-speed Carbon power meter crankset
• 1 x SRAM chainring
• 2 x SRAM pedal spacers
