SRAM Force D2 AXS DUB Power Meter Upgrade Kit

The SRAM Force AXS DUB upgrade kit for conversion to a power meter

The Force D2 AXS DUB upgrade kit from SRAM includes the left crank arm with power meter axle and is visually impressive with its discreet Force design and dazzling logo. The kit adds left-hand power measurement to your crank, utilising proven QUARQ technology. The measuring unit is hidden in the crank axle and reliably protected from water. In combination with your DUB bottom bracket, you get a durable unit with an impressive performance. Overall, the upgrade means a negligible additional weight of just under 40 g. The life of the AAA lithium battery, which you can easily replace yourself, is over 400 hours and thus covers a whole season.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road, Cyclocross, Gravel

Type:

cranks with power meter (left)

Compatibility:

12-speed

Chainring Mount:

SRAM Direct Mount (8-bolt)

Technical Information:

Series:

Force

Crank Arm Material:

carbon

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

SRAM Road DUB and SRAM Wide DUB|title=SRAM Road Wide DUB%}

Tolerance:

+/- 3%

Point of Measurement:

crank axle

Power Source:

1 x AAA lithium battery

Battery Life:

400 h+

Data Collected:

power (left side)

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Features:

• carbon crank arm with power meter for road bikes
• discreet design with iridescent logo underneath
• DUB-PWR axis unit measures left-hand power to determine total wattage
• proven reliability and accuracy with QUARQ technology
• energy display (total power), calibration, battery status display via SRAM AXS app
• long battery life of over 400 hours covers an entire season
• battery easily replaceable
• IPX7 waterproof up to 1 metre for 30 minutes
• light: less than 40 g heavier than standard crankset
• durable and simple thanks to DUB technology

Technology:

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

DUB
The unit of crankshaft and bottom bracket is the heart of the DUB technology. Stiffness meets durability. SRAM has gone a step further and made everything even easier and better. It is mainly the system approach through the integration of chainring, crank, spindle and bottom bracket that means better drivetrain performance.

Manufacturer Numbers:

165.0 mm:

00.3018.362,000

170.0 mm:

00.3018.362,002

172.5 mm:

00.3018.362,003

175.0 mm:

00.3018.362,004

Contents:

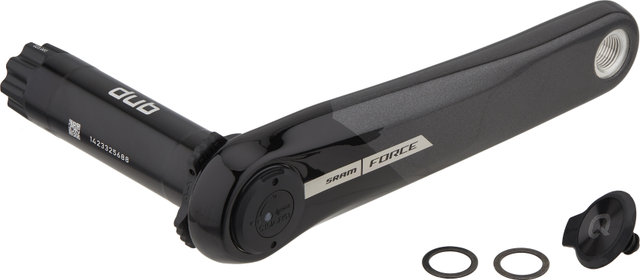

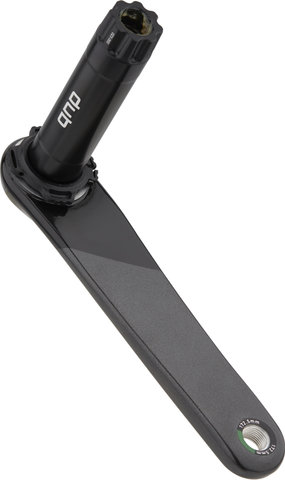

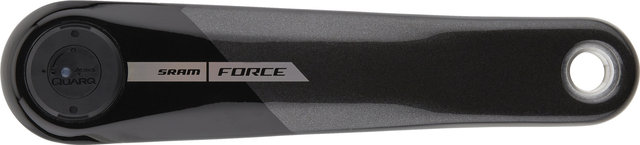

SRAM Force D2 AXS DUB Power Meter Upgrade Kit, consisting of:

• 1 x SRAM Force D2 left crank arm with power meter axle
• 1 x logo plug
• 1 x AAA lithium battery
• 2 x pedal spacers
