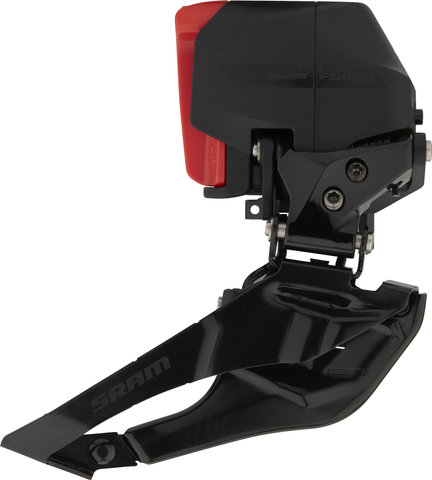

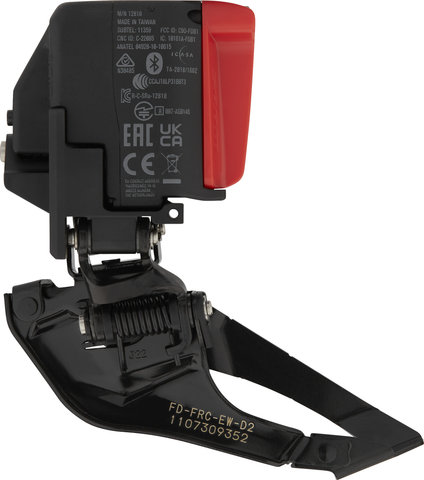

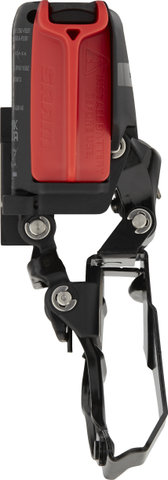

SRAM Force D2 AXS Wide 2x Front Derailleur

SRAM's Force D2 AXS Wide front derailleur shifts cleanly on the 2x gravel drivetrain

This SRAM Force D2 AXS electronic front derailleur follows the chainline of wider wide cranks and shifts accurately and smoothly on your 2x gravel bike. It does not need a cable at all - it is best to order a rechargeable battery directly. Thanks to a larger distance to the centre of the frame, the front derailleur is not in the way of wider tyres, such as those used for gravel biking. It is perfectly geared to a chainring combination of 30 and 43 teeth. The eTap shifting logic delivers uncomplicated, intuitive shifting. With the Yaw™ technology, no adjustment is necessary and the shifting operations are carried out directly and reliably. Do you feel like leaving familiar paths? Then this front derailleur has to belong to your equipment.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Force

Application:

Gravel, Cyclocross, Road

Gearing:

2x (combined w/ 12-speed)

Chainstay Angle:

61 - 66°

Chainline:

47.5 mm

Chainring Size (max.):

43-tooth

Capacity:

13-tooth

Movement:

down-swing

Mount:

braze-on

Compatibility:

SRAM Wide 2x12-speed groupsets

Technical Information:

Outer Body Material:

aluminium

Inner Body Material:

aluminium

Cage Material:

aluminium

Features:

• 2x front derailleur for 2x12-speed drives with wide set-up for gravel bikes
• chainline shifted outwards, thus high tyre clearance up to 700 x 45c or 27.5 x 2.1"
• classic SRAM Yaw cage technology with optimised architecture for a new chainring combination
• easy personalisation with SRAM AXS

Technology:

eTap™
SRAM's eTap is a simple, unambiguous and intuitive shifting logic. With the shift lever on the left-hand side you move the rear derailleur inwards to a larger sprocket, with the shift lever on the right-hand side you move the derailleur outwards to a smaller sprocket. With the shift lever pressed down, you can directly shift several gears. Pressing both shift levers at the same time causes a front derailleur movement in 2x shifting systems.

AXS™
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Yaw™
The Yaw technology allows trim-free shifting, as the front derailleur cage describes an arc and is therefore at a constant angle to the chain. Shifting transitions are thus more direct and precise, providing unprecedented performance when shifting up front.

Manufacturer Number:

00.7618.177.000

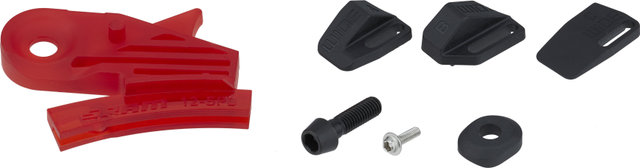

Contents:

• 1 x SRAM Force D2 AXS Wide 2x front derailleur
• 1 x SRAM bolt
• 1 x SRAM Wide spacer
• 3 x SRAM Wide adapter wedges
• 1 x SRAM screw
• 1 x SRAM battery cover

Order Together:

• SRAM battery for eTap / AXS
