SRAM Force D2 eTap AXS HRD Disc Brake with Shift/Brake Lever

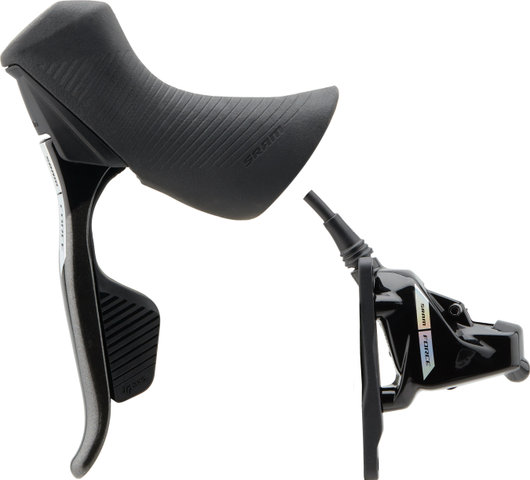

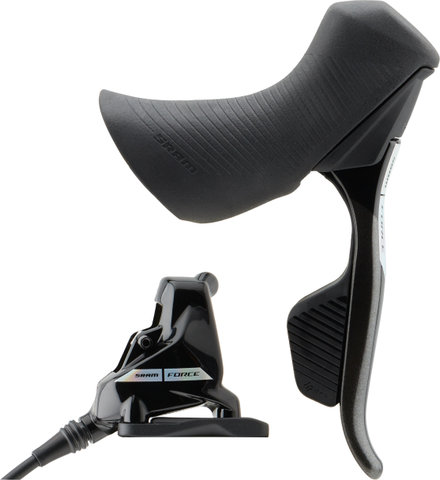

The SRAM Force D2 eTap AXS HRD disc brake with carbon shift/brake lever

The SRAM Force D2 eTap AXS hydraulic disc brake with flat mount comes with carbon brake levers and is suitable for bikes with dropbars. Colourful shimmering design elements on the brake lever and caliper provide the right amount of glamour. The gears are radio-controlled, so there is no need to lay shifter cables and you can also use a cassette with MTB gear ratio on a gravel bike without any problems. The revised shape of the grips together with the adjustable width ensure that your hands feel comfortable on the cockpit. The textured surface of the grip rubbers and gear lever offers high control. With the help of the AXS app, you can adjust the shifting behaviour individually. The intuitive eTap shift logic, where you upshift on one side and downshift on the other, is simple and straightforward.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Force

Application:

Road, Gravel, Cyclocross

Gearing:

1x/2x, 12-speed

Shifting System:

wireless

Type:

hydraulic, 2 pistons

Actuation:

DOT 5.1

Hose Length (Front/Rear):

1300 mm / 2000 mm

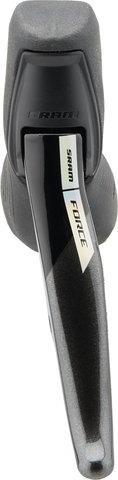

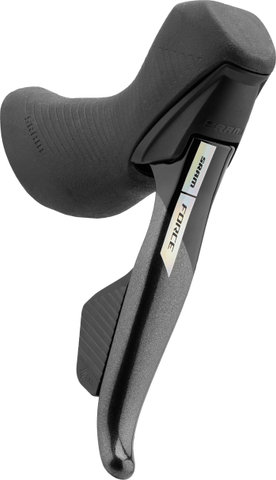

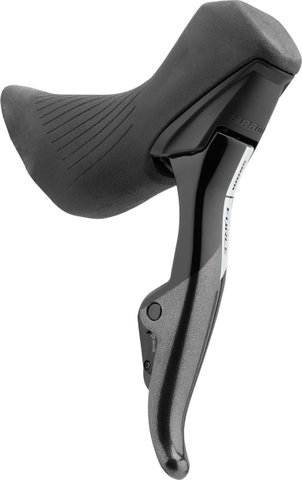

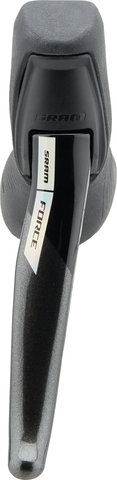

Technical Information - Shift/Brake Lever:

Brake Lever Material:

carbon

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

Reach Adjust

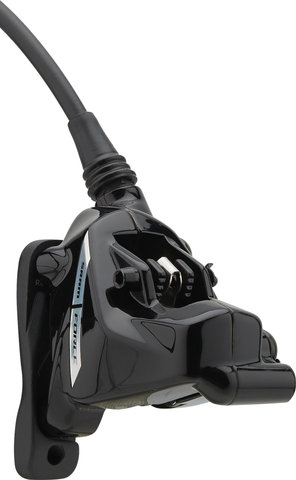

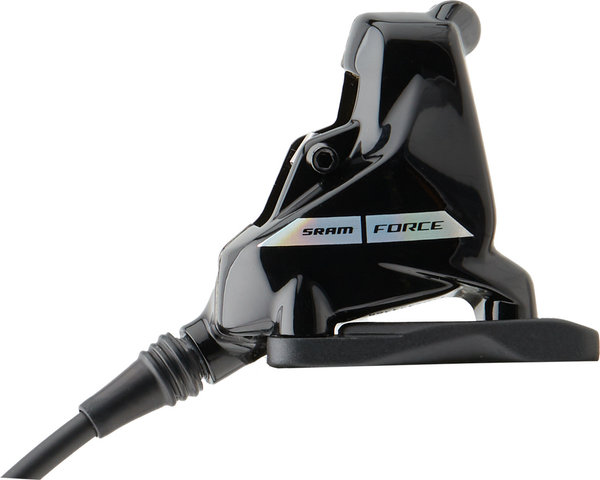

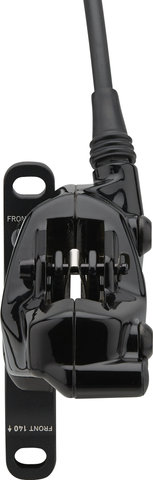

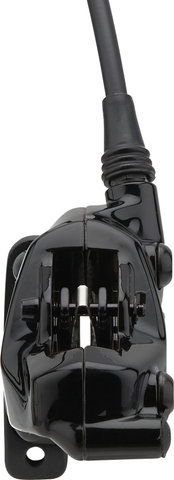

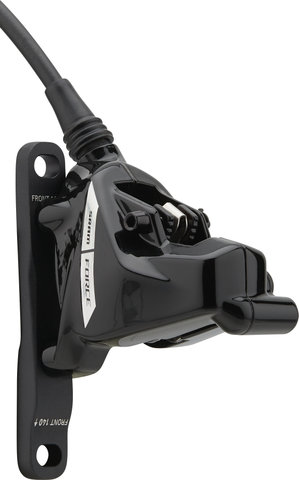

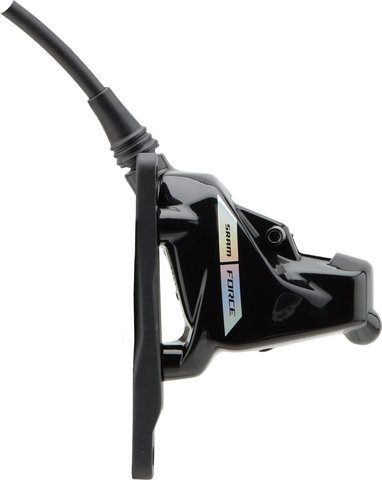

Technical Information - Caliper:

Mount:

flat mount

Pads:

organic

Design:

two-part

Features:

• hydraulic road disc brake for electronic gears with carbon brake lever
• discreet design with dazzling elements on brake lever and caliper
• optimised handle shape for secure grip of different hand sizes
• shift lever and rubber grips structured to counteract slipping in bumpy terrain
• carbon brake lever for weight savings
• composite shift lever
• 20 mm offset
• with stainless steel screws
• reach adjust
• power supply of the shifter for communication with the rear derailleur via a CR2032 battery

Technology:

eTap™
SRAM's eTap is a simple, unambiguous and intuitive shifting logic. With the shift lever on the left-hand side you move the rear derailleur inwards to a larger sprocket, with the shift lever on the right-hand side you move the derailleur outwards to a smaller sprocket. With the shift lever pressed down, you can directly shift several gears. Pressing both shift levers at the same time causes a front derailleur movement in 2x shifting systems.

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. The grip width adjustment makes it child's play to adjust the lever - for maximum control.

Bleeding Edge
Bleeding Edge technology allows quick and easy bleeding of the brakes. Due to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake calliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Stealth-a-majig™
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

Manufacturer Numbers:

Front:

00.7918.213.002

Rear:

00.7918.213.001

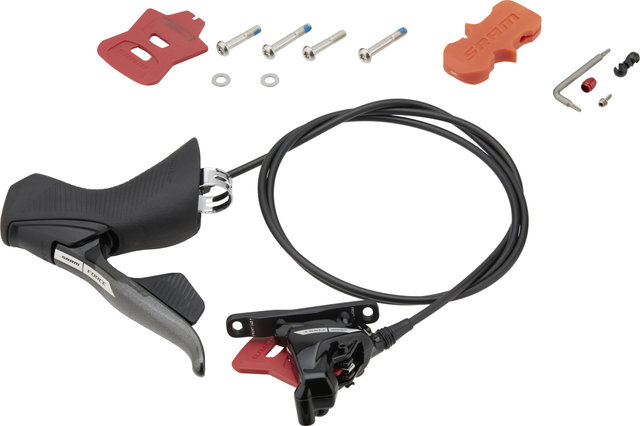

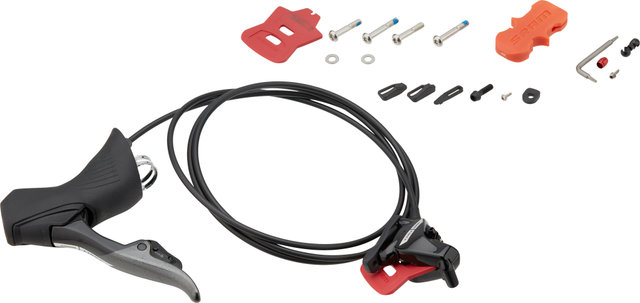

Contents:

• 1 x SRAM Force D2 eTap AXS HRD disc brake
• 1 x SRAM Force D2 eTap AXS HRD shift/brake lever with battery
• 1 x pair SRAM organic brake pads
• 1 x SRAM brake hose, 1300 mm (front) or 2000 mm (rear)
• 1 x SRAM pad spacer
• 1 x SRAM bleed block

Order Together:

Optional accessories:
SRAM eTap AXS Wireless Blips Satellite Shifters
