SRAM G2 RSC Disc Brake Set

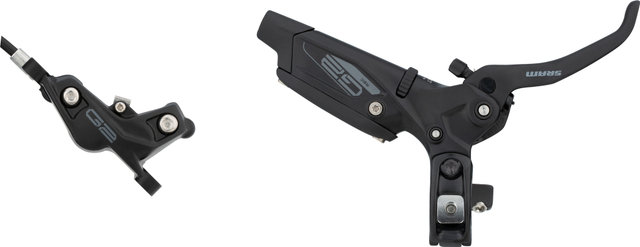

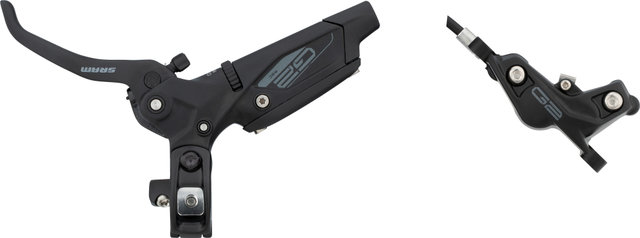

The SRAM G2 RSC Front+ Rear Disc Brake Set - Four pistons, multiple adjustment options

The G2 RSC disc brake set for front and rear wheels by SRAM offers grip width and pressure point adjustment with precision dosing in enduro and all-mountain use. Four pistons deliver strong braking power. Contact Point Adjustment allows you to determine exactly after which lever stroke the brakes should engage. SwingLink™ technology ensures precision brake control in any situation, while Reach Adjust lets you easily adjust the grip width to your hand size without using tools. Bleeding Edge Technology makes bleeding particularly easy work.

Specifications:

Series:

G2

Application:

All Mountain, Enduro

Type:

hydraulic, 4 pistons

Actuation:

DOT 5.1

Hose Length (Front/Rear):

950 mm / 2000 mm

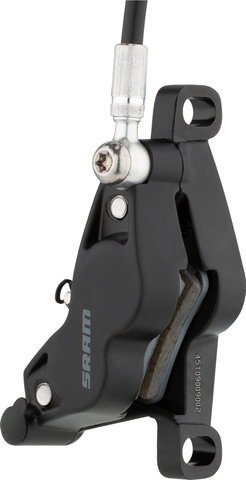

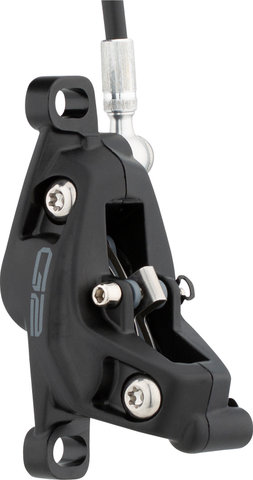

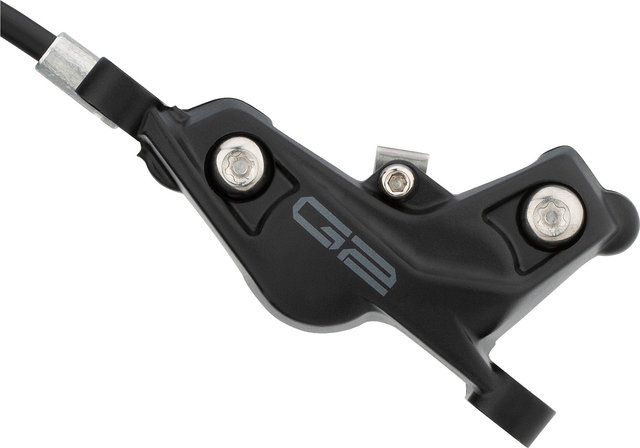

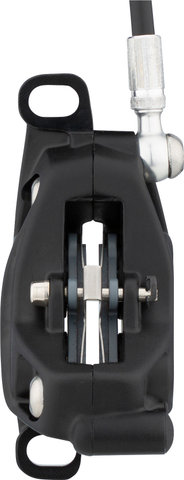

Technical Information - Caliper:

Caliper Mount:

post mount

Pistons:

4

Pads:

organic

Design:

two-part

Calliper Material:

Aluminium

Hose Connection:

banjo

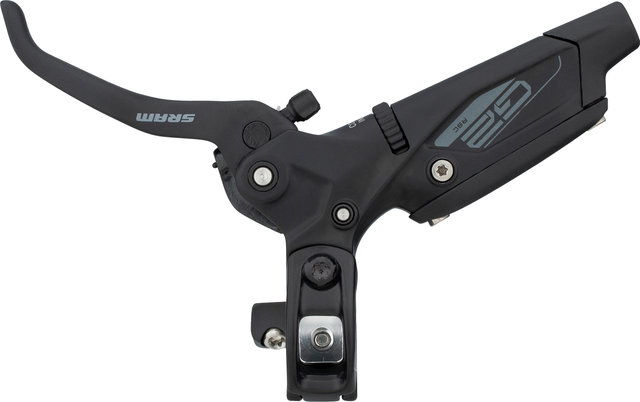

Technical Information - Lever:

Adjustment Options:

Grip width adjustment (tool-free), pressure point adjustment

Mount:

Matchmaker X

Design:

Flip-Flop (without specific side)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Features:

• stainless steel hardware
• caliper features a high degree of stiffness
• forged aluminium caliper and brake lever housing
• plain bearing bush at lever's fulcrum
• easy to install
• tool-free grip adjustment
• Contact Point Adjustment
• easy bleeding thanks to Bleeding Edge
• perfect dosage with SwingLink technology
• recommended brake rotor Centerline 1-piece

Technology:

DOT 5.1:
Heat is the enemy of every braking system. Through better heat management, your journey will also be much safer. It was found that DOT 5.1 takes three times longer to reach boiling point than DOT 4. This ensures smooth and undiminishing braking power under even more extreme conditions.

Reach Adjust:
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

SwingLink™:
If you pull the SRAM brake lever, you will notice the difference immediately. A shorter idle travel and optimized brake pad actuation. Due to the new cam design, a shorter lever travel is required to push the brake pads towards the brake rotor. It's nice, but for perfect braking performance, it takes more than just power. Because you need control. Many braking systems offer a shorter stroke - but at the expense of modulation. SwingLink solves this problem with its special cam shape. When the brake pads touch the brake rotor, the force is modulated, thus avoiding the " on-off" brake feeling. This creates the perfect balance between power and precision.

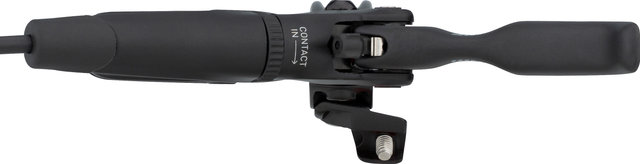

Contact Point Adjustment:
Some people like the immediate power transmission of a short lever travel. Others, however, prefer the feeling of a longer lever travel. With the contact point adjustment you can determine the position where your fingers should be when the brakes are actuated. This way, you can quickly and easily adjust the feel of your brakes without having to move the pads. In addition, both brake levers can be adjusted so that they feel exactly the same.

Bleeding Edge™:
Bleeding Edge technology allows for quick and easy brake bleeding. Thanks to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Manufacturer Numbers:

Front:

00.5018.161.000

Rear:

00.5018.161.001

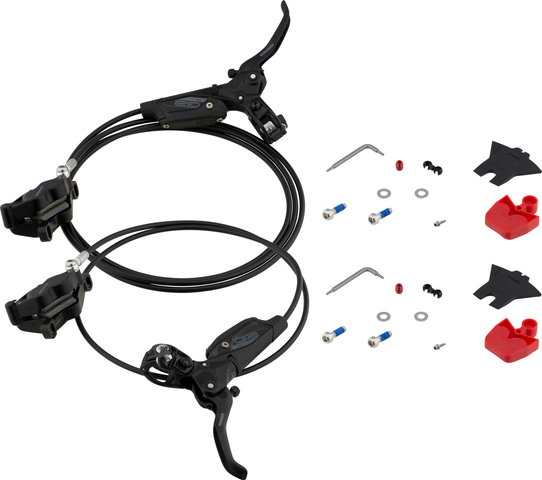

Contents:

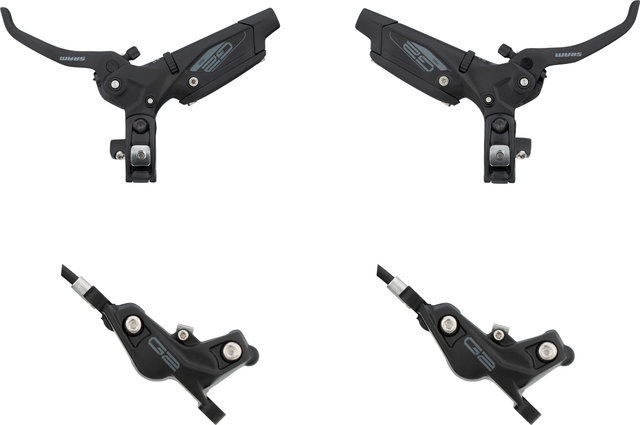

• 2 x SRAM G2 RSC Disc Brake (front and rear wheel)
• 1 x SRAM brake hose, 950 mm (front)
• 1 x SRAM brake hose, 2000 mm (rear)
• 2 x pairs SRAM organic brake pads
• 2 x SRAM Matchmaker X clamps
• 2 x SRAM pad spacers
• 2 x SRAM bleed block
• 2 x SRAM bolt
• 2 x SRAM washers
• 2 x SRAM Torx keys
• 2 x SRAM insert pins
• 2 x SRAM olives
• 2 x SRAM hose clip
