SRAM GX Eagle Boost DUB DM 12-speed Crankset

The GX Eagle DUB DM Boost 12-speed crankset by SRAM stands for carefree pedalling

This GX Eagle crankset by SRAM with direct mount and forged aluminum cranks is designed for Boost frames in conjunction with a 12-speed drivetrain. With the DUB technology, the crank optimally interact with the DUB bottom brackets and thus reliably delivers constant, harmonious performance. Each Eagle chainring can be mounted quickly and easily on the direct mount bracket. The material thickness of each individual tooth has been precisely thought out and the chainring also interlocks perfectly with the chain thanks to the X-Sync 2™ tooth profile. You give everything on every ride and don't want to worry? Then the GX Eagle Boost crank set is made for you!

Specifications:

Application:

Cross Country, All Mountain, Enduro

Compatibility:

1x11-speed, 1x12-speed

Chainring Mount:

SRAM Direct Mount

Technical Information:

Series:

GX Eagle

Crank Arm Material:

Aluminium

Chainring Material:

Aluminium

Gradation:

32-tooth

Crank Arm Length:

165.0 mm, 170.0 mm, 175.0 mm

Chainline:

52.0 mm (Boost)

Axle Diameter:

28.99 mm

Compatible BSA Shell Width:

68/73 mm

Recommended Bottom Bracket:

DUB BSA 68/73, DUB Pressfit 89.5/92 mm, DUB PF30 73 mm, DUB BB30 73 mm

Features:

• optimum chain control thanks to X-SYNC 2 technology
• Direct-Mount chainring mount compatible with all Eagle chainrings
• colour matching all Eagle components

Technology:

X-Sync 2™:
X-Sync 2 is the latest development in X-Sync technology. The high, angular and at the same time narrow tooth profile of the chainring with rounded edges increases chain tension and efficiency when pedalling. The life of the chainring is longer because X-Sync 2 reduces friction and the accumulation of dirt.

DUB:
The unit of crankshaft and bottom bracket is the heart of the DUB technology. Stiffness meets durability. SRAM has gone a step further and made everything even easier and better. It is the system approach through the integration of chainring, crank, shaft and bottom bracket that is decisive for better drivetrain performance.

Colour Index:

lunar:

dark grey

Manufacturer Numbers:

lunar / 165.0 mm 32 tooth:

00.6118.602.002

lunar / 170.0 mm 32 tooth:

00.6118.602.001

lunar / 175.0 mm 32 tooth:

00.6118.602.000

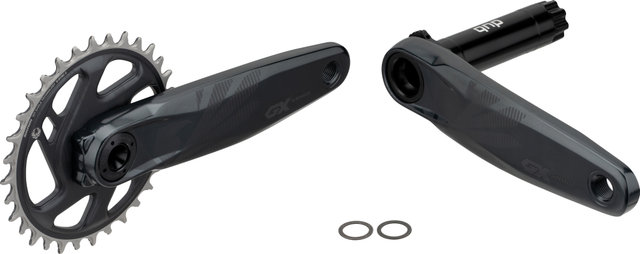

Contents:

• 1 x SRAM GX Eagle Boost DUB crankset
• 1 x SRAM 32-tooth chainring
• 2 x SRAM pedal spacers
• not incl. bottom bracket
