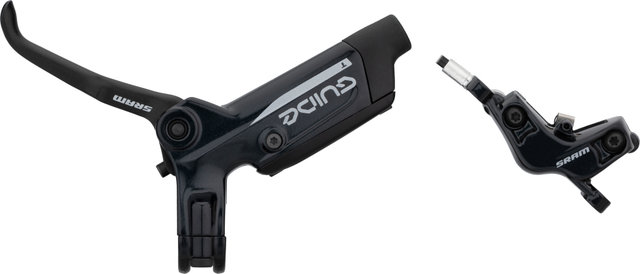

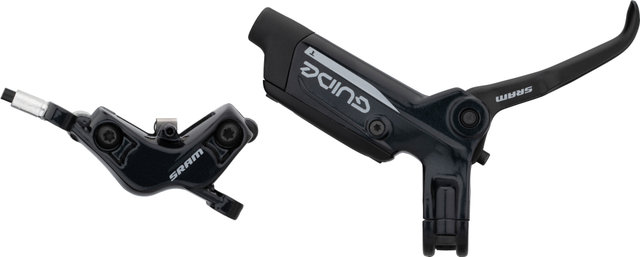

SRAM Guide T Disc Brake
Item number: 61928
Specifications:
- Series:
- Guide T
- Application:
- Trail, All Mountain, Freeride
- Type:
- hydraulic, 4 pistons
- Actuation:
- DOT 4
- Hose Length (Front/Rear):
- 950 mm / 1800 mm

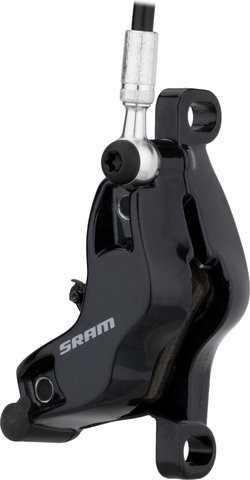

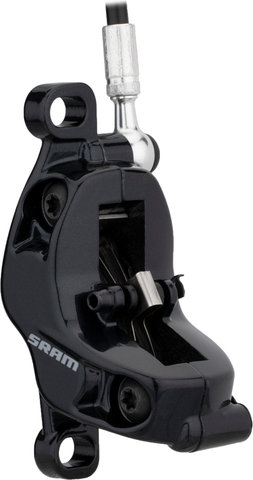

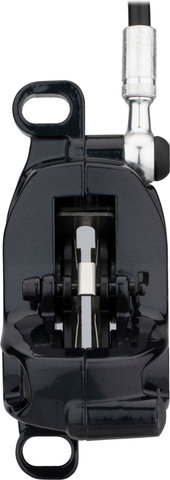

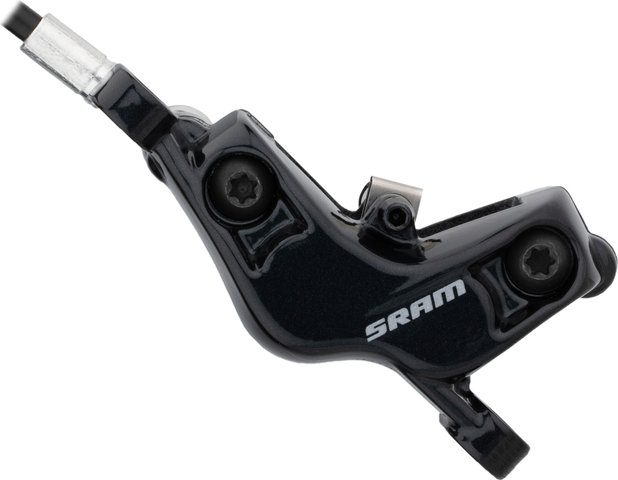

Technical Information - Caliper:
- Caliper Mount:
- post mount
- Pistons:
- 4
- Pads:
- organic
- Design:
- two-part
- Calliper Material:
- aluminium
- Hose Connection:
- banjo

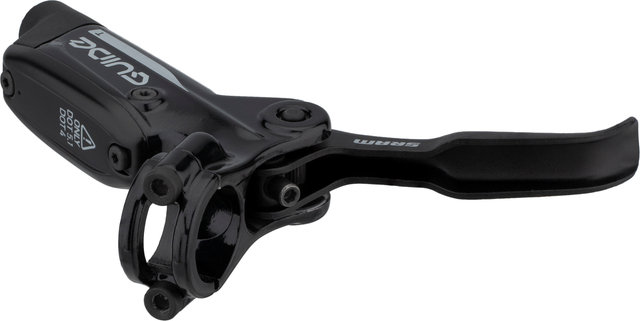

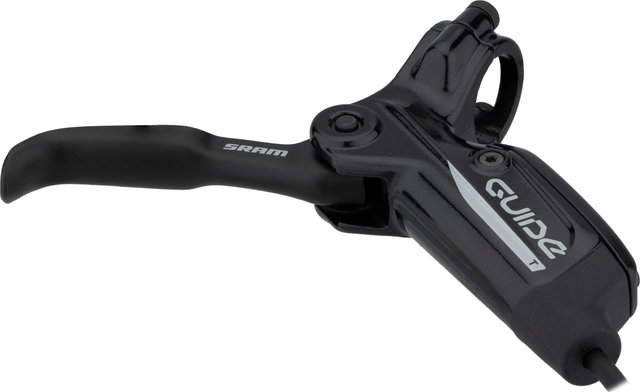

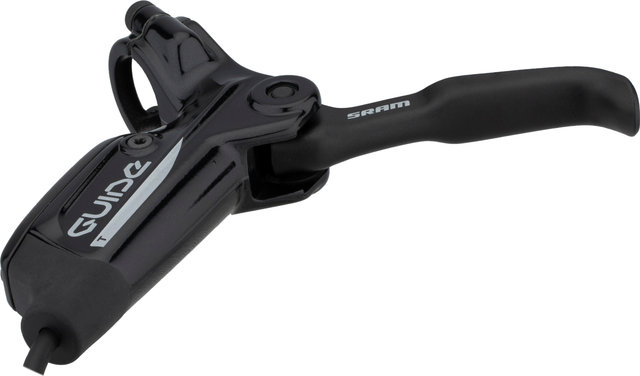

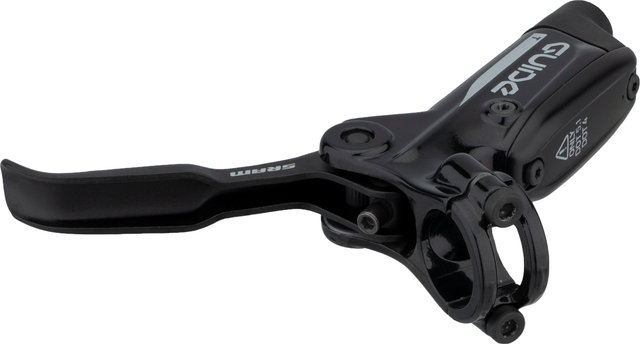

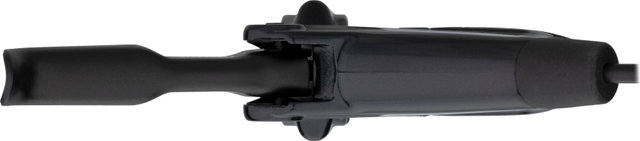

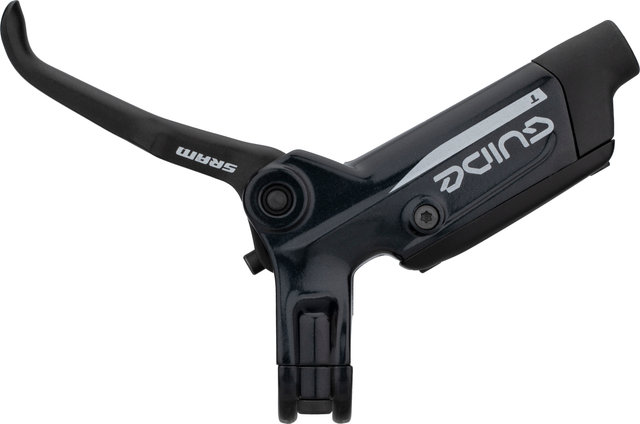

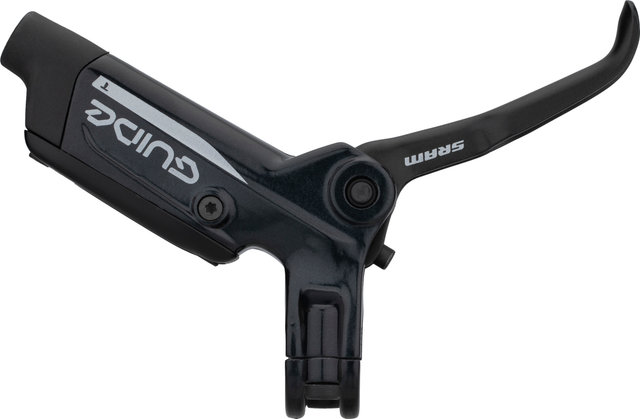

Technical Information - Lever:
- Adjustment Options:
- reach adjust
- Mount:
- clamp (split)
- Design:
- Flip-Flop (without specific side)
- Brake Lever Material:
- aluminium
- Brake Lever Housing Material:
- aluminium
- Hose Connection:
- straight
Features:
- MatchMaker compatible
- comes with S4 caliper with Bleeding Edge™ and Heat Shield technology
- possible to mount lever on both sides
- reach adjust with tools
Technology:
Bleeding Edge™:Bleeding Edge™ technology enables quick and easy brake bleeding. Thanks to the special fluid channel and specially designed bleeding vent, the fluid can be pumped through the caliper more easily. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.
TPC Plus™ (Timing Port Closure):
The synchronisation port of a hydraulic brake is the connection between the reservoir and the master cylinder bore. When the lever is operated, a cup seal passes through this area and closes the opening, putting the system under pressure. SRAM's new TPC Plus™ synchroniser port closure system features durable seals and an ultra-soft cylinder bore surface for reliable and consistent braking performance.
Expandable Bladder:
SRAM's brake lever design includes a new bladder shape that allows air bubbles to be regulated and reduced. The bladder is specially shaped to pump air out of the lever and transport the liquid to exactly where it is needed. The result is improved back pressure relief for reliable and consistent braking performance.
DirectLink™:
SRAM's DirectLink™ lever design provides a solid, positive brake feel as soon as the brake lever is pulled - an uncompromising solution for precise control.
Models:
front / black:- Type: front
- Brake Hose Length: 950 mm
- Colour: black
- Manufacturer Number: 00.5018.118.000
rear / black:
- Type: rear
- Brake Hose Length: 1800 mm
- Colour: black
- Manufacturer Number: 00.5018.118.001

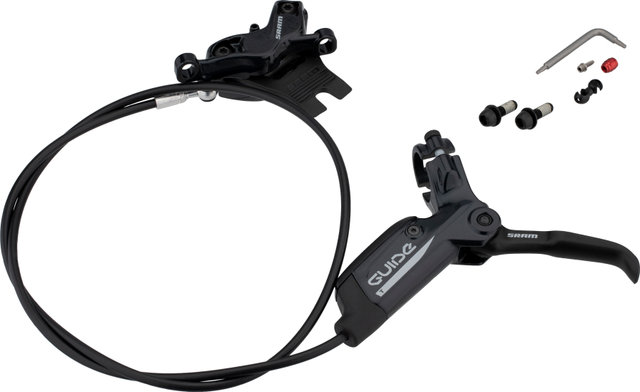

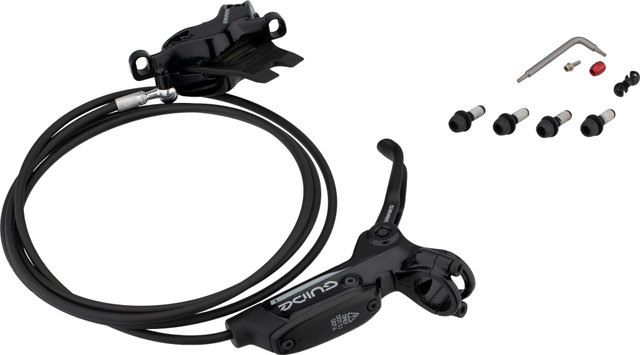

Contents:
- 1 x SRAM Guide T Disc Brake, filled and bled, ready for installation (front or rear wheel)
- 1 x pairs SRAM organic brake pads
- 1 x SRAM clamp
- 1 x SRAM pad spacer
- incl. olive + insert
- incl. bolts
- not incl. rotors (Centerline, 1-piece)
- not incl. adapter
