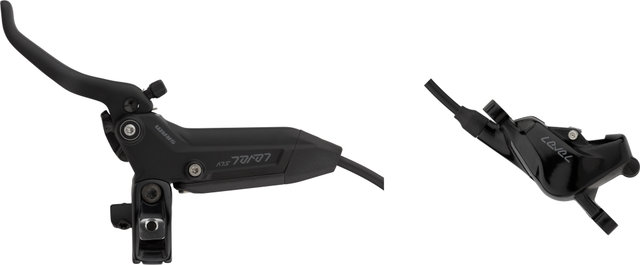

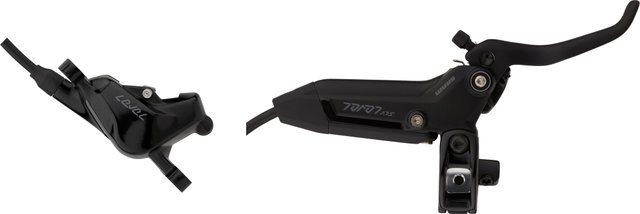

SRAM Level Silver Stealth 2-Piston Disc Brake

The Level Silver 2-Piston Disc Brake by SRAM in Stealth Design

The Level Silver disc brake from SRAM offers two pistons for use in cross-country and all-mountain terrain. The Stealth design is the perfect fit for your AXS cockpit. The lever design gives your cockpit a clean, sleek look. With the tool-free handle width adjustment, you can find the right distance for your hand size. The use of a cartridge bearing at the lever pivot point makes the lever movement particularly smooth, so you'll tire out less quickly.

Specifications:

Series:

Level

Application:

Cross Country, All Mountain

Type:

hydraulic, 2 pistons

Actuation:

DOT 4

Hose Length (Front/Rear):

950 mm / 2000 mm

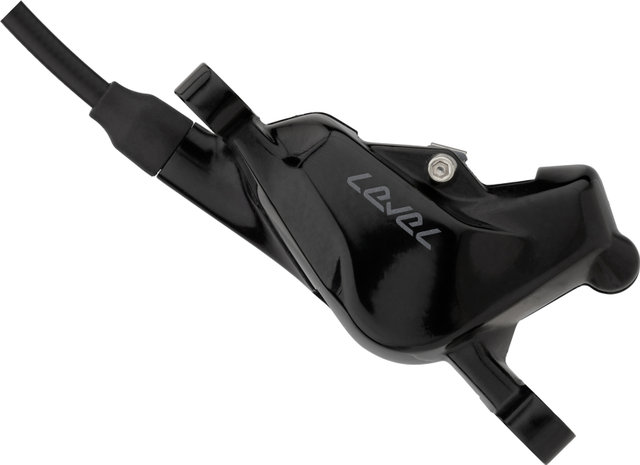

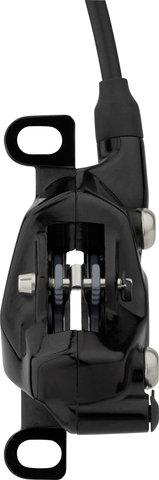

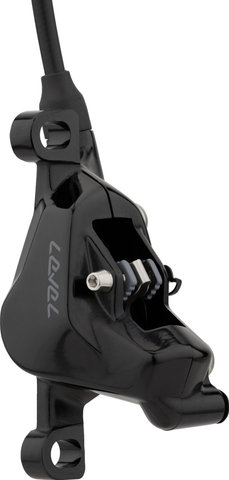

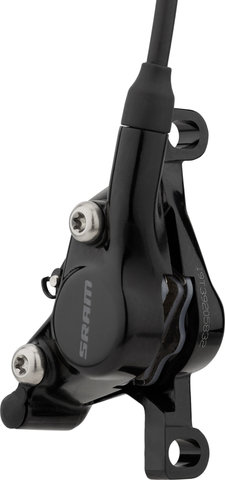

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

organic

Design:

two-part

Calliper Material:

aluminium

Piston Material:

composite

Hose Connection:

banjo

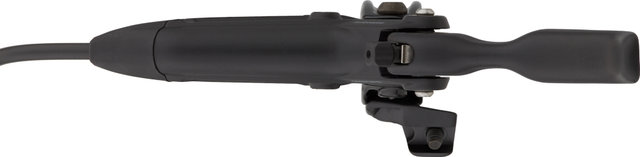

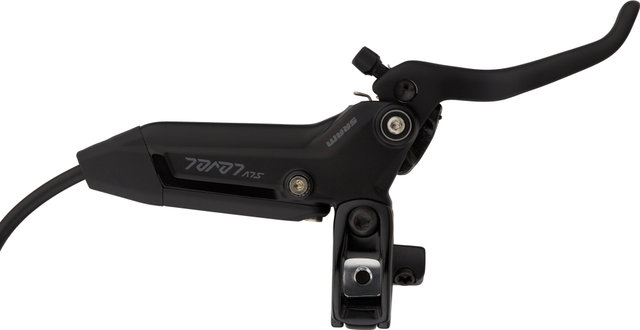

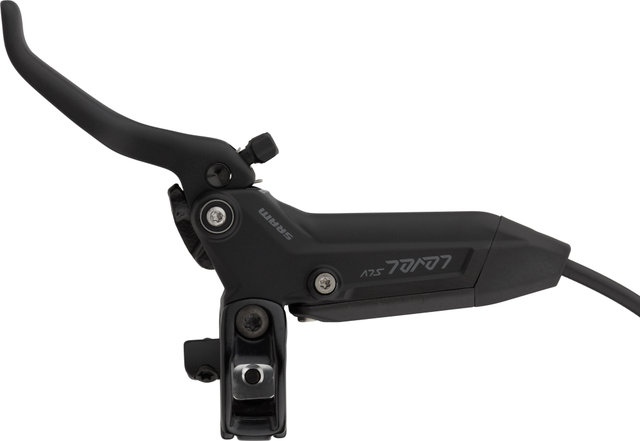

Technical Information - Lever:

Adjustment Options:

reach adjustment (without tools)

Mount:

Matchmaker X

Design:

Flip-Flop (without specific side)

Brake Lever Material:

carbon

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Features:

• four-piston brake for cross-country and all-mountain trails
• with two pistons lighter than four-piston variant
• Stealth design to match AXS components
• optimised lever design
• cartridge bearings at the lever pivot point for precision braking feel and low fatigue
• tool-free grip adjustment
• easy bleeding thanks to Bleeding Edge
• forged aluminium caliper and brake lever housing
• stainless steel brake caliper bolts
• recommended brake rotor 1-piece HS2

Technology:

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

Bleeding Edge™
Bleeding Edge technology allows for quick and easy brake bleeding. Thanks to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Manufacturer Numbers:

Front:

00.5018.232.000

Rear:

00.5018.232.001

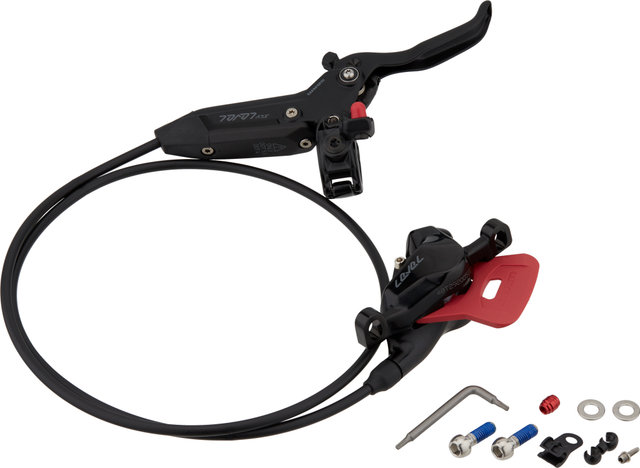

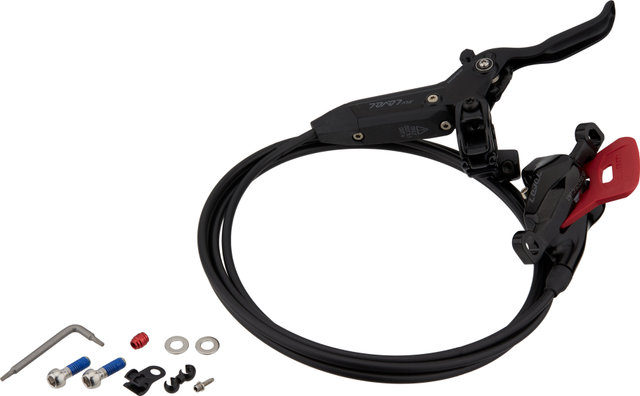

Contents:

• 1 x SRAM Level Silver Stealth 2-Piston disc brake (front wheel or rear wheel)
• 1 x SRAM brake hose, 950 mm (front) or 2000 mm (rear)
• 1 x pairs SRAM organic brake pads
• 1 x SRAM Matchmaker X clamps
• 1 x SRAM pad spacer
• 2 x bolts
• 2 x washer
• 1 x Torx key
• 1 x insert
• 1 x olive
• 1 x S-hook
• 1 x cable guide clip for stem mounting
