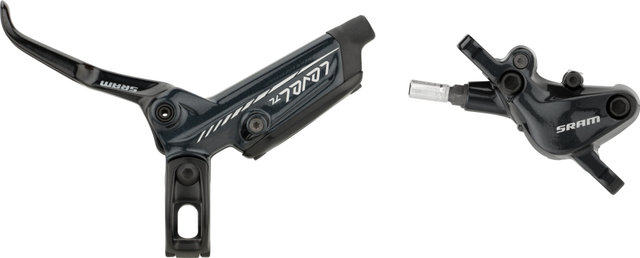

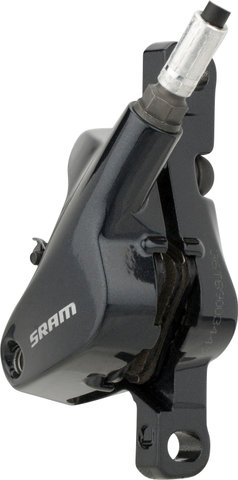

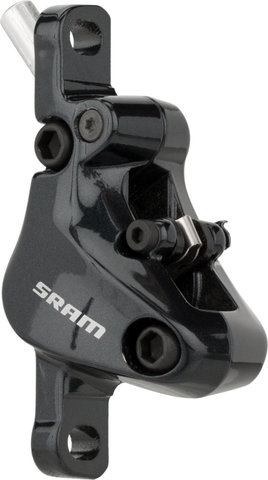

SRAM Level TL Disc Brake

Powerful performance in a lightweight package. Level TL packs the same performance optimised for XC and trail riding into a brake set that doesn't cost a fortune. The DirectLink™ lever with this brake is made of aluminium and the lever body contains the same technology as in the Level TLM, Level Ultimate and Guide brake series - for reliability and consistency.

Specifications:

Series:

Level TL

Application:

MTB, Trail, Cross Country

Pistons:

2 (21 mm)

Mount:

post mount (IS with adapter)

Actuation:

DOT 5.1

Brake Rotor:

not incl. (Centerline)

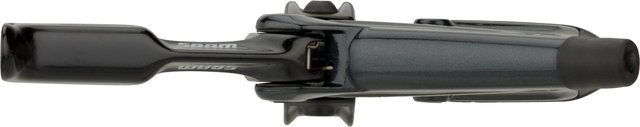

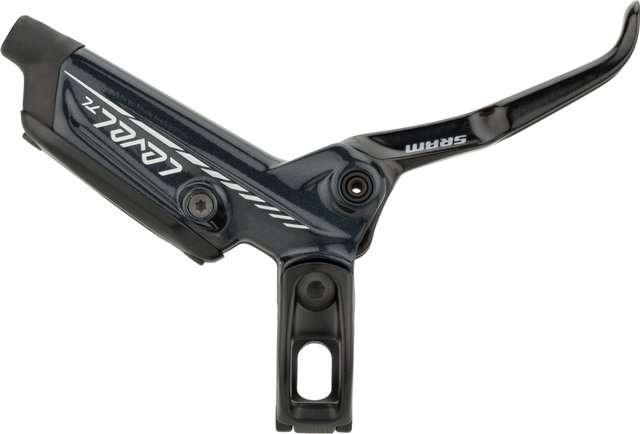

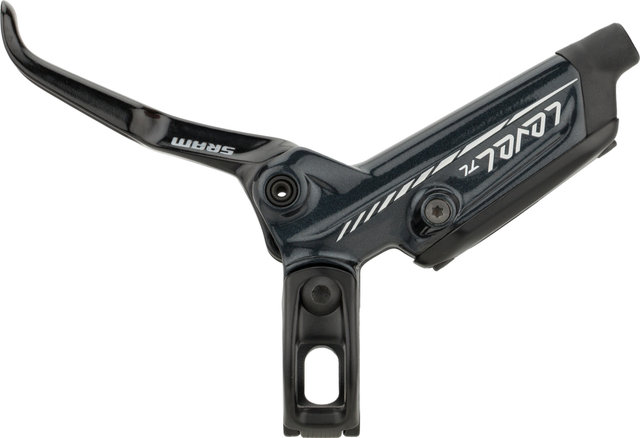

Brake Lever:

included

Type:

disc brake, hydraulic

Technical Information:

Brake Lever Material:

aluminium

Lever Body Material:

aluminium

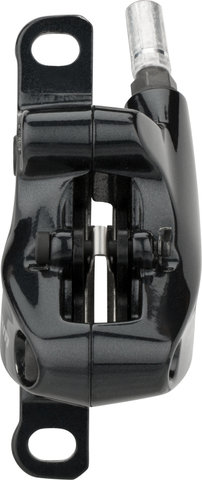

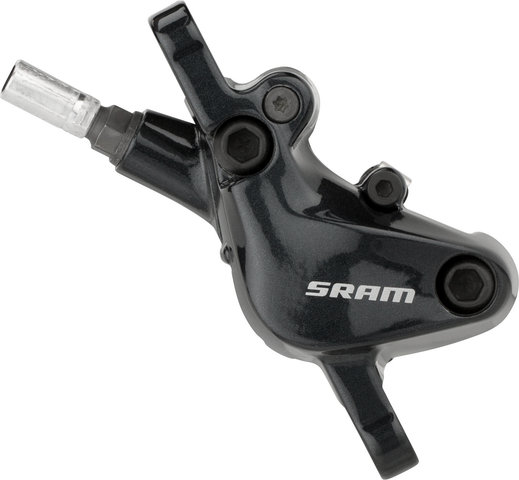

Calliper Material:

aluminium

Pads:

organic

Lever Mount:

right or left

Adjustment:

reach adjust (with tools)

Clamp:

split / Matchmaker X & MMX compatible

Front Hose Length:

950 mm

Rear Hose Length:

1800 mm

Technology:

Direct Link™, DOT 5.1, Expandable Bladder, Heat Shield, PiggyBack™ Reservoir, TPC Plus™

Features:

• based on the Guide (same pistons, seals, reservoir), but kept smaller

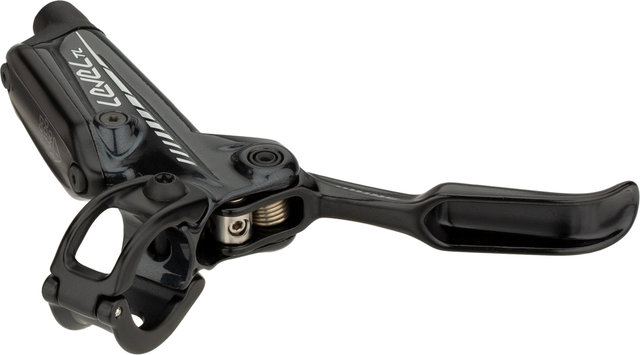

• small brake lever with DirectLink™
• same technologies as Level TLM and Level Ultimate

Technology:

DirectLink™:
SRAM's DirectLink™ lever design provides a solid, positive brake feel as soon as the brake lever is pulled - an uncompromising solution for precise control.

DOT 5.1:
Heat is the enemy of every braking system. Through better heat management, your journey will also be much safer. It was found that DOT 5.1 takes three times longer to reach boiling point than DOT 4. This ensures smooth and undiminishing braking power under even more extreme conditions.

Expandable Bladder:
SRAM's new brake lever design incorporates a new bubble shape to regulate and reduce air bubbles. The bladder is specially shaped to pump air out of the lever and transport the liquid to exactly where it is needed. The result is improved back pressure relief for reliable and consistent braking performance.

PiggyBack™ Reservoir:
The brake fluid reservoir in SRAM's current lever design is designed for optimum performance and easy handling. The PiggyBack™ reservoir offers a simple and safe solution for checking brake fluid and also allows the levers to be mounted on both sides - so you can swap your levers on the handlebars and brake as easily as on a motorbike.

TPC Plus™ (Timing Port Closure):
The synchronisation port of a hydraulic brake is the connection between the reservoir and the master cylinder bore. When the lever is operated, a cup seal passes through this area and closes the opening, putting the system under pressure. SRAM's new TPC Plus™ synchroniser port closure system features durable seals and an ultra-soft cylinder bore surface for reliable and consistent braking performance.

Models:

front / gloss black:

• Type: front
• Brake Hose Length: 950 mm
• Colour: gloss black
• Manufacturer Number: 00.5018.104.000

rear / gloss black:

• Type: rear
• Brake Hose Length: 1800 mm
• Colour: gloss black
• Manufacturer Number: 00.5018.104.001

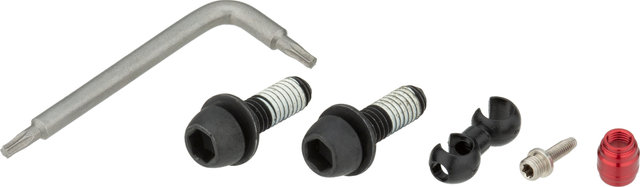

Contents:

• 1 x SRAM Level TL disc brake, mount ready, filled & bled (front or rear wheel)
• 1 x pairs SRAM organic brake pads
• 1 x SRAM clamp
• 1 x SRAM pad spacer
• incl. olive + insert
• incl. bolts
• not incl. brake rotor
• not incl. adapter
