SRAM Red E1 AXS HRD FM for 2x12 CL Groupset + Hammerhead Karoo

The SRAM Red AXS E1 HRD FM for 2x12-speed Center Lock groupset with Hammerhead Karoo GPS bike computer

The Red AXS E1 HRD FM groupset from SRAM with Red E1 2x12-speed drivetrain, hydraulic disc brakes and Hammerhead Karoo GPS bike computer is the ideal basis for your road bike. The rear derailleur and front derailleur are controlled wirelessly and ensure precise, fast gear changes, while the hydraulic disc brakes not only look good, but are also powerful. The levers are designed for different hand sizes and shapes and can be adapted to your needs in terms of reach and contact point. You can use the AXS app to customise the shifting behaviour and configure two additional buttons on the sides of the levers. With the Hammerhead Karoo GPS bike computer, you're ready for the road.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Red AXS E1 Groupset:

Series:

Red

Application:

Road

Shifters & Derailleurs:

2x, 12-speed (wireless)

Brakes:

disc, hydraulic (flat mount)

Hammerhead Karoo GPS Bike Computer:

Application:

Cycling

Maps:

pre-installed basic map, other maps available

Navigation:

map-based route navigation

Operation:

touchscreen, buttons

Speed:

GPS

Heart Rate:

Heat Rate Monitor (sold separately)

Cadence:

cadence sensor (optionally available from third-party suppliers)

Power Meter Compatibility:

yes

Accelerometer:

Yes (vertical movement)

Sensor Connectivity:

ANT+, Bluetooth

Data Transfer:

USB, ANT+, Wifi

Components:

Front Derailleur:

braze-on

Rear Derailleur:

medium cage (10-28 to 10-36)

Technical Information - Bike Computer:

Size:

61.7 mm x 102.8 mm x 21.1 mm

Display Size:

3.2"

Display Resolution (W x H):

480 x 800 pixels

Display:

multi-coloured

Power Input:

lithium-ion battery

Battery Life:

15+ hours in battery saving mode

Memory:

64 GB

Waterproof:

IP67

Satellite Systems:

GPS, Glonass, Galileo, Beidou, QZSS

Altimeter:

barometer

Compass:

magnetic

Alerts:

acoustic

Functions:

smartphone notifications

Features:

Red E1 AXS Groupset:

• rear derailleur and front derailleur for wireless 2x12-speed road drivetrain
• fast and precise rear derailleur with Orbit damping
• front derailleur with automatic trim and Yaw cage technology
• hydraulic road disc brakes with shift/brake levers
• Flattop chain with 114 links and PowerLock master link
• two-piece Paceline X center lock brake rotors with 160 mm diameter
• discreet design with polished brake calliper
• carbon brake lever
• optimised handle shape for secure grip of different hand sizes
• carbon lever blade for weight saving, 83 g lighter than its predecessor
• bite point and reach adjustment
• power supply of the shifter for communication with the rear derailleur via a CR2032 battery

Hammerhead Karoo:

• GPS bike computer with Android-based software
• scratch-resistant Dragontail glass
• matt display for good visibility in all lighting conditions
• IP67: dustproof, protection against temporary submersion
• waterproof USB port
• flat, aerodynamic design
• operation via touchscreen or four buttons
• 64 GB memory and 4GB RAM
• SIM card compartment for connection to mobile internet (3G, 4G)
• re-routing function
• adapter for Garmin mounts
• perfect connectivity with SRAM AXS
• e-bike connection: access to LEV data fields (e.g. motor assistance, range, motor power; battery status)

Technology:

AXS
AXS is SRAM's electronic integration platform that combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. The grip width adjustment makes it child's play to adjust the lever - for maximum control.

Bleeding Edge
Bleeding Edge technology allows quick and easy bleeding of the brakes. Due to the special fluid channel and the improved bleed opening, the fluid can be pumped more easily through the brake calliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Stealth-a-majig
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

X-Sync
The X-Sync tooth design is characterised by long, rounded and slanted tooth edges with a narrow profile. Derailleur pulleys with X-Sync technology support the chain guide and remain unaffected by dust and mud.

Orbit
Orbit technology is an innovative form of rear derailleur movement control. It uses silicone fluid as part of an elegant and ultralight damper system. Compared to a conventional friction clutch system, the Orbit technology generates no additional resistance at the rear derailleur spring during slow or light movement. This results in easier shifting and removal of the rear wheel. During the ride, the liquid damper holds the chain back in a sophisticated and elegant way. With the highest reliability and chain tension, for 2x and 1x systems.

Yaw
The Yaw technology allows trim-free shifting, as the front derailleur cage describes an arc and is therefore at a constant angle to the chain. Shifting transitions are thus more direct and precise, providing unprecedented performance when shifting up front.

Manufacturer Number:

00.7918.325.000

Contents:

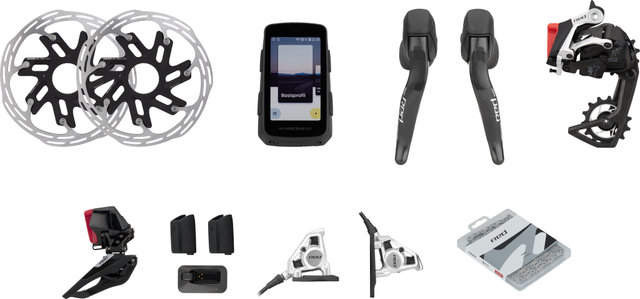

SRAM Red AXS E1 HRD FM groupset for 2x12-speed center lock, consisting of:

• 2 x SRAM Red E1 AXS HRD disc brake

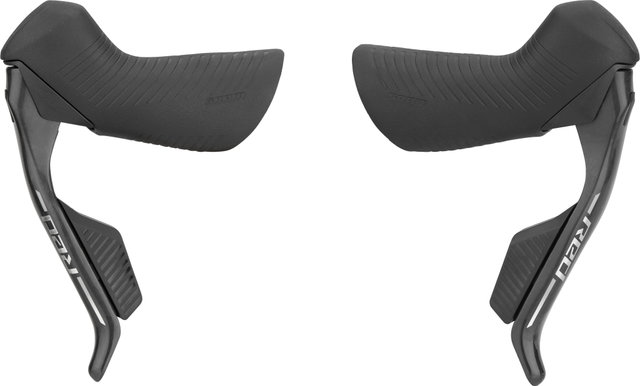

• 2 x SRAM Red E1 AXS HRD shift/brake lever with battery
• 1 x Hammerhead Karoo bike computer
• 2 x pair SRAM organic brake pads
• 2 x SRAM brake hose, 950 mm (front) and 1800 mm (rear)
• 1 x SRAM pad spacer

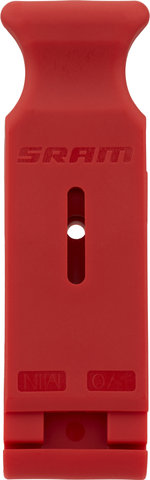

• 1 x SRAM bleed block
• 1 x SRAM Red E1 12-speed PowerLock chain, 114 links
• 1 x SRAM Red E1 AXS rear derailleur

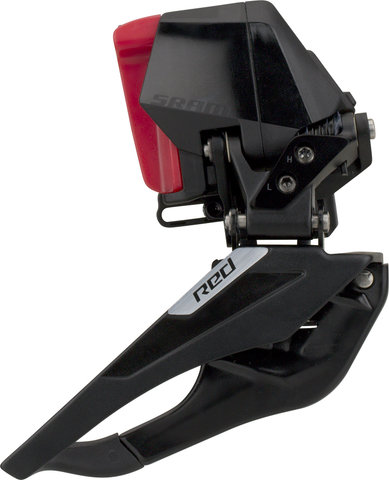

• 1 x SRAM Red E1 AXS front derailleur
• 2 x SRAM Paceline X Center Lock brake rotors, 160 mm
• 2 x SRAM eTap / AXS battery
• 1 x SRAM battery charger

Order Together:

• DUB Road bottom bracket
• disc brake adapters

Optional accessories:
SRAM eTap AXS Wireless Blips Satellite Shifters
