SRAM Red XPLR E1 Wide AXS 1x13-speed Groupset

The SRAM Red XPLR E1 Wide AXS groupset for an electronic 1x13-speed gravel drive

The Red XPLR E1 Wide AXS 1x13-speed complete groupset from SRAM with Red XPLR E1 rear derailleur, cassette, crankset, and hydraulic disc brakes with flat mount mounting makes your gravel bike ready for any terrain. The drive is wirelessly controlled and ensures precise, quick gear changes, while the hydraulic disc brakes not only look good but also perform powerfully. The full-mount direct mounting is the most striking feature of the rear derailleur: it is mounted directly on the rear axle instead of the UDH universal derailleur hanger. This keeps it precisely and without tolerances aligned, even when used in challenging terrain. The cassette has 13 sprockets with 10 to 46 teeth and offers a gear range of 460%, ideal for sprints on asphalt, tours over gravel, or climbs in the mountains. The crank arms made of carbon promise high stiffness at a low weight. The chainring is attached via Thread Mount and can be easily replaced with the appropriate tool if necessary. The grips are designed for different hand sizes and shapes and can be adjusted in grip width and contact point to your needs. With the help of the AXS app, you customize your drive and configure the two additional buttons on the sides of the shift/brake levers.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries, accumulators, and electrical equipment can be found here.

Specifications:

Series:

Red

Application:

Gravel

Shifters & Derailleurs:

1x, 13-speed (wireless)

Brakes:

disc, hydraulic (flat mount)

Components:

Crank:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm (40T or 42T)

Cassette:

10-46

Rear Derailleur:

medium cage (10-46)

Compatibility:

• Frame: UDH universal derailleur hanger mandatory

Additional Components Needed:

The bottom bracket is not included. SRAM recommends DUB Road Wide Bottom Bracket. Also, Brake Discs are not included in the delivery.

Features:

• Gravel complete groupset with wireless 1x13-speed drive and hydraulic disc brakes
• Crankset with lightweight carbon arms and good chain retention thanks to X-Sync tooth design
• Electronic 13-speed rear derailleur with tolerance-free full-mount attachment on frames with UDH universal derailleur hanger, Magic Wheel as the lower derailleur pulley, and lightweight ceramic bearings

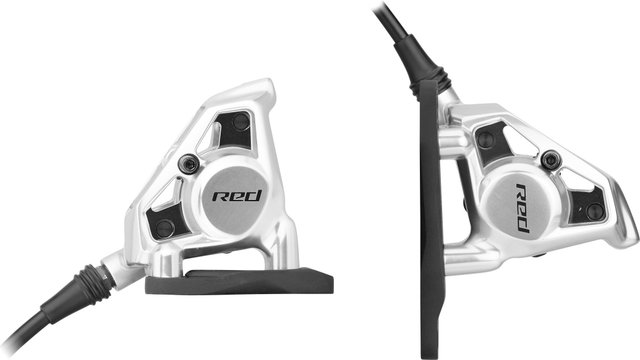

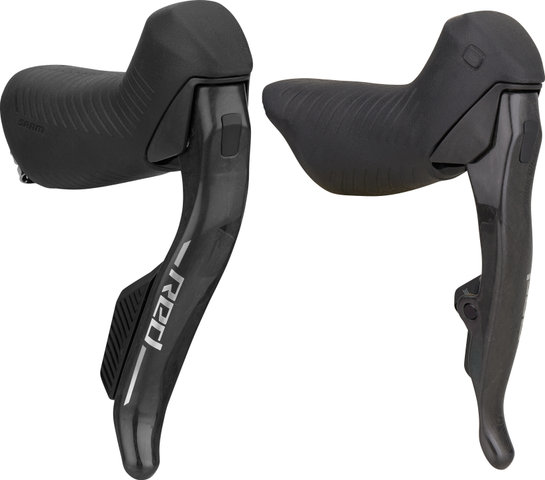

• Hydraulic road disc brakes with shift/brake levers
• 13-speed cassette with 10 to 46 teeth and 460% gear range
• Efficient Flattop chain with 126 links and PowerLock chain lock
• Optimized handle shape for secure grip of different hand sizes
• Brake levers made of carbon for weight savings, 83 g lighter than the predecessor
• Pressure point and grip width adjustment
• Easy personalization with SRAM AXS
• DUB bottom bracket system for durability and simplicity
• Power supply of the shifter for communication with the rear derailleur via a CR2032 battery

Technology:

AXS
AXS is the electronic integration platform from SRAM, connecting electronic bicycle components and software. The SRAM AXS app allows you to see the battery status, change component behavior, adjust controls, receive maintenance reminders, and update firmware.

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. The grip width adjustment makes it easy to adjust the lever – for maximum control.

Magic Wheel
The Magic Wheel is a cleverly designed derailleur pulley. If a branch or similar gets wedged in and blocks it, the teeth continue to turn and the chain continues its run unhindered.

Bleeding Edge
Bleeding Edge technology allows quick and easy bleeding of the brakes. Due to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Stealth-a-majig
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

DUB
The unit of crankshaft and bottom bracket is the heart of the DUB technology. Stiffness meets durability. SRAM has gone a step further and made everything even simpler and better. It is mainly the system approach through the integration of chainring, crank, spindle, and bottom bracket that means better drivetrain performance.

X-Range
The X-Range technology was developed with the possibilities of today's drop bar bikes in mind. It is distinguished by a broad gear range with smooth, even gear changes. The combination of chainrings with 13-tooth spacing with a high bandwidth cassette, starting with a 10-tooth sprocket, ensures well thought-out, homogeneous gear jumps and always puts you in the right gear. In combination with AXS, you can make various shift settings and personalize your drivetrain to suit you.

X-Sync
The X-Sync tooth design is characterized by long, rounded, and slanted tooth edges with a narrow profile. Derailleur pulleys with X-Sync technology support the chain guide and remain unaffected by dust and mud.

Contents:

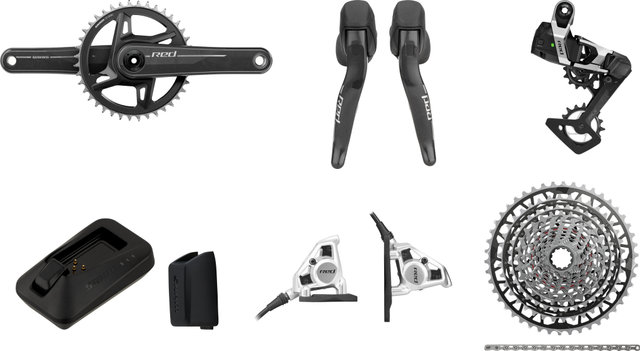

Complete groupset SRAM Red XPLR E1 Wide AXS 1x13-speed, consisting of:

• 1 x Crankset SRAM Red XPLR E1 Wide DUB
• 1 x Chainring SRAM
• 2 x Disc brake SRAM Red E1 AXS front and rear
• 1 x Shift/Brake lever SRAM Red E1 AXS front with battery
• 1 x Rear derailleur SRAM Red XPLR E1 AXS 13-speed
• 1 x Cassette SRAM XG-1391 XPLR 13-speed
• 1 x Chain SRAM Red XPLR 12-speed
• 2 Pairs of brake pads SRAM organic
• 2 x Brake line SRAM 950 mm (front) and 1800 mm (rear)
• 2 x Transport lock SRAM
• 2 x Bleed block SRAM Bleed Block
• 1 x Chain lock SRAM PowerLock
• 1 x Adjustment gauge SRAM Chain Gap Adjustment Gauge
• 1 x Battery SRAM eTap / AXS
• 1 x Battery charger SRAM

Order Together:

Optional accessories:

• Disc Brake Adapter
