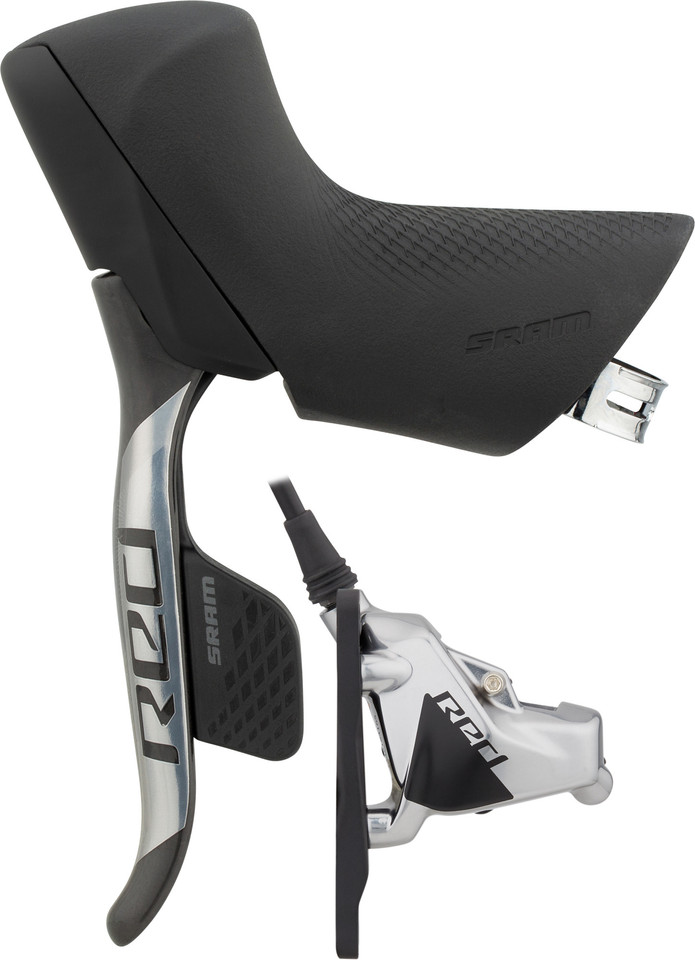

SRAM Red eTap AXS HRD FM Hydraulic Disc Brake Shift/Brake Lever, Two Piece

The Red eTap AXS HRD FM disc brake with hydraulic shift/brake lever and two-piece brake caliper by SRAM is the future

The SRAM Red eTap AXS HRD FM disc brake comes with a hydraulic shift/brake lever and two-piece caliper. The SRAM Red® eTap® AXS™ HRD FM shift and brake system combines electronic shifting and hydraulic disc brakes. An individual adjustment to your hands and preferences is done via the Contact Point Adjustment™ and the separate Reach Adjust™.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Series:

Red eTap AXS

Application:

Road

Gearing:

2-speed, 12-speed

Shifting System:

wireless

Type:

hydraulic

Hose Length (Front/Rear):

950 mm / 1800 mm

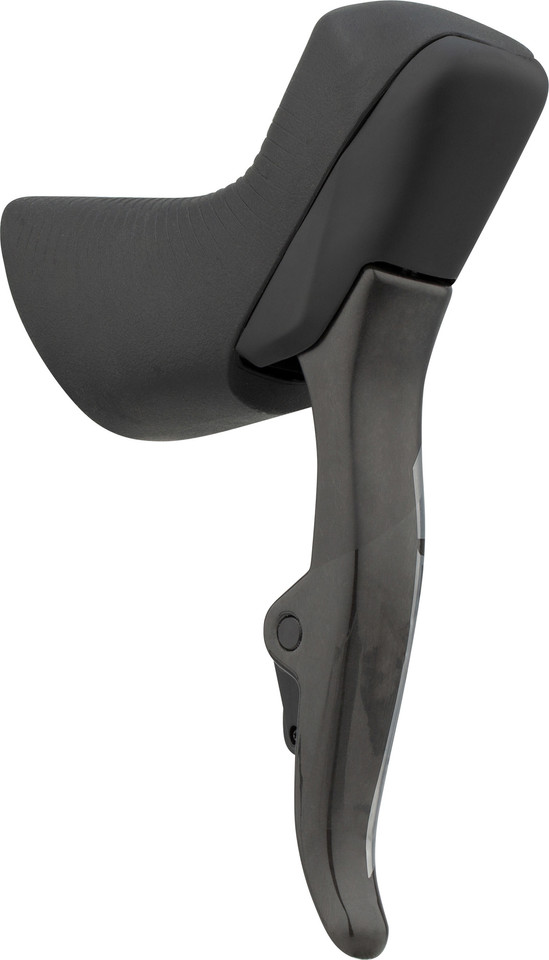

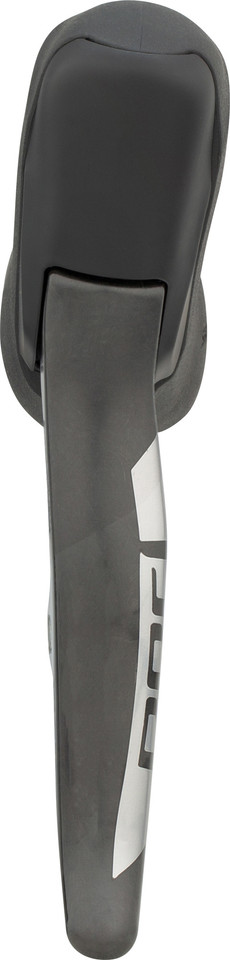

Technical Information - Shift/Brake Lever:

Brake Lever Material:

carbon (LFRT)

Shift Lever Material:

composite

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

contact point adjust

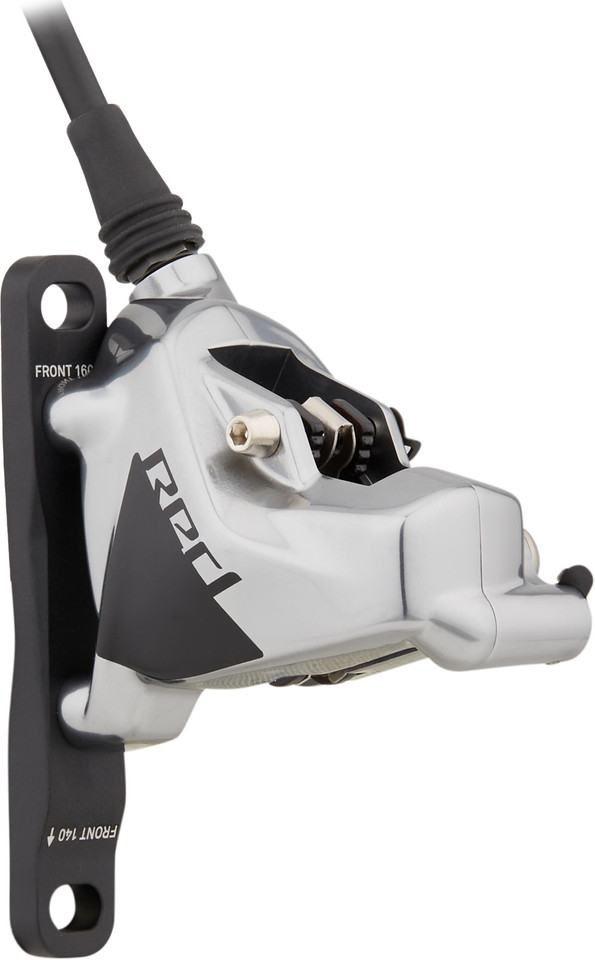

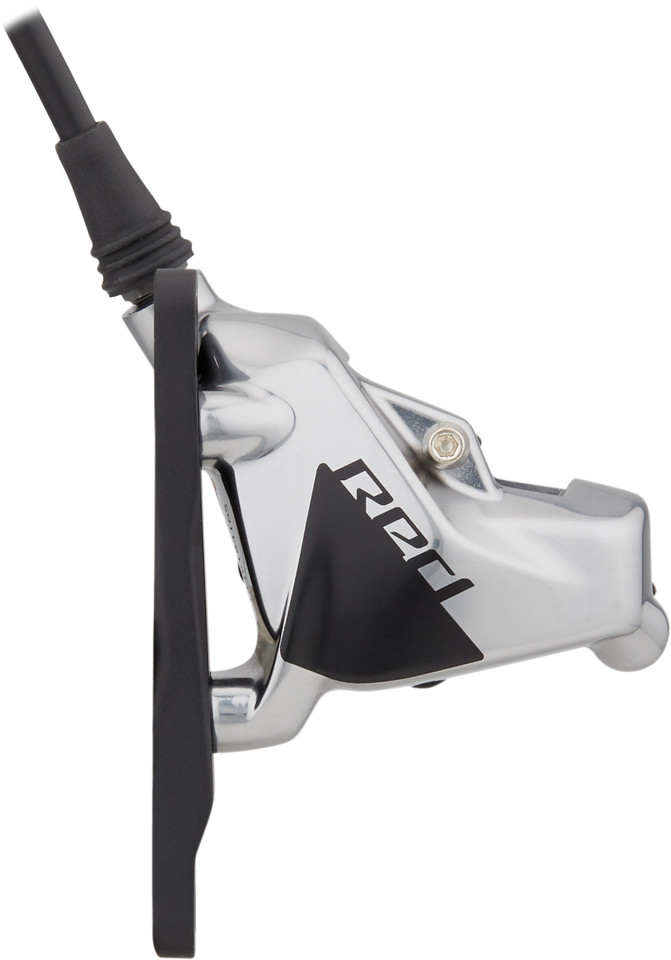

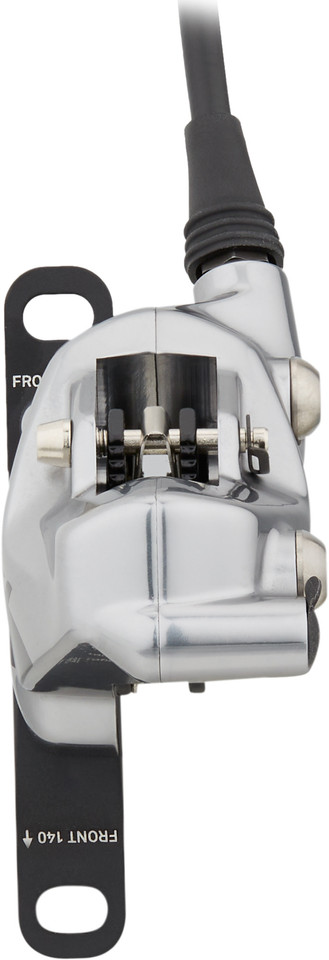

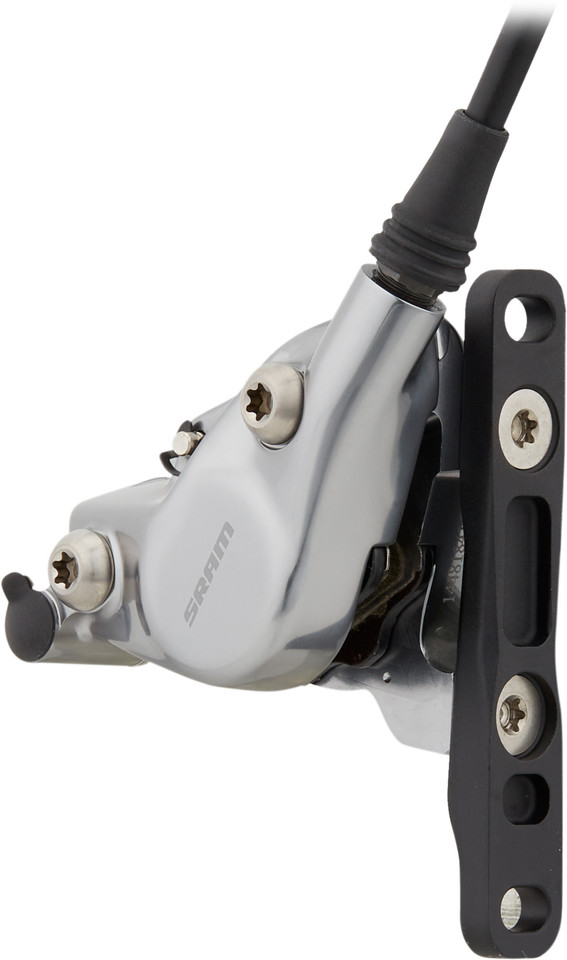

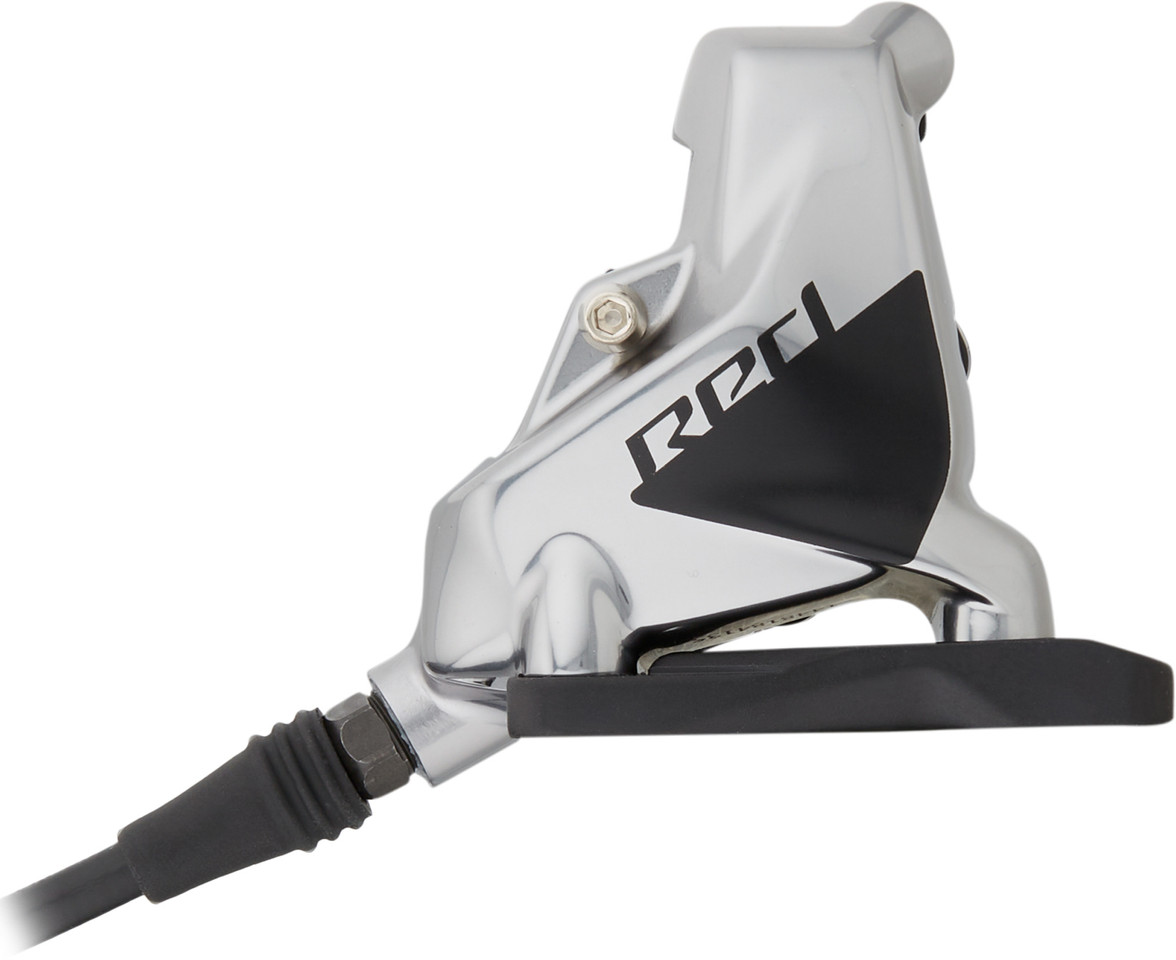

Technical Information - Caliper:

Mount:

flat mount

Pads:

steel, organic

Design:

two-part

Hose Connection:

straight

Features:

• AXS for easy personalisation
• simple and intuitive eTap shifting logic
• HydroHC™ brake performance for more control
• structured shift paddles and rubber hoods for a better feeling
• two Blips™ connections per side
• Bleeding Edge™ technology for easy and clean bleeding

Technology:

AXS:
AXS is the new electronic integration platform by SRAM, which combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Contact Point Adjustment:
Some people like the immediate power transmission of a short lever travel. Others, however, prefer the feeling of a longer lever travel. With the contact point adjustment you can determine the position where your fingers should be when the brakes are actuated. This way, you can quickly and easily adjust the feel of your brakes without having to move the pads. In addition, both brake levers can be adjusted so that they feel exactly the same.

Reach Adjust:
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

Bleeding Edge:
The Bleeding Edge technology allows quick and easy bleeding of the brakes. Due to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake calliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Stealth-a-majig™:
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

Manufacturer Numbers:

front left:

00.7018.392.014

rear right:

00.7018.392.013

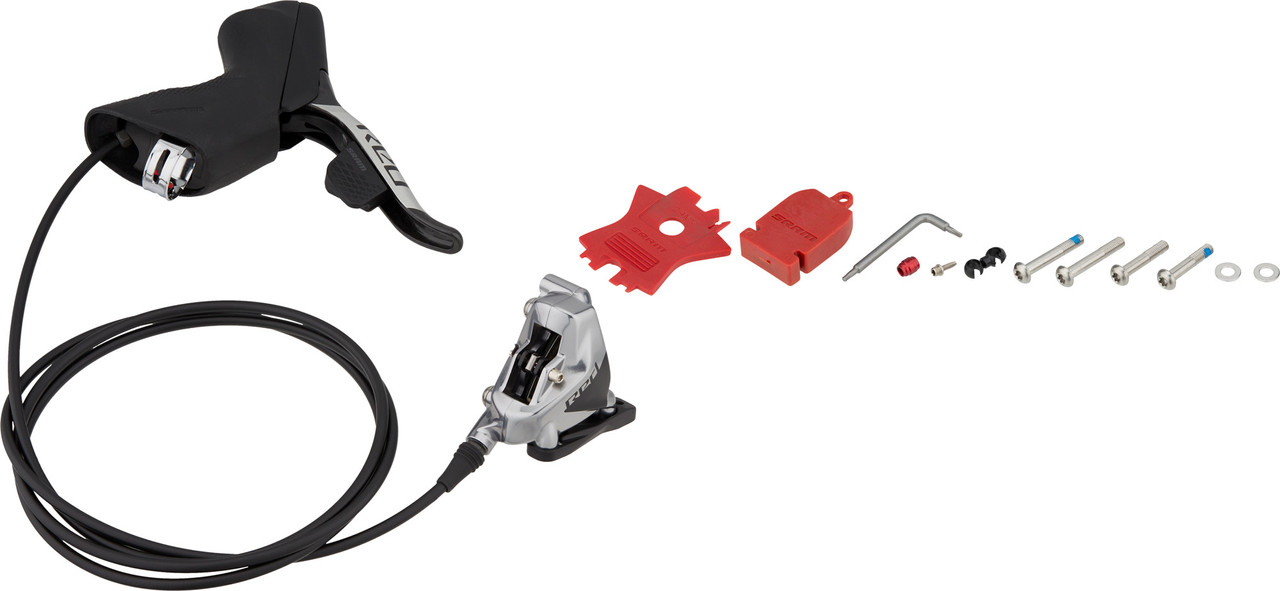

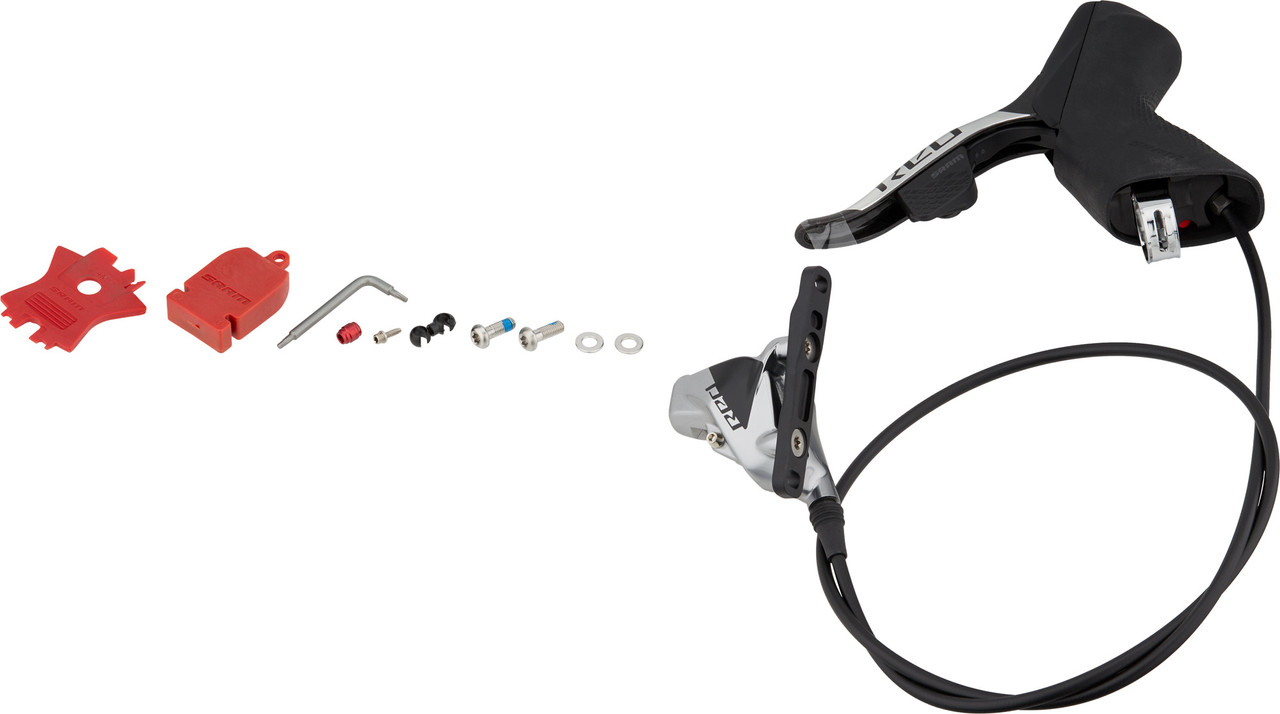

Contents:

• 1 x SRAM Red eTap AXS HRD disc brake
• 1 x SRAM Red eTap AXS HRD shift/brake lever
• 1 x SRAM brake hose, 950 mm or 1800 mm
• not incl. brake rotor
