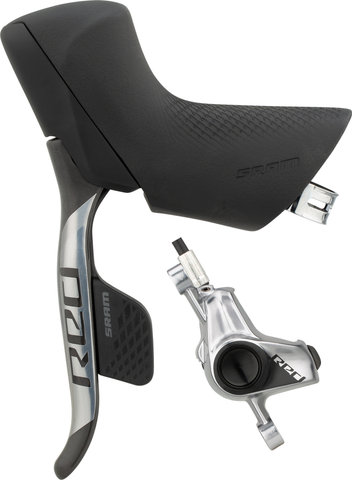

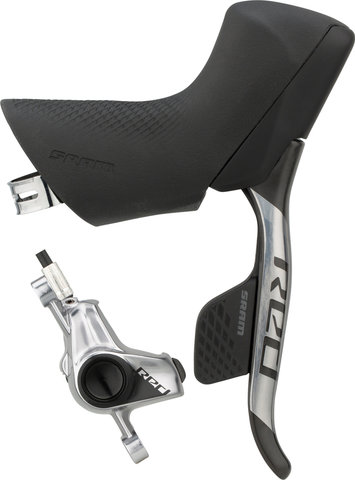

SRAM Red eTap AXS HRD Hydraulic Disc Brake Shift / Brake Lever

Individuality and performance: the hydraulic Red eTap AXS HRD shift/brake levers by SRAM

The Red® eTap® AXS™ HRD shift and brake system from SRAM combines hydraulic disc brakes and electronic shifting. Through Contact Point Adjustment™ and separate Reach Adjust™, an individual adjustment to your hands and preferences is possible. The best shifting and braking performance which has existed to this point.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Red eTap AXS

Application:

Road

Gearing:

2-speed, 12-speed

Shifting System:

wireless

Type:

hydraulic

Hose Length (Front/Rear):

950 mm / 1800 mm

Technical Information:

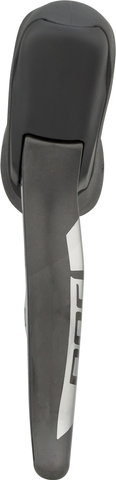

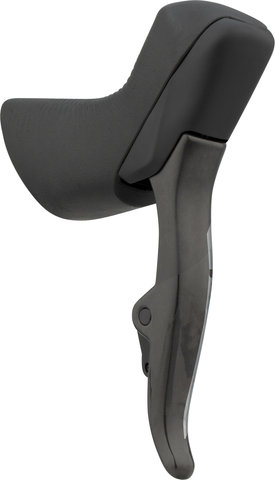

Brake Lever Material:

carbon (LFRT)

Shift Lever Material:

composite

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

contact point adjust

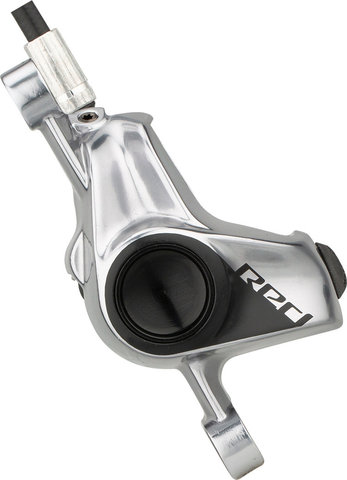

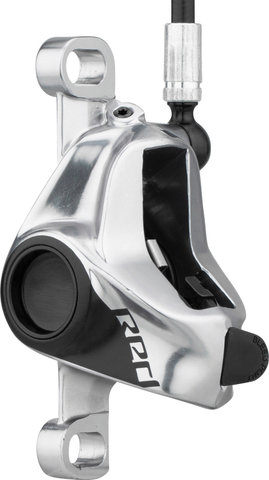

Technical Information - Caliper:

Mount:

post mount

Pads:

steel, organic

Hose Connection:

straight

Features:

• AXS enables easy personalisation
• simple and intuitive eTap shifting logic
• HydroHC™ braking performance for more control
• structured shift paddles and rubber hoods for a better feeling
• two Blips™ connections per side
• Bleeding Edge™ technology for easy and clean bleeding

Technology:

AXS:
AXS is the new electronic integration platform by SRAM, which combines electronic bicycle components and software. The SRAM AXS app allows you to view battery status, change component behaviour, adjust controls, receive maintenance reminders and update firmware.

Contact Point Adjustment:
Some people like the immediate power transmission of a short lever travel. Others, however, prefer the feeling of a longer lever travel. With the contact point adjustment you can determine the position where your fingers should be when the brakes are actuated. This way, you can quickly and easily adjust the feel of your brakes without having to move the pads. In addition, both brake levers can be adjusted so that they feel exactly the same.

Reach Adjust:
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

Bleeding Edge:
The Bleeding Edge technology allows quick and easy bleeding of the brakes. Due to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake calliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Stealth-a-majig™:
With Stealth-a-majig, installing the hydraulic hose during assembly is child's play. Its smaller size allows easy internal cable routing, which gives the bike a tidy look.

Manufacturer Numbers:

front left:

00.7018.392.002

rear right:

00.7018.392.001

Contents:

• 1 x SRAM Red eTap AXS HRD disc brake
• 1 x SRAM Red eTap AXS HRD shift/brake lever
• 1 x SRAM brake hose, 950 mm or 1800 mm
• not incl. brake rotor
