SRAM Rival DUB Power Meter Upgrade Kit

The Rival DUB Upgrade Kit by SRAM, a crank arm with power meter axle, allows for left-sided power measurement on any bike with a Rival DUB crankset.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Type:

crank arm with performance measurement (left)

Technical Information:

Series:

Rival

Crank Arm Material:

Aluminium

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

all SRAM Road DUB

Tolerance:

+/- 3%

Point of Measurement:

crank axle

Power Source:

AAA micro battery

Battery Life:

400+ h

Data Collected:

power (left side), cadence, torque

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Compatibility:

• all Rival DUB cranksets D1 with 45 mm chainline

Features:

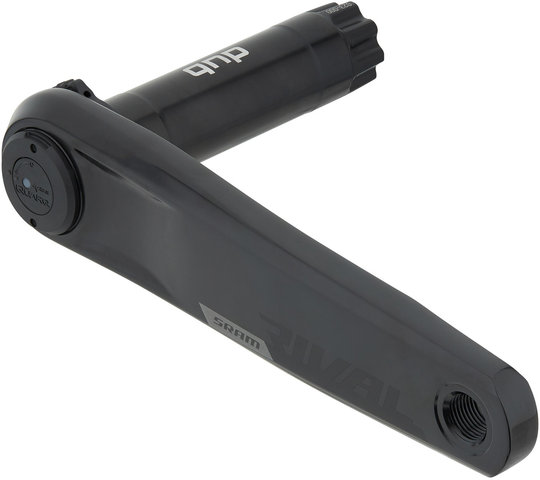

• left crank arm with power meter axle to replace the original crank arm
• DUB-PWR Axis unit measures left-sided power to determine total wattage
• elegant integrated design
• proven reliability and accuracy with QUARQ technology
• DUB bottom bracket system for durability and simplicity
• energy display (total power), calibration, battery status display via app
• long battery life covers an entire season
• user-replaceable battery
• IPX7 waterproof up to 1 meter for 30 minutes
• light: adds only 40 g to a standard crankset

Manufacturer Numbers:

165.0 mm:

00.3018.303.001

170.0 mm:

00.3018.303.002

172.5 mm:

00.3018.303.003

175.0 mm:

00.3018.303.004

Contents:

SRAM Rival DUB Power Meter Upgrade Kit, consisting of:

• 1 x left crank arm with power meter axle
• 1 x AAA battery
