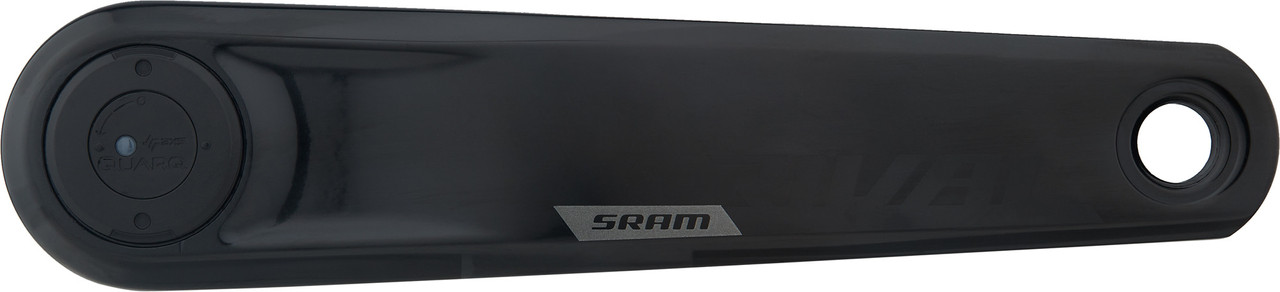

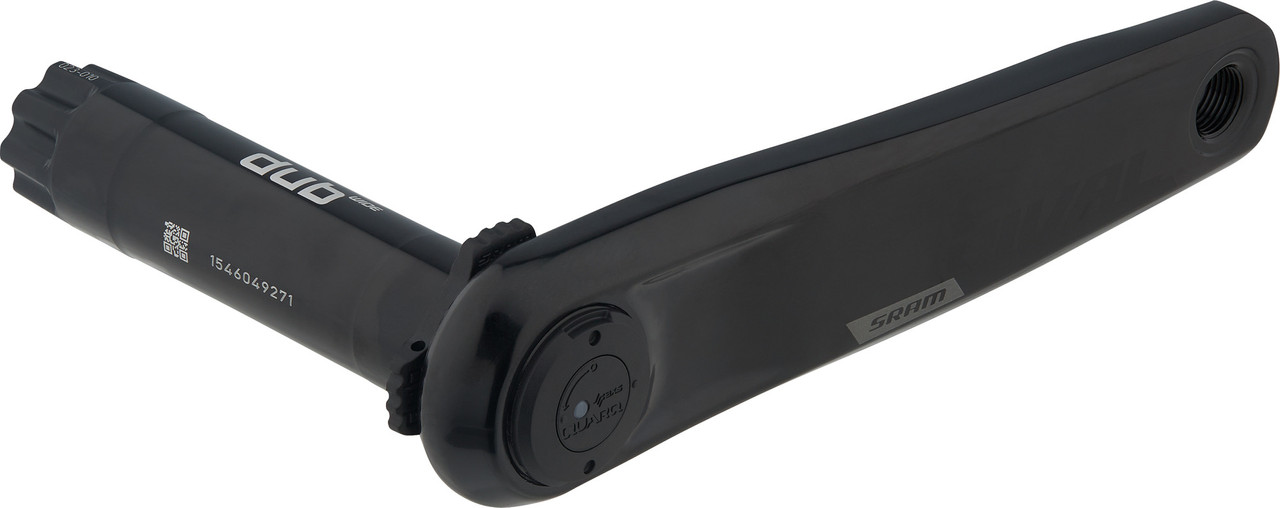

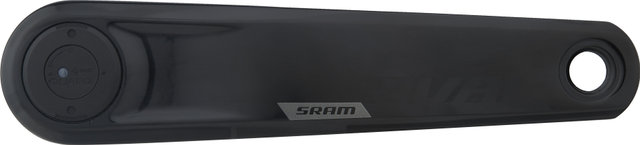

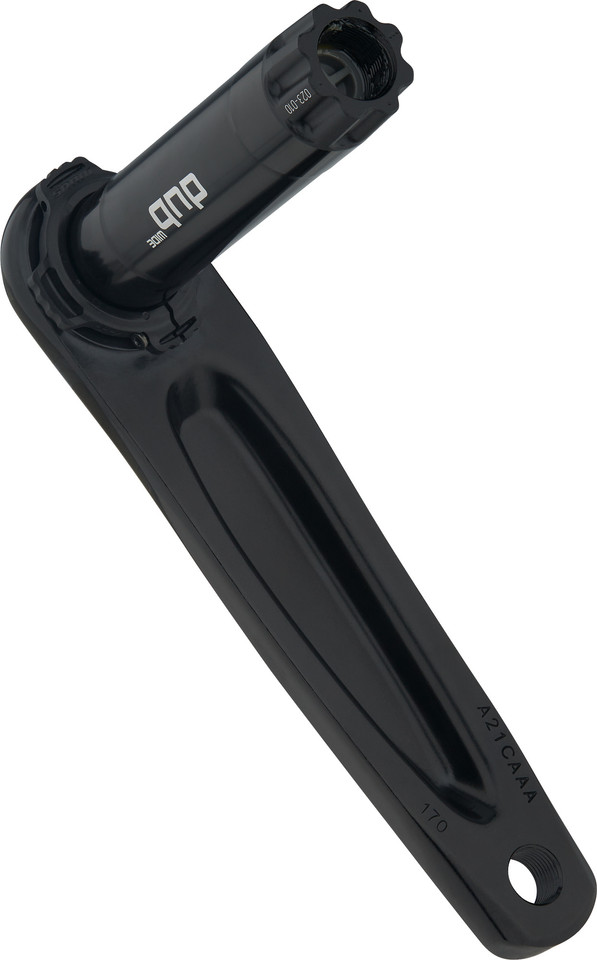

SRAM Rival Wide DUB Power Meter Upgrade Kit

The Rival Wide DUB Upgrade Kit from SRAM, a crank arm with power meter axle, allows left-sided power measurement on any bike with a Rival Wide DUB crankset.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel, Road

Type:

crank arm with performance measurement (left)

Technical Information:

Series:

Rival

Crank Arm Material:

Aluminium

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

all DUB Road Wide

Tolerance:

+/- 3%

Point of Measurement:

crank axle

Power Source:

AAA micro battery

Battery Life:

400+ h

Data Collected:

power (left side), cadence, torque

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Compatibility:

• all Rival Wide DUB cranksets D1 with 47.5 mm chainline

Features:

• left crank arm with power meter axle to replace the original crank arm
• DUB-PWR Axis unit measures left-sided power to determine total wattage
• elegant integrated design
• proven reliability and accuracy with QUARQ technology
• wide: 5 mm longer axle, chainline shifted outwards especially for bikes with wide gravel tyres
• DUB bottom bracket system for durability and simplicity
• energy display (total power), calibration, battery status display via app
• long battery life covers an entire season
• user-replaceable battery
• IPX7 waterproof up to 1 meter for 30 minutes
• light: adds only 40 g to a standard crankset

Manufacturer Numbers:

165.0 mm:

00.3018.304.001

170.0 mm:

00.3018.304.002

172.5 mm:

00.3018.304.003

175.0 mm:

00.3018.304.004

Contents:

SRAM Rival Wide DUB Power Meter Upgrade Kit, consisting of:

• 1 x left crank arm with power meter axle
• 1 x AAA battery
