SRAM X01 Eagle 1x12-speed E-Bike Upgrade Kit with Cassette for Shimano

The SRAM X01 Eagle 1x12-speed E-Bike Upgrade Kit with Cassette for Shimano freehubs includes the most important shifting components for your e-MTB

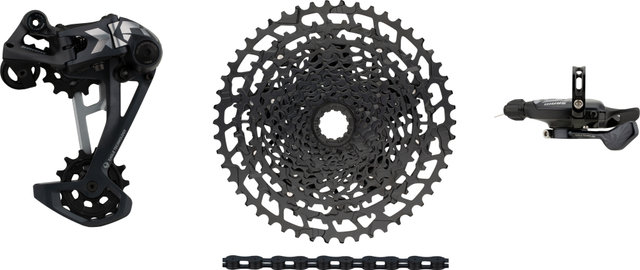

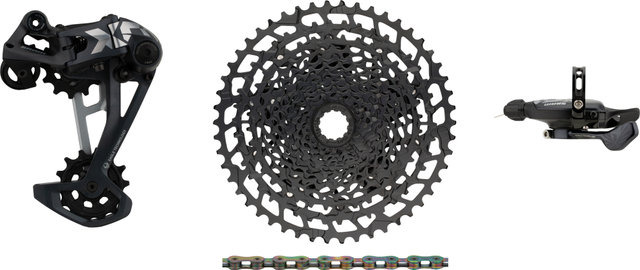

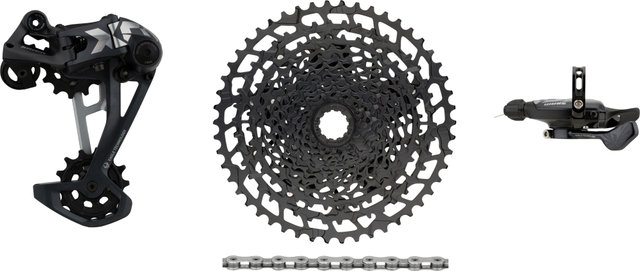

This SRAM upgrade kit of the X01 Eagle series for 1x12-speed drivetrains comes directly with a matching cassette for hubs with Shimano freehubs and is suitable for your e-bike on all-mountain or enduro trails. It consists of an X01 Eagle rear derailleur, an E-MTB specific X01 Eagle Trigger Single Click shifter, an NX Eagle PG-1230 cassette and a PC XX1 Eagle or PC X01 Eagle chain.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

X01 Eagle

Application:

All Mountain, Enduro

Shifters & Derailleurs:

12-speed (mechanical)

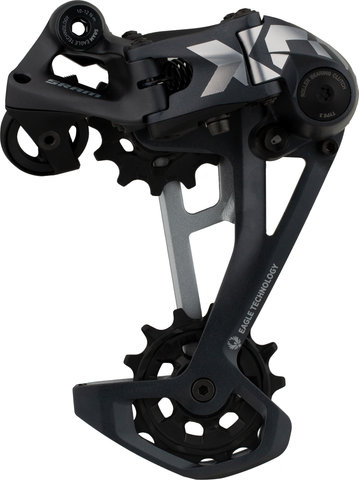

Technical Information - Rear Derailleur:

Mount:

standard

Cassette Teeth (max.):

52-tooth

Compatibility:

SRAM MTB 12-speed

Derailleur Pulleys:

14-tooth

Outer Cage Material:

Aluminium

Inner Cage Material:

Aluminium

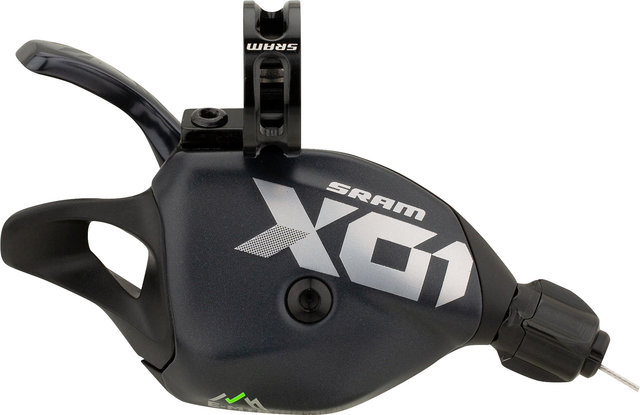

Technical Information - Shifter:

Mount:

clamp (closed), Matchmaker

Type:

trigger

Body Material:

aluminium, composite

Lever Material:

Aluminium

Clamp Diameter:

22.2 mm

Adjustment Options:

thumb lever position

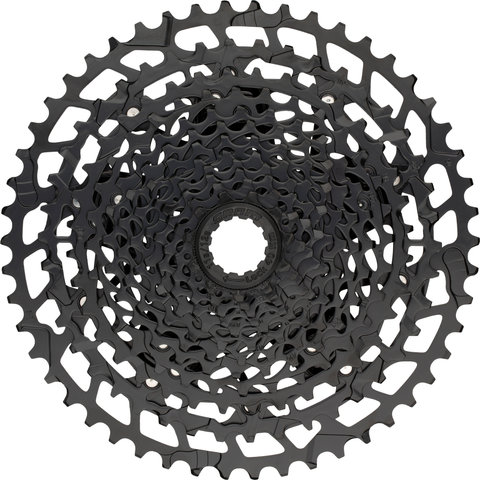

Technical Information - Cassette:

Gradation:

11-13-15-17-19-22-25-28-32-36-42-50 T

Sprocket Material:

steel

Spider:

1 / aluminium

Freehub Compatibility:

Shimano MTB

Technical Information - Chain:

Number of Links:

126

Closure Type:

PowerLock™

Pin Type:

hollow pins

Directional:

no (chain), yes (master link)

Material:

steel

Colour Info:

The colour designation consists of the colour of the cassette in the first place and series and colour of the chain in the second place.

Rear Derailleur:

lunar (dark grey)

Shifter:

lunar (dark grey)

Cassette:

black

Chain:

choice of XX1 rainbow (coloured), XX1 copper, XX1 gold, XX1 black, X01 silver

Manufacturer Numbers:

• Rear Derailleur: 00.7518.138.001
• Shifter: 00.7018.434.001
• Cassette: 00.2418.086.000
• Chain: 00.2518.039.010 (XX1 rainbow), 00.2518.043.010 (XX1 copper), 00.2518.024.020 (XX1 gold), 00.2518.024.021 (XX1 black), 00.2518.023.011 (X01 silver)

Contents:

• 1 x SRAM X01 Eagle rear derailleur
• 1 x SRAM Trigger X01 Eagle Single Click 12-speed shifter
• 1 x SRAM NX Eagle PG-1230 cassette
• 1 x SRAM PC XX1 Eagle chain or PC X01 Eagle (only for X01 silver)
• 1 x SRAM PowerLock master link
• 1 x SRAM clamp
• 1 x SRAM shift cable, 2200 mm
• 1 x SRAM chain gap adjustment gauge
