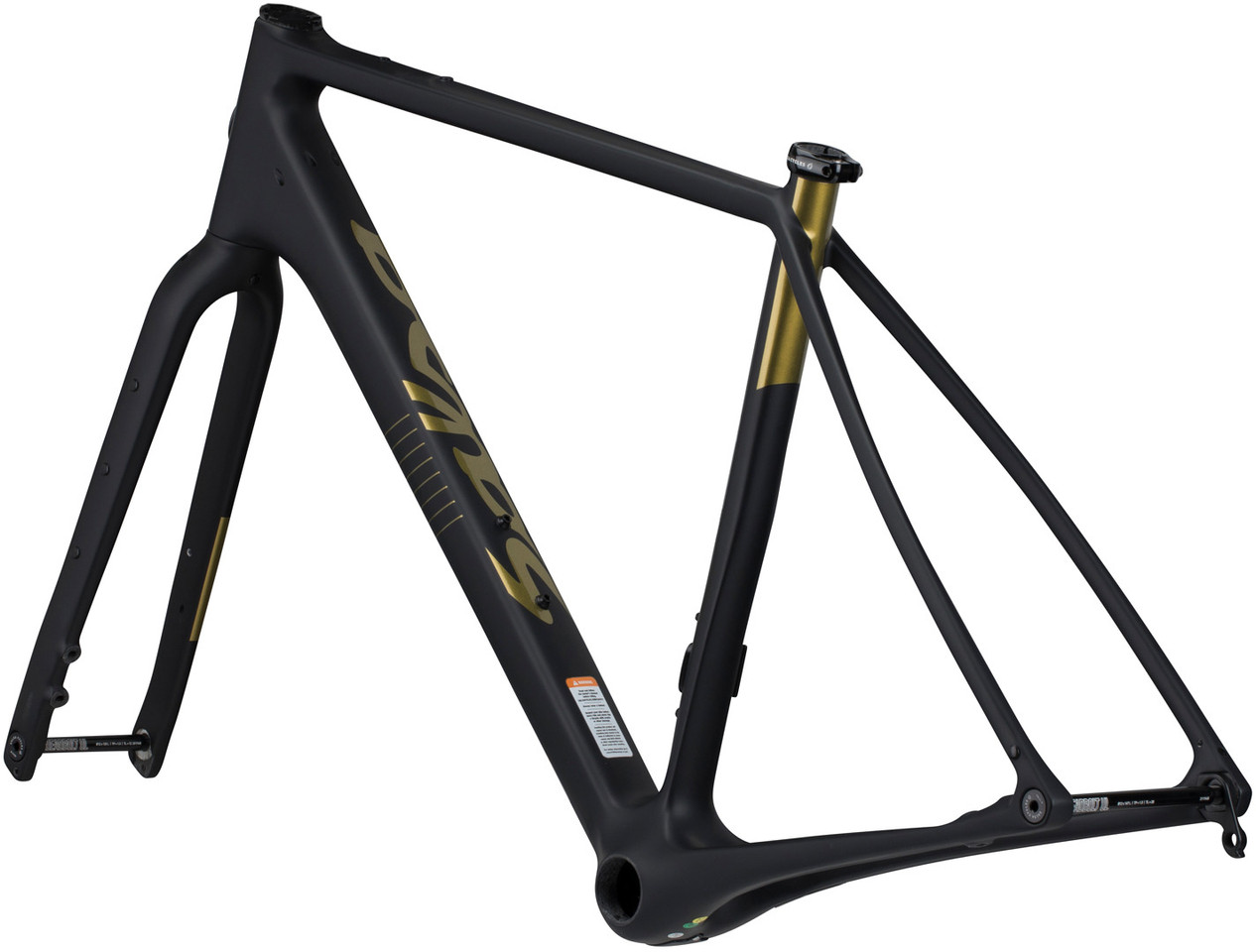

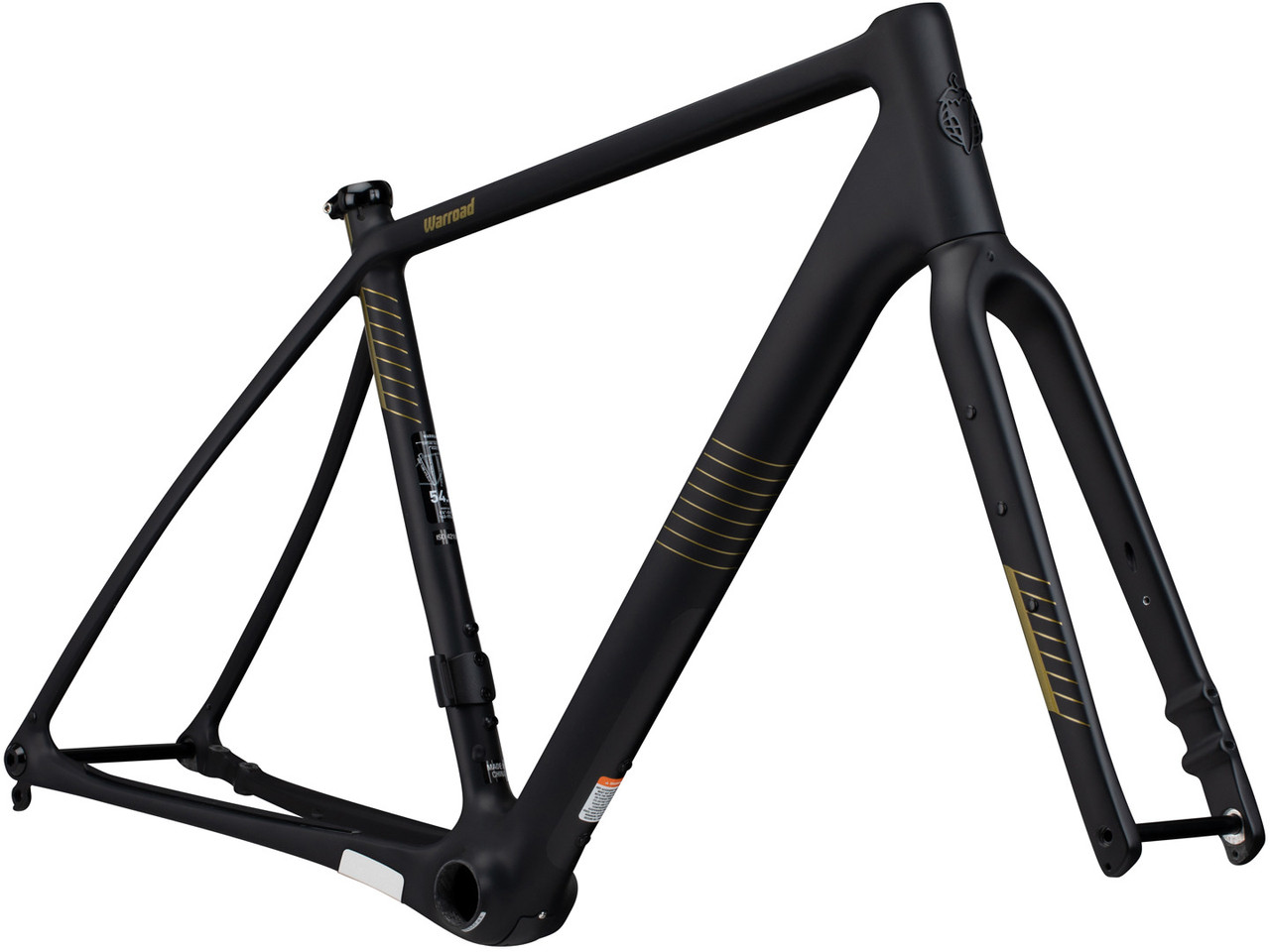

Salsa Warroad Carbon Allroad 27.5"/28" Frameset

The Salsa Warroad Carbon Allroad frameset for 28" and 27.5" Gravel bikes brings a lot of features, from the Class 5 Vibration Reduction System to the compatibility of different tyre sizes and the possibility to mount different racks.

Specifications:

Application:

Gravel

Wheel Size:

28" , 27.5"

Size:

49 cm, 52.5 cm, 54.5 cm, 56 cm, 57.5 cm, 59 cm, 61 cm

Frame Material:

Carbon

Fork Material:

Carbon

Technical Information - Frame:

Rear Over Locknut Dimension:

142 mm

Axle Type:

12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

32 mm

Headset:

IS41 - IS47 (top to bottom)

Steerer tube rec.:

1 1/8" - 1.5" tapered

Fork Axle to Crown:

390 mm

Fork Offset:

51 mm

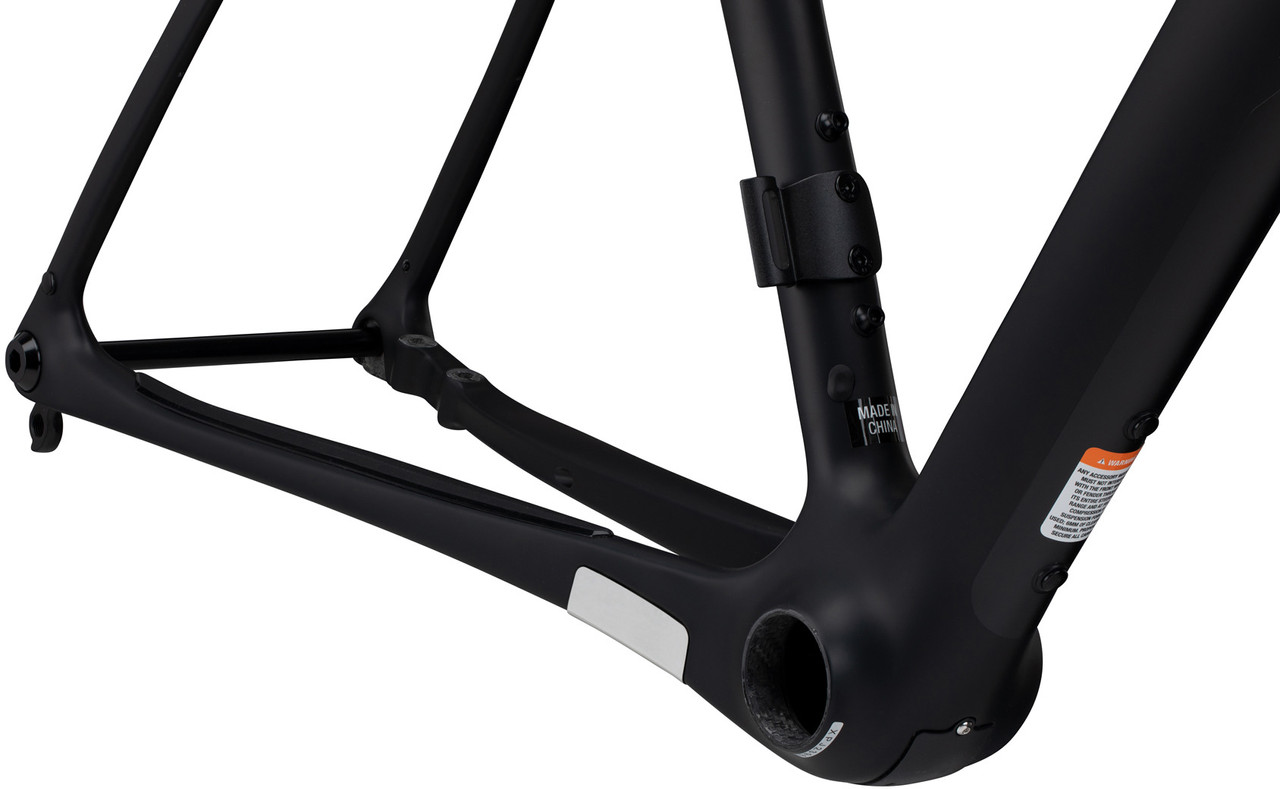

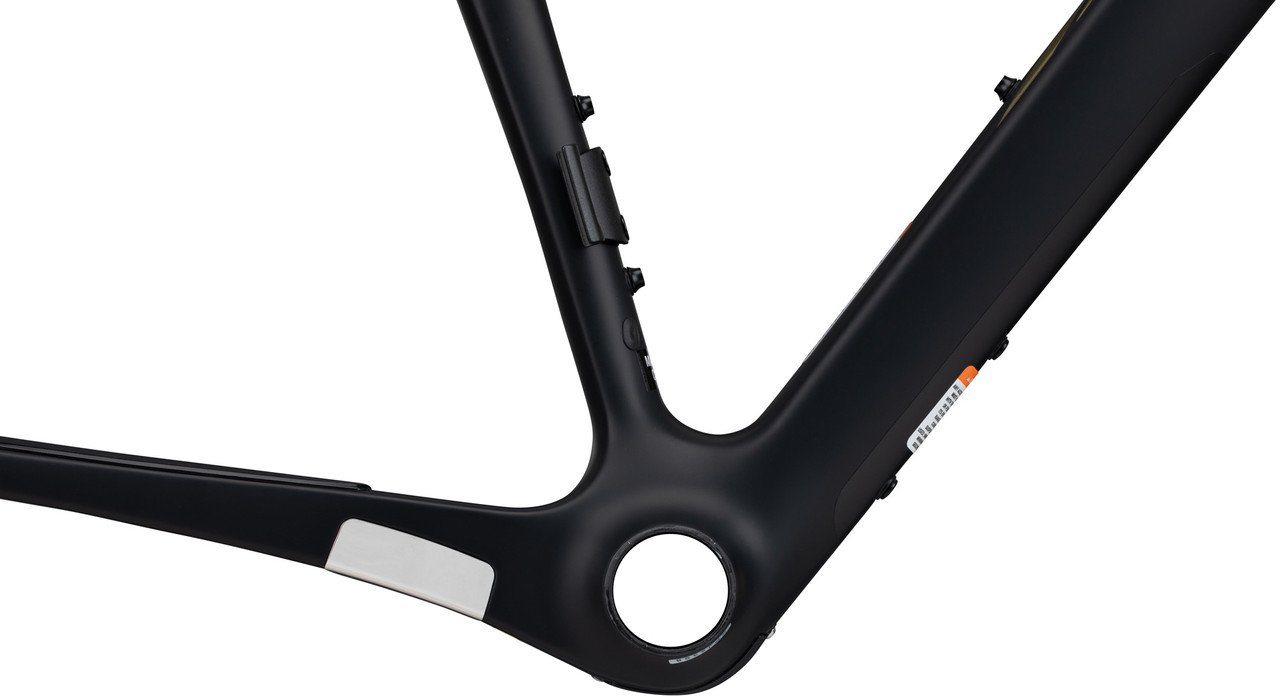

Bottom Bracket Standard:

BB86 PressFit

Shell Width:

86 mm

Brake Mount:

flat mount

Front Derailleur Mount:

braze-on

Cable Routing:

internal, mechanical

Bottle Cage Mounts:

2 (up to 54.5 cm), 3 (from 56 cm)

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (12 x 100 mm)

Brake Mount:

flat mount

Offset:

51 mm

Axle to Crown:

390 mm

Over Locknut Dimension:

100 mm

Steerer Tube Material:

Carbon

Blade Material:

Carbon

Accessory Mounts:

one per fork blade

Approved For:

Rotor Size (max.):

160 mm (rear), 160 mm (front)

Tyre Size (max.):

35-622 (700x35c), 27.5 x 1.85"

Chainrings:

1x, 2x

Chainring Size (max.):

1x 48 tooth, 2x 36-52 tooth

Features:

• hardtail frame made of carbon with class 5 vibration reduction system

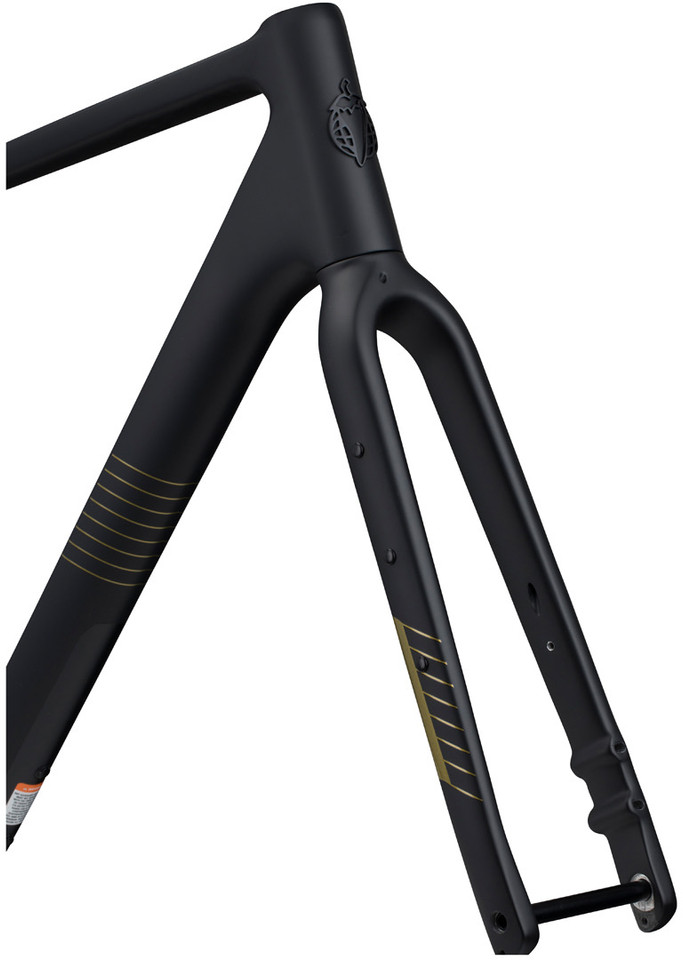

• Warroad Carbon Deluxe fork with cable routing for lighting

accessory mounts: one per fork blade, one on down tube, one on top tube (compatible with Salsa top tube bags)

• fender mount possible up to 700x30c, 27.5 x 1.65"
• rack mount possible with Salsa Post Lock

Geometry:

49 cm:

Recommended Height:

142-157 cm

Stack:

507.0 mm

Reach:

363.1 mm

Seat Tube Length:

400 mm

Effective Top Tube Length:

499 mm

Head Tube Length:

92 mm

Chainstay Length:

415 mm

Wheelbase:

980.0 mm

BB Drop:

72 mm

Seat Tube Angle:

75°

Head Tube Angle:

70.5°

Standover Height:

665.3 mm

52.5 cm:

Recommended Height:

155-165 cm

Stack:

546.6 mm

Reach:

368.2 mm

Seat Tube Length:

450 mm

Effective Top Tube Length:

525 mm

Head Tube Length:

132 mm

Chainstay Length:

415 mm

Wheelbase:

994.3 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

71°

Standover Height:

717.9 mm

54.5 cm:

Recommended Height:

162-173 cm

Stack:

565.6 mm

Reach:

372.1 mm

Seat Tube Length:

485 mm

Effective Top Tube Length:

545 mm

Head Tube Length:

152 mm

Chainstay Length:

415 mm

Wheelbase:

1004.7 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

71°

Standover Height:

747.4 mm

56 cm:

Recommended Height:

170-180 cm

Stack:

584.5 mm

Reach:

381.3 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

172 mm

Chainstay Length:

415 mm

Wheelbase:

1020.4 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

71°

Standover Height:

761.4 mm

57.5 cm:

Recommended Height:

178-188 cm

Stack:

603.7 mm

Reach:

390.5 mm

Seat Tube Length:

530 mm

Effective Top Tube Length:

575 mm

Head Tube Length:

192 mm

Chainstay Length:

415 mm

Wheelbase:

1036.1 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

71°

Standover Height:

787.6 mm

59 cm:

Recommended Height:

185-193 cm

Stack:

622.3 mm

Reach:

399.8 mm

Seat Tube Length:

555 mm

Effective Top Tube Length:

590 mm

Head Tube Length:

212 mm

Chainstay Length:

415 mm

Wheelbase:

1051.9 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

71°

Standover Height:

810 mm

61 cm:

Recommended Height:

from 190 cm

Stack:

641.2 mm

Reach:

407.8 mm

Seat Tube Length:

580 mm

Effective Top Tube Length:

610 mm

Head Tube Length:

232 mm

Chainstay Length:

415 mm

Wheelbase:

1066.5 mm

BB Drop:

72 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

71°

Standover Height:

832.1 mm

Manufacturer Numbers:

49 cm:

FM0920

52.5 cm:

FM0921

54.5 cm:

FM0922

56 cm:

FM0923

57.5 cm:

FM0924

59 cm:

FM0925

61 cm:

FM0926

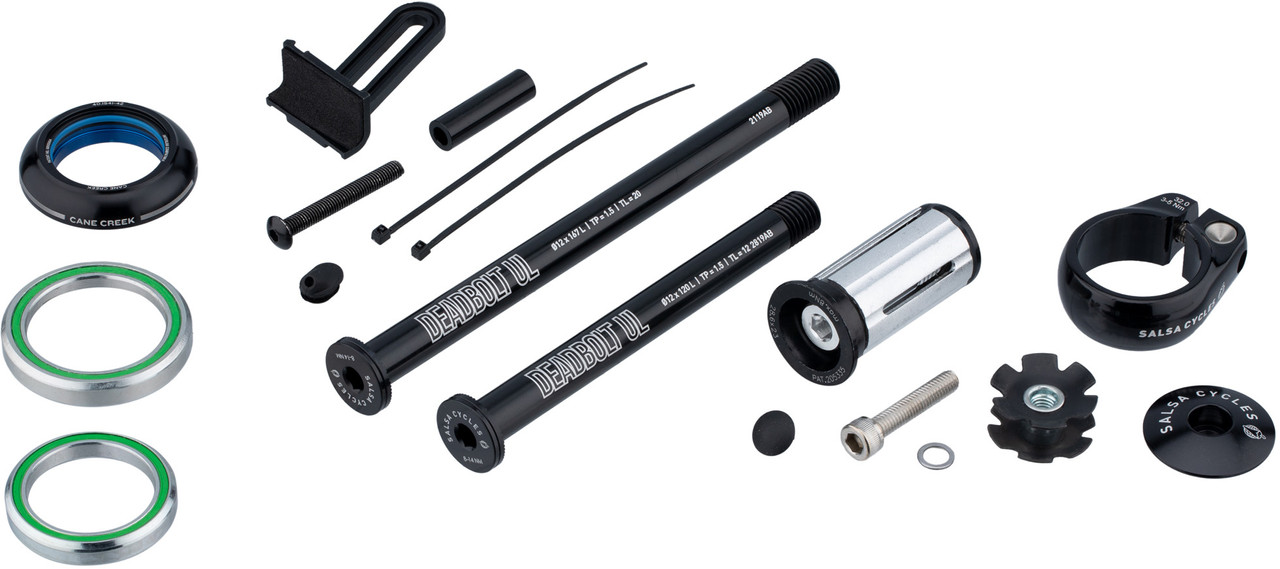

Contents:

• 1 x Salsa Warroad Carbon frame
• 1 x Salsa Warroad Carbon Deluxe rigid fork
• 2 x Salsa thru-axles (front + rear)
• 1 x Salsa seatpost clamp
• 1 x Cane Creek 40 headset
