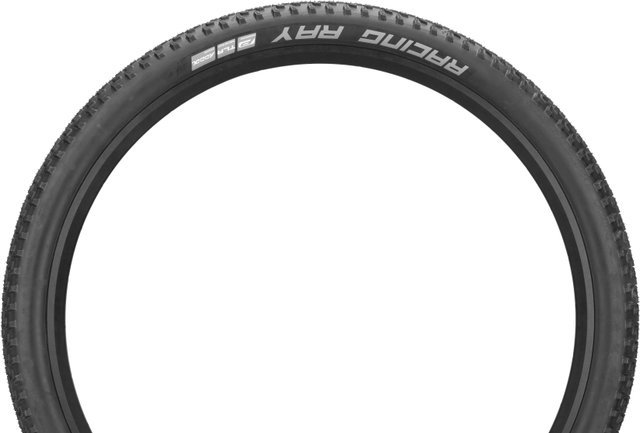

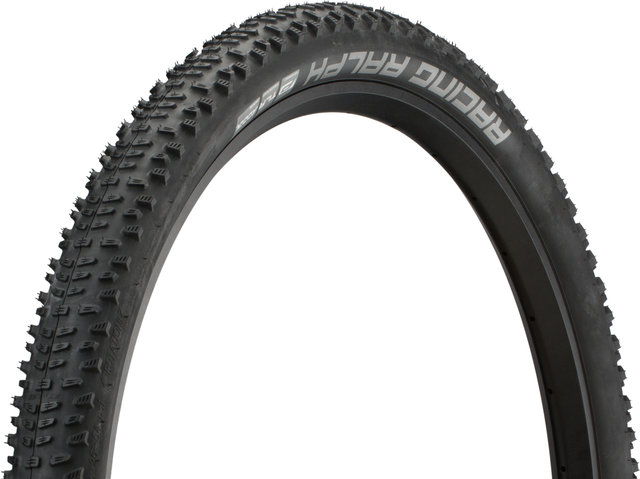

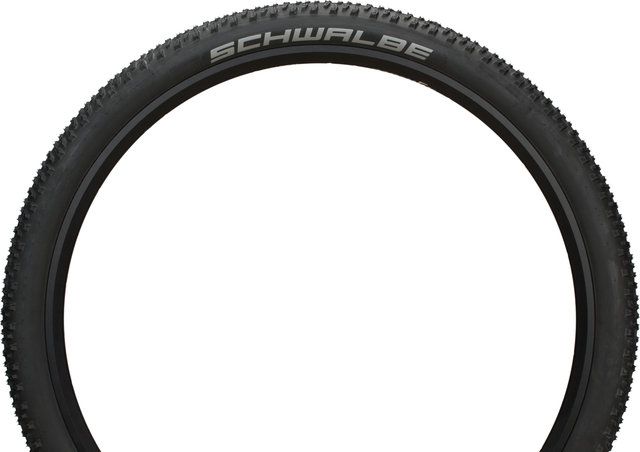

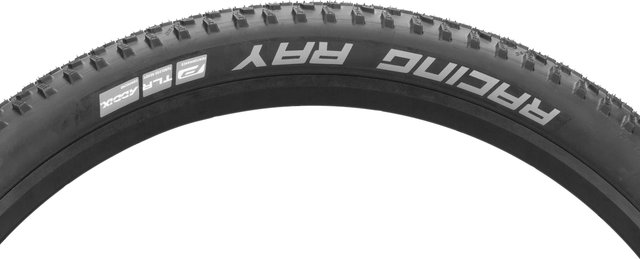

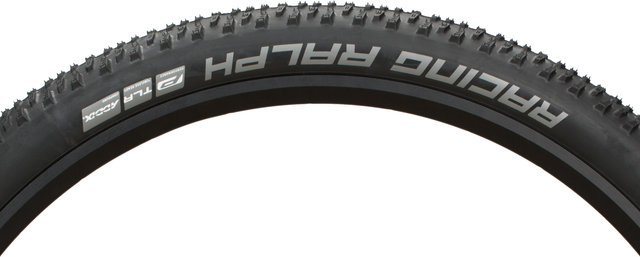

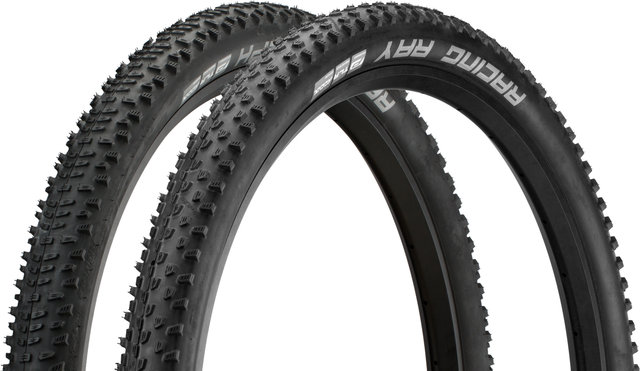

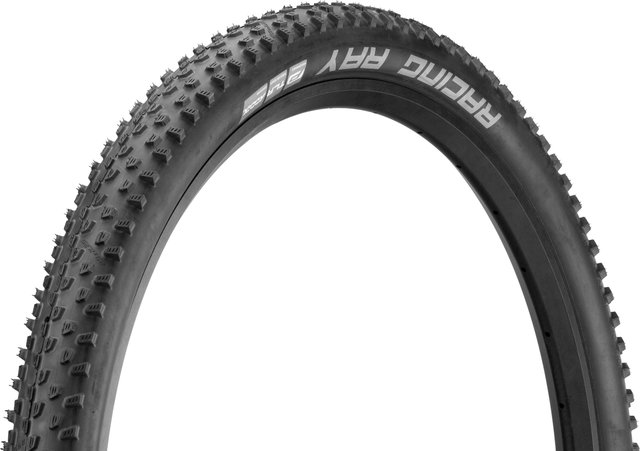

Schwalbe Racing Ralph Performance + Racing Ray Performance 29" Folding Tyre Set

The perfect XC duo: the Racing Ralph and the Racing Ray folding tyre set by Schwalbe

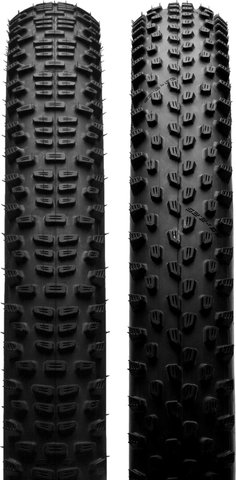

The Racing Ralph inspires with its optimal combination of speed and grip. As a rear wheel variant, it harmonises perfectly with Racing Ray, which has an extra-aggressive profile. The tread pattern of Racing Ralph features shallow depth in the centre of the tread for high speed and low weight.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country

Product Line:

Performance Line (intensive use)

Ground Conditions:

Hardpack, Mix

Type:

folding tyre

Tubeless System:

Tubeless Ready

Technical Information - Racing Ralph:

Rubber Compound:

ADDIX

Tread:

HS 490

Carcass:

67 tpi

Sidewall:

TwinSkin

Technical Information - Racing Ray:

Rubber Compound:

ADDIX

Tread:

HS 489

Carcass:

67 tpi

Sidewall:

TwinSkin

Strengths / Weaknesses - Racing Ralph:

Rolling Resistance:

4.5 (out of 6)

Road Grip:

3 (out of 6)

Off-Road Grip:

4.5 (out of 6)

Puncture Protection:

4 (out of 6)

Durability:

3.5 (out of 6)

Strengths / Weaknesses - Racing Ray:

Rolling Resistance:

4 (out of 6)

Road Grip:

3.5 (out of 6)

Off-Road Grip:

4.5 (out of 6)

Puncture Protection:

4 (out of 6)

Durability:

3 (out of 6)

Model Index - Racing Ralph:

29x2.25

Dimensions:

29 x 2.25"

ETRTO:

57-622

Air Pressure:

1.8 - 3.7 bars

Load Capacity (max.):

120 kg

Manufacturer Number:

11601114

Model Index - Racing Ray:

29x2.25

Dimensions:

29 x 2.25"

ETRTO:

57-622

Air Pressure:

1.8 - 3.7 bars

Load Capacity (max.):

120 kg

Tube Recommendation:

19, 19A, 19F

Manufacturer Number:

11601111

Note:
The load capacity shown refers to only one tyre. To check whether the tyre is suitable for your total weight (rider + bike), this value can be doubled, as the weight is then distributed over two tyres.

Technology:

Performance
Excellent quality for intensive use.

ADDIX Performance
ADDIX is also available as a Performance compound. The compound is very durable and meets a wide range of requirements. Similar to ADDIX Speedgrip it is a universal compound, but the tyres are not quite as light and not quite as fast as the Evolution Line.

TwinSkin
An additional rubber coating on the side protects against cuts and enables even colouring.

E-Bike Ready 25
For normal pedelecs with pedal assistance up to 25 km/h, the law does not prescribe any special tyres. But even with these bikes, loads and average speeds are higher than with normal bikes, so Schwalbe denotes only certain tyres as " E-Bike ready 25" (all Marathons, all Energizers, Big Apple, Big Ben, Smart Sam Plus).

Tubeless Ready
For the Performance Line MTB tyres, the sidewall is reinforced with rubber.

Contents:

• 1 x Schwalbe Racing Ralph 29" folding tyre (rear)
• 1 x Schwalbe Racing Ray 29" folding tyre (front)
