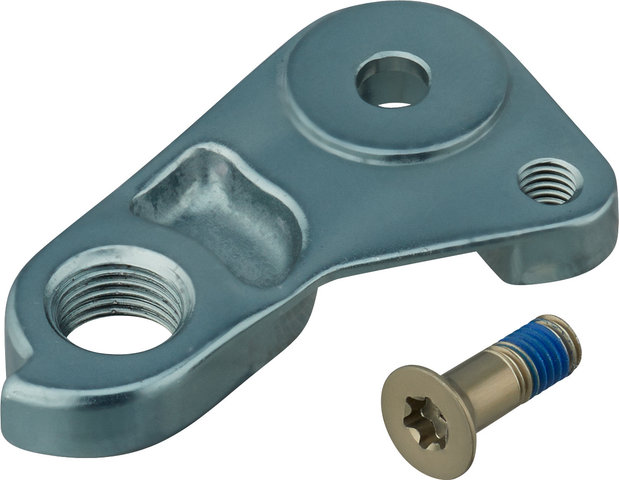

Scott Derailleur Hanger for E-Contessa Scale as of 2017

Derailleur hanger for Scott E-Contessa Scale frame, model year 2017. Depending on the actuator make, a direct mount or a non-direct mount derailleur hanger is fitted as standard.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Over Locknut Dimension:

12 x 148 mm, 10 x 141 mm

Mount:

direct mount, non-direct mount

Models:

black / type 1:
Compatibility:

• Scott E-Contessa Scale 720 Plus 2017

Mount:

Direct Mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

235288

black / type 2:
Compatibility:

• Scott E-Contessa Scale 720 Plus 2017

Mount:

non-direct mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

219577

silver / type 3:
Compatibility:

• Scott E-Contessa Scale 730 2018
• Scott E-Contessa Scale 730 2017

Mount:

non-direct mount

Over Locknut Dimension:

10 x 141 mm

Manufacturer Number:

219575

Note:
Shimano Direct Mount:
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs no longer have this mount, and are connected directly to the designated frame/dropout. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.

Contents:

• 1 x Scott derailleur hanger
