Scott Derailleur Hanger for Genius Carbon 2015 - 2016
Item number: 66865
Rear derailleur hanger for Scott Genius frame with carbon swing arm model year 2015-2016. Depending on the actuator make, a direct mount or a non-direct mount derailleur hanger is fitted as standard.
Compatibility:
black / type 2:
Compatibility:
Note:
Shimano Direct Mount:
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs no longer have this mount, and are connected directly to the designated frame/dropout. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.
Specifications:
- Over Locknut Dimension:
- 12 x 142 mm
- Mount:
- direct mount, non-direct mount
Models:

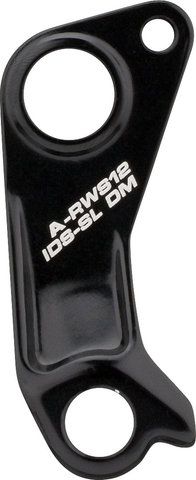

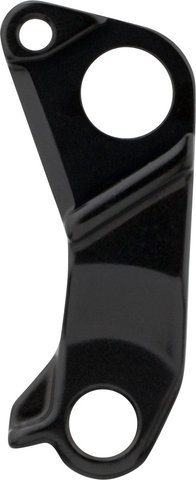

black / type 1:Compatibility:
- Scott Genius 900 Tuned 2016
- Scott Genius 700 Premium 2016
- Scott Genius 700/900 Tuned 2015
- Scott Genius 700 Premium 2015
- Mount:
- Direct Mount
- Over Locknut Dimension:
- 12 x 142 mm
- Manufacturer Number:
- 235288

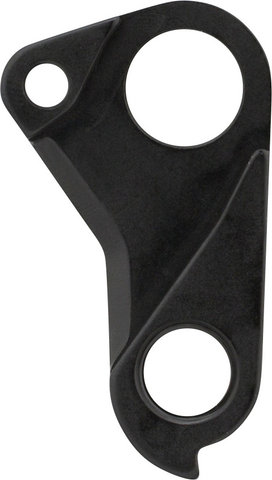

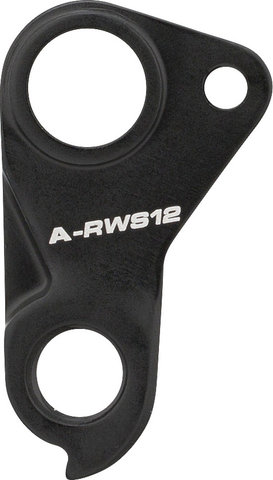

black / type 2:
Compatibility:
- Scott Genius 900 Tuned 2016
- Scott Genius 700 Premium 2016
- Scott Genius 700/900 Tuned 2015
- Scott Genius 700 Premium 2015
- Mount:
- non-direct mount
- Over Locknut Dimension:
- 12 x 142 mm
- Manufacturer Number:
- 219577
Note:
Shimano Direct Mount:
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs no longer have this mount, and are connected directly to the designated frame/dropout. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.
Contents:
- 1 x Scott derailleur hanger
