Scott Derailleur Hanger for Scale Aluminium as of 2017

Derailleur hanger for Scott Scale aluminium frame, model year 2017. Depending on the actuator make, a direct mount or a non-direct mount derailleur hanger is fitted as standard.

Specifications:

Over Locknut Dimension:

12 x 148 mm, 10 x 135 mm

Mount:

direct mount, non-direct mount

Models:

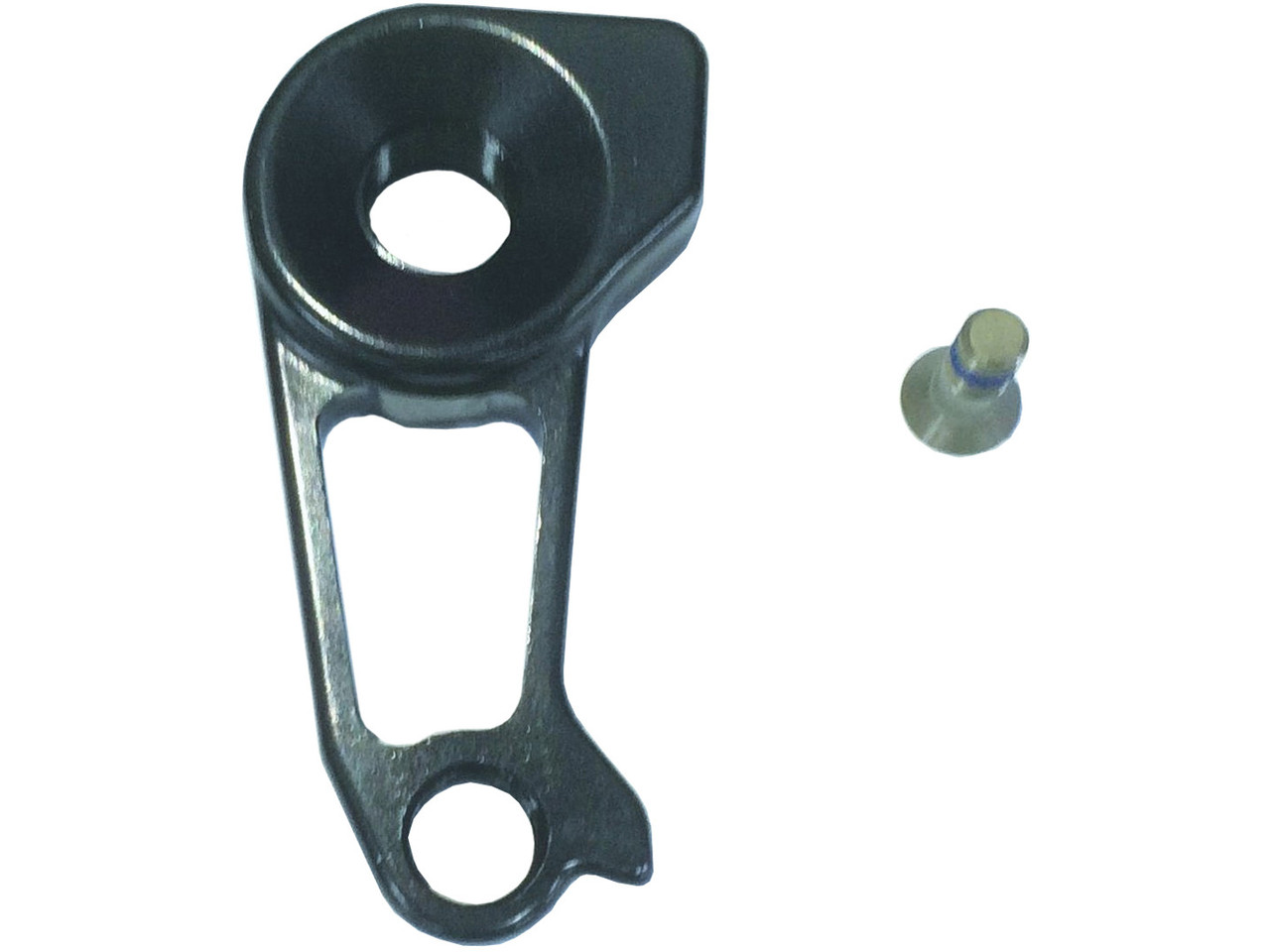

black / type 1:
Compatibility:

• Scott Scale 710 2018
• Scott Scale 720 2018
• Scott Scale 730 2018

Mount:

Direct Mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

235288

black / type 2:
Compatibility:

• Scott Scale 710 2018
• Scott Scale 720 2018
• Scott Scale 730 2018

Mount:

non-direct mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

219577

black / type 3:
Compatibility:

• Scott Scale 940 2018
• Scott Scale 950 2018

Mount:

Direct Mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

254093

black / type 4:
Compatibility:

• Scott Scale 940 2018
• Scott Scale 950 2018

Mount:

non-direct mount

Over Locknut Dimension:

12 x 148 mm

Manufacturer Number:

254092

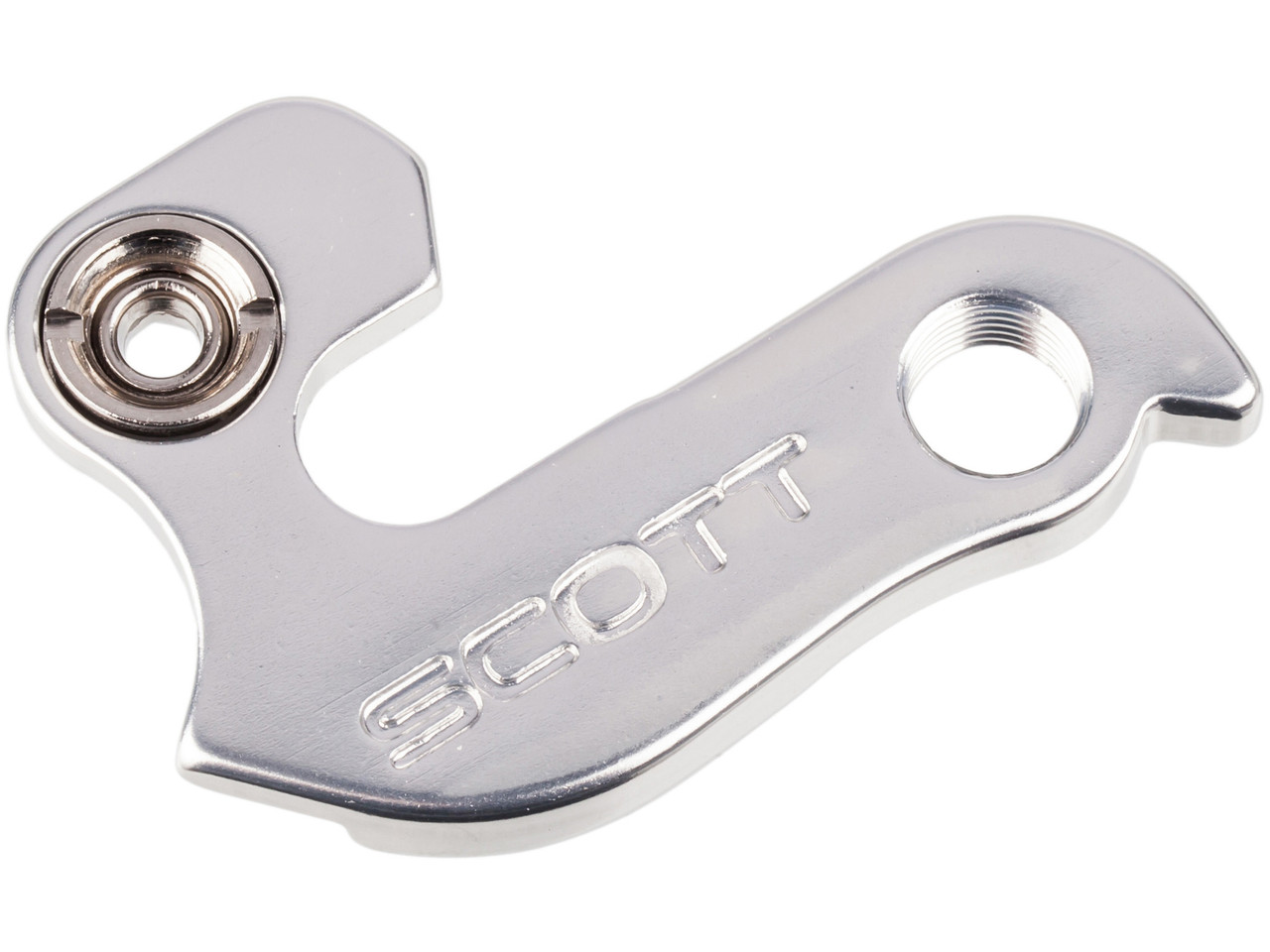

silver / type 5:
Compatibility:

• Scott Scale 960 2018
• Scott Scale 970 2018
• Scott Scale 980 2018
• Scott Scale 990 2018
• Scott Scale 740/940 2017
• Scott Scale 745/945 2017
• Scott Scale 750/950 2017
• Scott Scale 760/960 2017
• Scott Scale 765/965 2017
• Scott Scale 770/970 2017

Mount:

non-direct mount

Over Locknut Dimension:

10 x 135 mm

Manufacturer Number:

206375

Note:
Shimano Direct Mount:
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs no longer have this mount, and are connected directly to the designated frame/dropout. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.

Contents:

• 1 x Scott derailleur hanger
