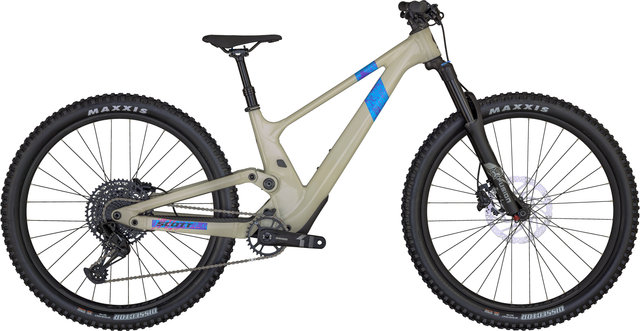

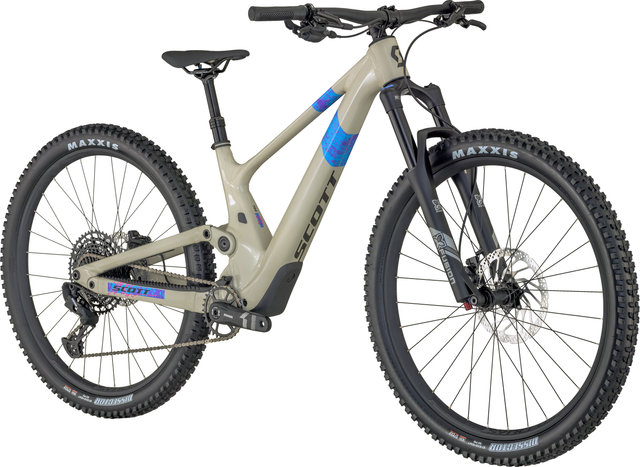

Scott Genius 700 27.5" Kids' Mountain Bike

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

27.5"

Front Travel:

150 mm

Rear Travel:

150 mm

Sizes:

S

Front Triangle Material:

aluminium

Rear Triangle Material:

aluminium

Components:

Frame:

Scott Genius 6061 aluminium, Integrated Suspension Technology, 4 Link kinematic, adjustable head angle, internal cable routing, 12 x 148 mm Boost with 55 mm chain line

Fork:

X-Fusion Sweep Boost RC 27.5“, Air Kids Bike Tune, 15 x 110 mm (Boost)

Stem:

Leadtec, 40 mm, 7°, 31.8 mm, 1 1/8

Handlebars:

Syncros Hixon 2.0 aluminium, 12 mm Rise, 9° Backsweep

Grips:

Syncros Performance XC Lock-On

Rear Shock:

X-Fusion 02 Pro R Trunnion, Kids Bike Tune, Rebound Adjust, 185 x 55 mm

Remote System:

Syncros Remote Lever I-Spec II

Headset:

Syncros - Acros ZS56/28.6 - ZS56/40 MTB, 0.6° head angle adjustment, internal cable routing

Seatpost:

Syncros Duncan Dropper Post, 31.6 mm, Travel: 80 mm

Saddle:

Syncros Future Pro

Crank:

SRAM X1 1000 CL55 Eagle DUB with 30 teeth

Pedals:

none

Brakes:

Shimano BR-MT 500, Shimano SM-RT30 Center Lock rotors, 203 mm (front) / 180 mm (rear)

Shift Lever:

SRAM NX Eagle, 12-speed

Rear Derailleur:

SRAM SX Eagle, 12-speed

Cassette:

SRAM SX PG-1210, 11-50 T, 12-speed

Chain:

SRAM CN SX Eagle, 12-speed

Rims:

Syncros X-320S, 32 holes, 30 mm internal width, Sleeve Joint

Front Hub:

Formula CL-811 Center Lock, 15 x 110 mm (Boost)

Rear Hub:

Formula CL-148S Center Lock, 12 x 148 mm (Boost)

Front Tyre:

Maxxis Dissector EXO, 27.5 x 2.4" , 60 tpi, Tubeless Ready

Rear Tyre:

Maxxis Dissector EXO, 27.5 x 2.4" , 60 tpi, Tubeless Ready

Approved For:

Weight Limit:

80 kg

Features:

• Fully suspended 27.5" mountain bike with aluminium frame, for growing young talents (from 145 cm)
• X-Fusion Kids Tune suspension
• SRAM SX Eagle 12-speed drivetrain
• Frame with integrated cable routing
• Frame integration of the shock reduces lateral movement and thus loss of power
• Head tube angle adjustable by 0.6° using turnable headset cups
• Boost Standard
• 55 mm chain line
• UDH-compatible

Geometry:

S:

Recommended Height:

145-155 cm

Stack:

601.9 mm

Reach:

442.5 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

562.7 mm

Head Tube Length:

90 mm

Chainstay Length:

440 mm

Wheelbase:

1185.9 mm

Bottom Bracket Height:

313 mm

Seat Tube Angle:

78.7°

Head Tube Angle:

65.4°

Standover Height:

690 mm

Stem Length:

40 mm

Handlebar Width:

740 mm

Crank Arm Length:

155 mm

Manufacturer Number:

293468

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Mountain Bike Scott Genius 700 27.5"
