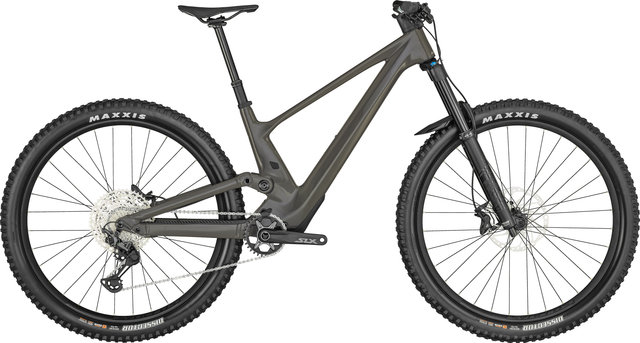

Scott Genius 920 Carbon 29" Mountain Bike

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Front Travel:

160 mm

Rear Travel:

150 mm

Sizes:

S, M, L, XL

Front Triangle Material:

carbon (HMF)

Rear Triangle Material:

aluminium (6061)

Components:

Frame:

Scott Genius Carbon HMF, integrated suspension technology, Virtual 4 Link kinematics, internal cable routing, 12 x 148 mm Boost

Fork:

Fox Racing Shox 36 GRIP Float Rhythm Air, 3 modes, Rebound Adjust, Lockout, 44 mm offset, 15 x 110 mm (Boost)

Stem:

Syncros AM 1.5, aluminium (7050), internal cable routing, 31.8 mm, 4°

Handlebars:

Syncros Hixon 1.5, aluminium, Rise: 15 mm (S, M) / 25 mm (L, XL), 8° Backsweep

Grips:

Syncros Enduro Lock-On

Rear Shock:

Fox Racing Shox Nude 5T EVOL DPS Trunnion, Scott Custom with Travel / Geo Adjust, 3 modes: Lockout / Traction Control / Descend, Custom Large Air Volume, Rebound Adjust, 185 x 55 mm

Remote System:

Scott TwinLoc 2, suspension & dropper, 3 modes

Headset:

Syncros - Acros ZS56/28.6 - ZS56/40 MTB, 0.6° head tube angle adjustment

Seatpost:

Syncros Duncan Dropper Post 1.5, 31.6 mm, travel: 140 mm (S), 160 mm (M), 170 mm (L), 200 mm (XL)

Saddle:

Syncros Tofino R 2.0, steel rails (CrMo)

Crank:

Shimano SLX FC-M7120-1 Hollowtech II, 32 T, with SRAM DUB PF 92 MTB Wide bottom bracket

Pedals:

none

Brakes:

Shimano Deore M6120 Disc, 4 pistons, with Shimano SM-RT64 CL brake rotors, 203 mm (front) / 180 (rear)

Shift Lever:

Shimano Deore SL-M6100-IR Rapidfire Plus, I-Spec EV

Rear Derailleur:

Shimano XT RD-M8100 SGS Shadow Plus, 12-speed

Cassette:

Shimano Deore CS-M6100-12, 10 - 51 T

Chain:

Shimano Deore CN-M6100

Rims:

Syncros X-30S, 32/32 hole, Sleeve Joint, tubeless ready

Spokes:

stainless steel, black, 15G / 1.8 mm

Front Hub:

Formula CL-811, 15 x 110 mm (Boost)

Rear Hub:

Formula CL-148M, 12 x 148 mm (Boost)

Front Tyre:

Maxxis Dissector 3C MaxxTerra EXO folding tyre, 2.6" , 60 tpi, Tubeless Ready

Rear Tyre:

Maxxis Dissector 3C MaxxTerra EXO folding tyre, 2.6" , 60 tpi, Tubeless Ready

Approved For:

Weight Limit:

128 kg

Rotor Size (max.):

203 mm (front), 180 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainring Size (max.):

1x, 34 T

Features:

• full-suspension trail bike made of carbon and aluminium with Fox suspension
• protected integrated rear shock for low centre of gravity and efficient power transmission
• rear shock easily accessible for adjustments etc. through flap in down tube
• rear shock with Nude technology with two positive air chambers and additional reservoir for long descents
• TwinLoc suspension system with remote for fine tuning the suspension and 3 riding modes
• Shimano Deore brakes with 4 pistons for powerful braking
• adjustable head tube angle, requires removal of the handlebars and turning of the headset
• internal cable routing, also through the headset for a tidy cockpit
• proven single-pivot kinematics
• 55 mm chainline
• Boost Standard

Geometry:

S:

Recommended Height:

160 - 170 cm

Stack:

617 mm

Reach:

430 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

570.1 mm

Head Tube Length:

90 mm

Chainstay Length:

440 mm

Wheelbase:

1182 mm

Bottom Bracket Height:

342.5 mm

BB Drop:

33 mm

Seat Tube Angle:

76.8°

Head Tube Angle:

65.1°

Standover Height:

728.5 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

M:

Recommended Height:

170 - 180 cm

Stack:

626.1 mm

Reach:

460 mm

Seat Tube Length:

410 mm

Effective Top Tube Length:

602.2 mm

Head Tube Length:

100 mm

Chainstay Length:

440 mm

Wheelbase:

1216 mm

Bottom Bracket Height:

342.5 mm

BB Drop:

33 mm

Seat Tube Angle:

77.1°

Head Tube Angle:

65.1°

Standover Height:

738.5 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

175 mm

L:

Recommended Height:

180 - 190 cm

Stack:

644.2 mm

Reach:

485 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

631.3 mm

Head Tube Length:

120 mm

Chainstay Length:

440 mm

Wheelbase:

1249 mm

Bottom Bracket Height:

342.5 mm

BB Drop:

33 mm

Seat Tube Angle:

77.2°

Head Tube Angle:

65.1°

Standover Height:

753.5 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

175 mm

XL:

Recommended Height:

180 - 200 cm

Stack:

657.8 mm

Reach:

510 mm

Seat Tube Length:

470 mm

Effective Top Tube Length:

659.3 mm

Head Tube Length:

135 mm

Chainstay Length:

440 mm

Wheelbase:

1281 mm

Bottom Bracket Height:

342.5 mm

BB Drop:

33 mm

Seat Tube Angle:

77.4°

Head Tube Angle:

65.1°

Standover Height:

768.5 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

175 mm

Manufacturer Number:

290145

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Scott Genius 920 Carbon 29" Mountain Bike
