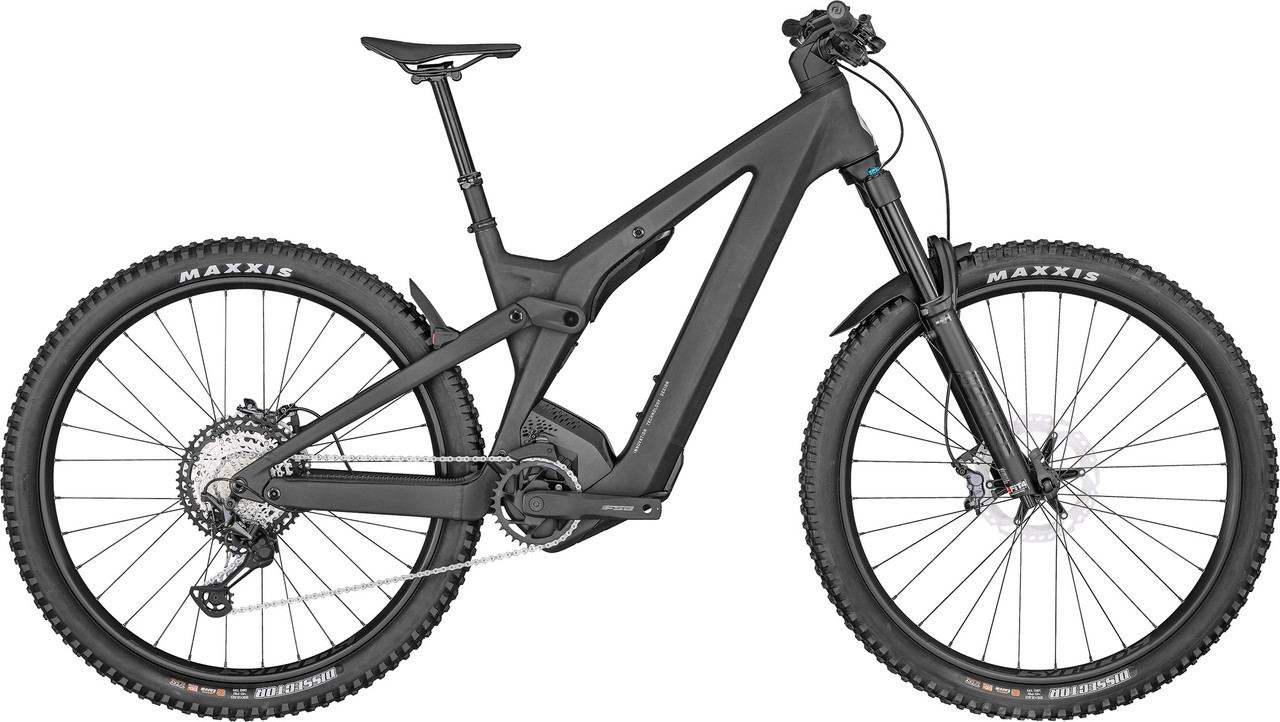

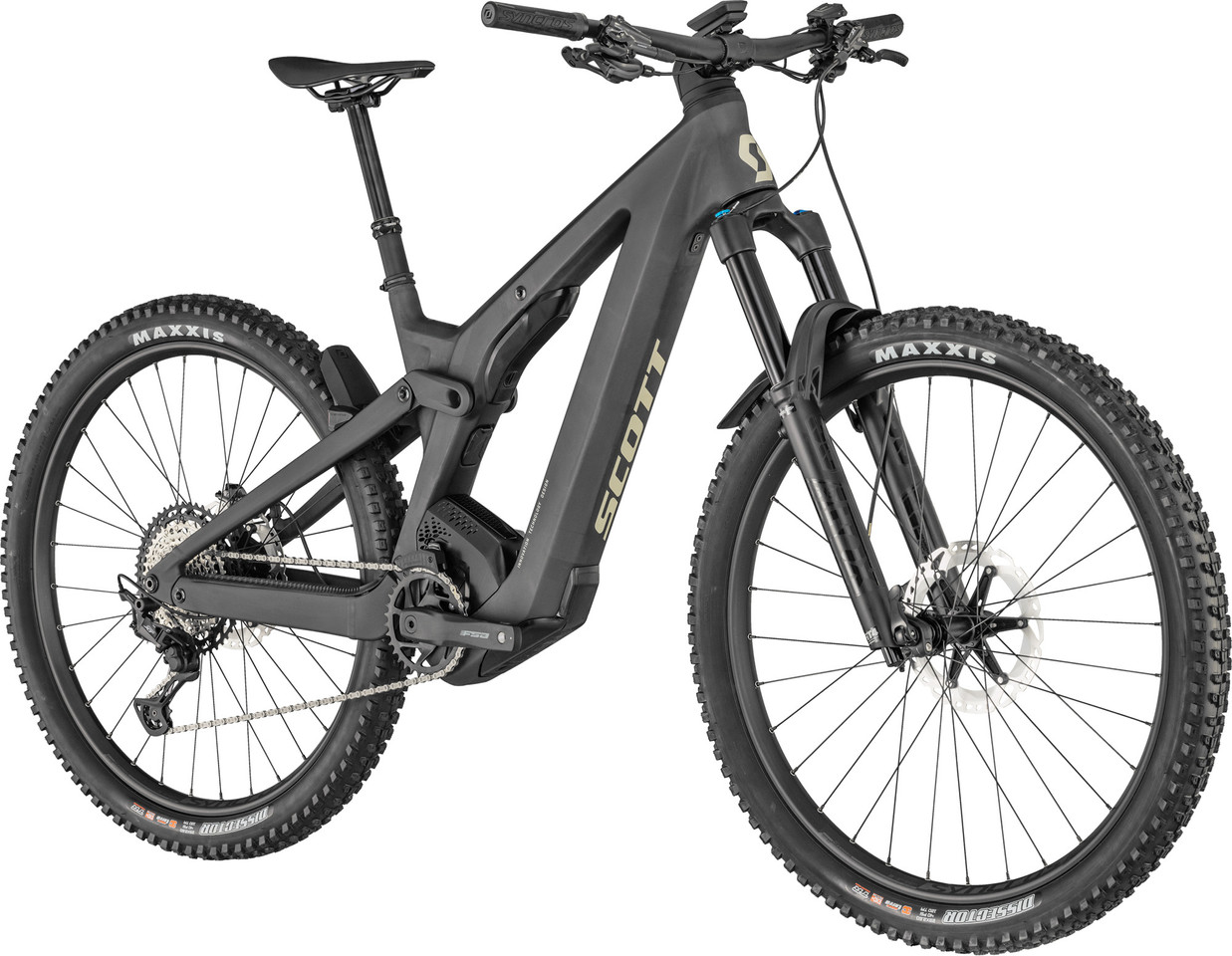

Scott Patron eRIDE 900 Carbon E-Mountain Bike

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Front Travel:

160 mm

Rear Travel:

160 mm

Sizes:

S, M, L, XL

Front Triangle Material:

Carbon

Rear Triangle Material:

aluminium

E-Motor:

Type:

mid-drive motor

Motor Type:

Bosch Performance CX

Pedal Assist (max.):

25 km/h

Battery Type:

Bosch Performance CX

Capacity:

750 Wh

Display:

Bosch LED Remote & Kiox 300

Components:

Frame:

carbon, aluminium rear triangle, Virtual 4 Link linkage design, 12 x 148 mm Boost, 1.8"

Fork:

Fox Racing Shox38 Perfect Air, eMTB+, Fit4, tapered, Rebound Adjust, 3 settings, quick release, 15 x 110 mm Boost, 44 mm offset, 160 mm travel

Stem:

Syncros AM 1.5, 4°, 31.8 mm, 1 1/8"

Handlebars:

Syncros Hixon 1.5, 12 mm Rise, 9° Backsweep, 780 mm

Grips:

Syncros Pro Lock-On

Rear Shock:

Fox Racing ShoxFloat EVOL eRIDE Trunnion, 3 stages, Rebound Adjust, 160 mm travel, 60 mm stroke

Remote System:

Scott TwinLoc 2, Suspension & Dropper, 3 stages

Headset:

Acros ZS66/74, 1.8"

Seatpost:

Syncros Duncan Dropper 2.5, 31.6 mm, 125 mm (S) / 150 mm (M, L), 175 mm (XL)

Saddle:

Syncros Tofino Regular 1.5, titanium saddle rails

Crank:

FSA CK-745, 165.0 mm, steel chainring, 34 teeth

Pedals:

none

Brakes:

Shimano SLX BR-M7120, 4 piston, center lock disc, 203 mm

Shift Lever:

Shimano SL-M8100

Rear Derailleur:

Shimano XT, 12-speed

Cassette:

Shimano CS-M8100, 10-51 Tooth

Chain:

Shimano CN-M8100

Fenders:

Syncros Trail 2 36/38, Syncros eRide light integrated

Rims:

Syncros SilveMD30 Pin Joint, 30 mm internal width, 32 holes, Tubeless Ready

Spokes:

stainless steel

Front Hub:

Formula CL-811, Center Lock Disc, 15 x 110 mm Boost

Rear Hub:

Formula ECT-1481, Center Lock Disc, 12 x 148 mm Boost

Front Tyre:

Maxxis Dissector, 29 x 2.6" , 120 tpi, Tubeless Ready, Exo+, 3C Maxx Terra

Rear Tyre:

Maxxis Dissector, 29 x 2.6" , 120 tpi, Tubeless Ready, Exo+, 3C Maxx Terra

Approved For:

Weight Limit:

128 kg (system weight)

Features:

• carbon full suspension e-bike for bike park rides
• mounting option for centre kickstands
• fender with integrated rear light
• removable battery
• low centre
• Boost Standard
• handlebar stem unit
• internal cable routing

Geometry:

(based on a fork axle to crown length of 567.1 mm)
S:

Stack:

634.8 mm

Reach:

432.7 mm

Seat Tube Length:

410.5 mm

Effective Top Tube Length:

579.4 mm

Head Tube Length:

120 mm

Chainstay Length:

454 mm

Wheelbase:

1221.7 mm

Bottom Bracket Height:

347 mm

BB Drop:

30 mm

Seat Tube Angle:

77°

Head Tube Angle:

64.5°

Standover Height:

766 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

M:

Stack:

642.2 mm

Reach:

445.8 mm

Seat Tube Length:

440.5 mm

Effective Top Tube Length:

595 mm

Head Tube Length:

125 mm

Chainstay Length:

454 mm

Wheelbase:

1231.7 mm

Bottom Bracket Height:

347 mm

BB Drop:

30 mm

Seat Tube Angle:

76.9°

Head Tube Angle:

65°

Standover Height:

766 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

L:

Stack:

651.3 mm

Reach:

473.6 mm

Seat Tube Length:

470.4 mm

Effective Top Tube Length:

625.6 mm

Head Tube Length:

135 mm

Chainstay Length:

454 mm

Wheelbase:

1263.7 mm

Bottom Bracket Height:

347 mm

BB Drop:

30 mm

Seat Tube Angle:

76.9°

Head Tube Angle:

65°

Standover Height:

766 mm

Stem Length:

60 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

XL:

Stack:

651.3 mm

Reach:

473.6 mm

Seat Tube Length:

470.4 mm

Effective Top Tube Length:

625.6 mm

Head Tube Length:

135 mm

Chainstay Length:

454 mm

Wheelbase:

1263.7 mm

Bottom Bracket Height:

347 mm

BB Drop:

30 mm

Seat Tube Angle:

76.9°

Head Tube Angle:

65°

Standover Height:

766 mm

Stem Length:

60 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Wheel Size:

29"

Manufacturer Number:

286514

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Scott Patron eRIDE 900 Carbon E-Mountain Bike
