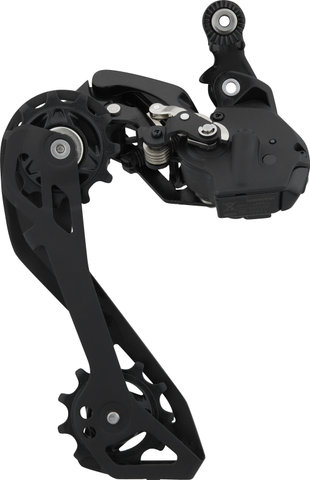

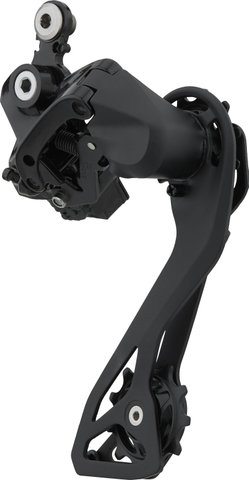

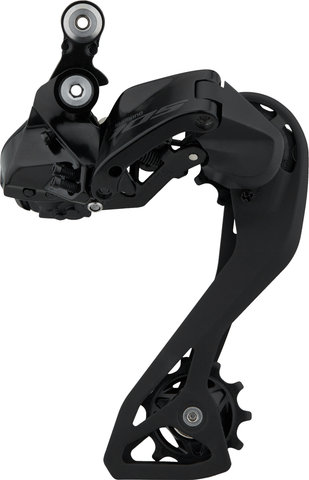

Shimano 105 Di2 Rear Derailleur Shadow RD-R7150 12-speed

Shimano 105 Di2 RD-R9150 Rear Derailleur - High-tech centre with shadow design

The RD-R7150 Di2 is the first electronic rear derailleur from the Shimano 105 series. Due to its generous total capacity of 41 teeth, you can shift 12-speed cassettes with a largest sprocket of 34 to 36 teeth, which is also a novelty in road cycling. The compact unit, which only weighs about 40 grams more than the Ultegra model due to its high aluminium content, contains a lot of high-tech features: the wireless unit for wireless communication with the STIs, the charging port, which you can use to easily recharge your shifters and derailleurs with the help of the matching charging cable, and a function button. You can use it to adjust the rear derailleur, check the battery status, change the shift mode from manual to Synchro and Semi-Synchro Shift or establish a Bluetooth connection to a bike computer or smartphone. An LED display helps you to do this. The rear derailleur is connected to the battery via a cable, from which a cable also runs to the front derailleur. It impresses with its fast, precise shifting processes as well as with its Flat Shadow design, which optimises the shifting behaviour and prevents damage.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

105 Di2 R7150

Application:

Road

Gearing:

12-speed

Mount:

standard (Direct Mount compatible)

Capacity:

41-tooth

Compatibility:

Shimano Road 12-speed

Compatibility - Chains:

HG 12-speed

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

aluminium, steel, stainless steel, composite material (GFRP)

Compatibility:

Power Cable:

EW-SD300-I (1 x connection)

Shift/Brake Lever:

ST-R7170, ST-R8150, ST-R8170, ST-R8060, ST-R9250, ST-R9270, ST-R9160, ST-R9180

Cassette:

CS-R7100-12, CS-R7101-12, CS-HG710-12, CS-R8100-12 (11-34 only), CS-R8101-12 (11-34 only), CS-R9200-12 (11-34 only)

Chain:

CN-M8100, CN-M9100, CN-M7100, CN-M6100

Charging Cable:

EW-EC300

Features:

• function button, charging port and wireless system in one compact unit
• Di2 wireless chip with low interference probability, high processing speed and low power consumption
• LED status display (battery, pairing, settings mode, Synchro Shift)
• takes over the function of previous wireless units in establishing a wireless connection with compatible cycling computers
• flat design
• connected to battery via cable
• firmware updates via E-Tube Project
• 4 fluorine-coated joint bushes
• painted cage

Technology:

Shadow RD
Shadow rear derailleurs from Shimano have a very flat profile, allowing for a more aggressive riding style by minimising the risk of getting stuck on obstacles. In addition, the single preload ensures that the rear derailleur does not hit the chain stay even on very uneven ground. All of this contributes to a quiet, clean-operating gearshift.

Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

D-Fly
Shimano D-Fly is a Near Field Communication (NFC) network that allows Shimano E-Tube electronic components (Di2, STEPS) and smartphones or compatible bike computers to communicate with each other. For example, it is possible to view information about the components on the display or to track power meter data. Shimano provides the E-Tube Ride app just for this purpose. D-Fly is compatible with ANT+, ANT as well as Bluetooth. Network partners include Garmin, Wahoo, Sigma and Cateye for Di2 components and Garmin and Sigma for STEPS components.

Shimano Synchronized Shift
Shimano's synchronised shifting function is a shifting mode that automatically matches the Di2 rear derailleur and Di2 front derailleur. It is activated either via the E-Tube platform or via the rear derailleurs with a function button. Synchro Shift means that the front derailleur automatically selects a suitable gear depending on the position of the rear derailleur, while Semi-Synchro Shift means that a suitable rear derailleur position is automatically set when you operate the front derailleur. This gives you the advantage that you only have to concentrate on one side of the shifting process and are not thrown off-rhythm by sudden unfavourable changes to the gear ratio.

Models:

long:

Max. Largest Sprocket Teeth:

36-tooth

Min. Largest Sprocket Teeth:

34-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

16-tooth

Total Capacity:

41-tooth

Manufacturer Number:

IRDR7150A

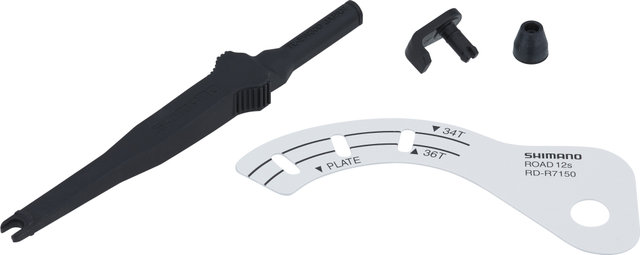

Contents:

• 1 x Shimano 105 Di2 RD-R7150 rear derailleur
• 1 x Shimano TL-EW300 cable tool
• 1 x adjustment tool
