Shimano 105 FC-5800 11-speed Chainring

The Shimano 105 11-speed Chainring for FC-5800 Cranks

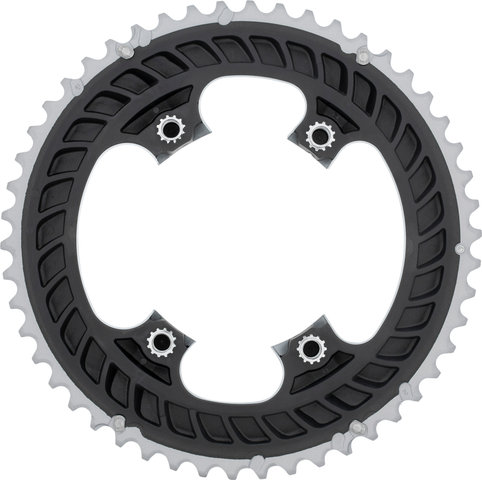

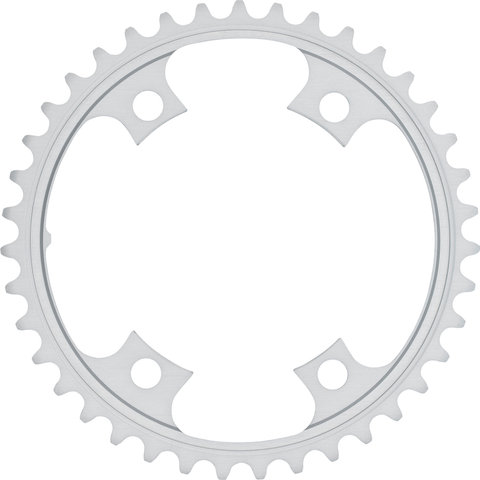

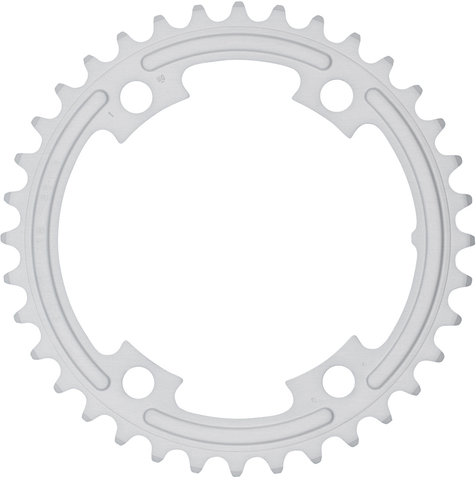

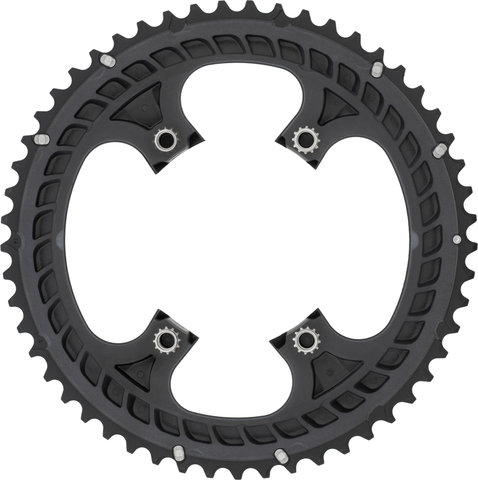

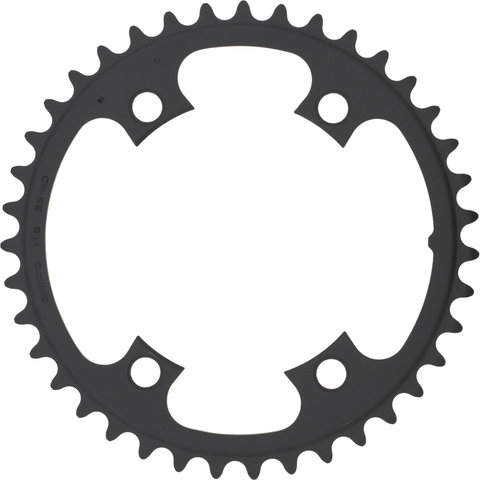

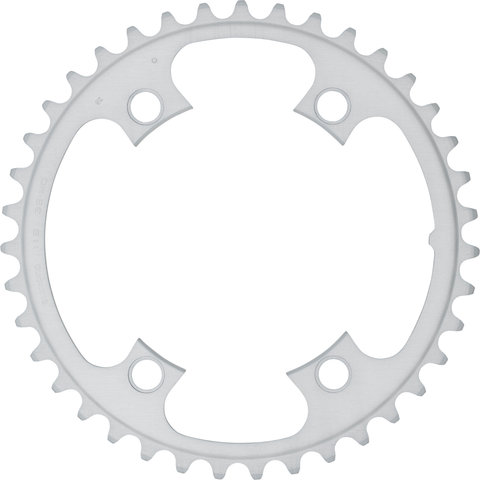

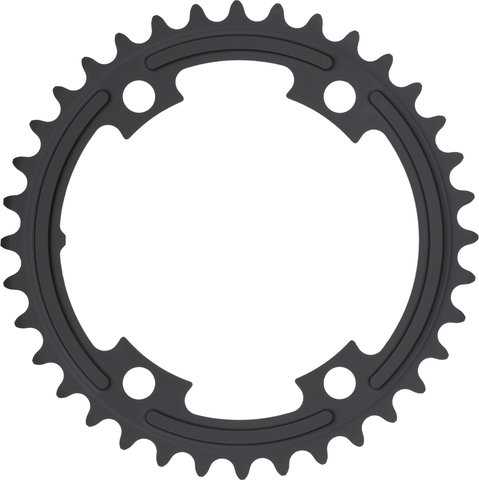

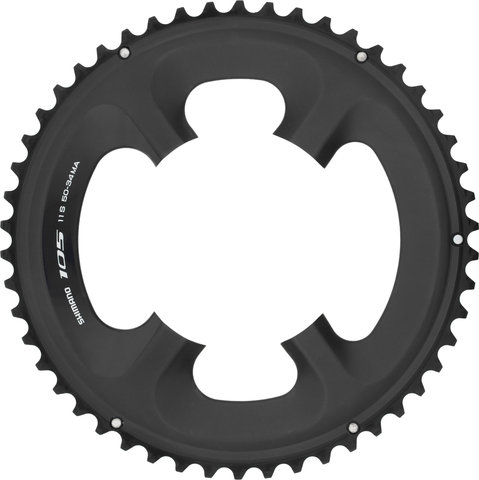

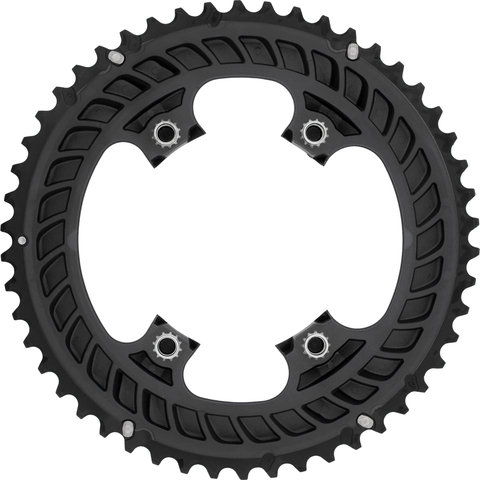

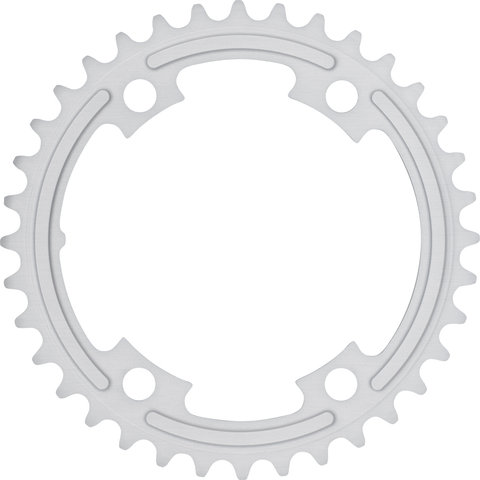

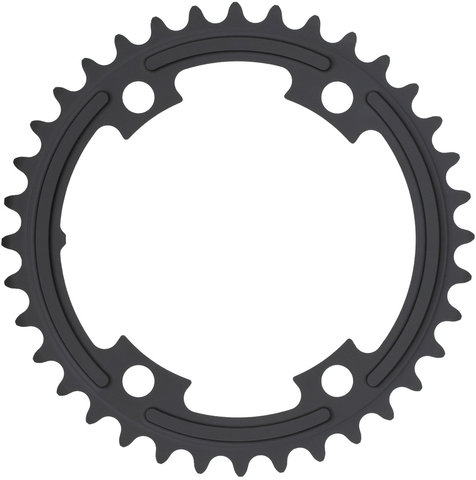

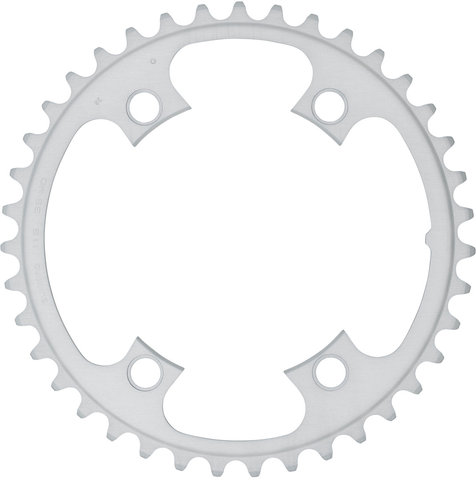

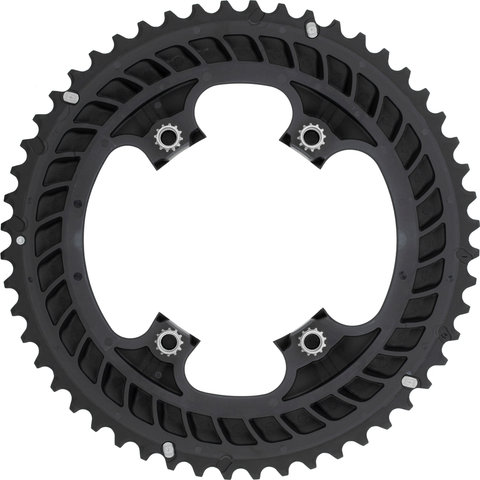

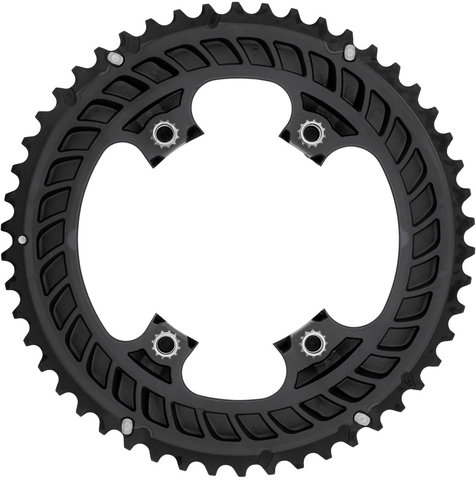

The Shimano 105 FC-5800 11-speed chainring has 4 arms with asymmetrical holes and a bolt circle diameter of 110 mm. It can be combined in many ways and is available in silver or black. The small chainrings are made of aluminium, the large ones of an aluminium-plastic composite.

Specifications:

Application:

Road

Mount:

110 mm pitch circle, 4-arm asymmetrical

Teeth:

34 t, 36 t, 39 t, 50 t, 52 t, 53 t

Gearing:

2x11-speed

Technical Information:

Combinations:

34-50 t, 36-52 t, 39-53 t

Material:

aluminium (34 to 39 t), aluminium/composite (GFRP 50 t to 53 t)

Compatibility:

• 105 FC-5800
• also fits Ultegra FC-6800

Features:

• silver or black
• anodised

Models:

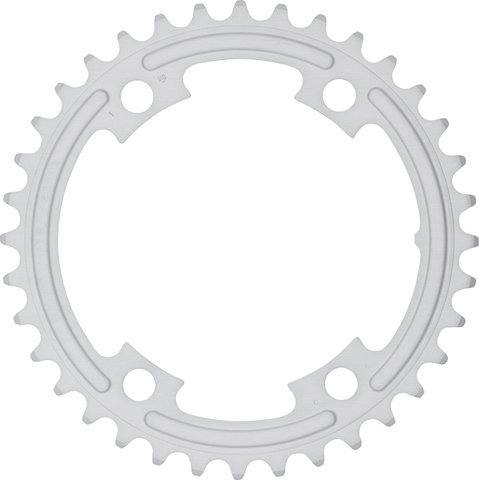

silver / 34-tooth:

Type:

MA

Manufacturer Number:

Y-1PH34010

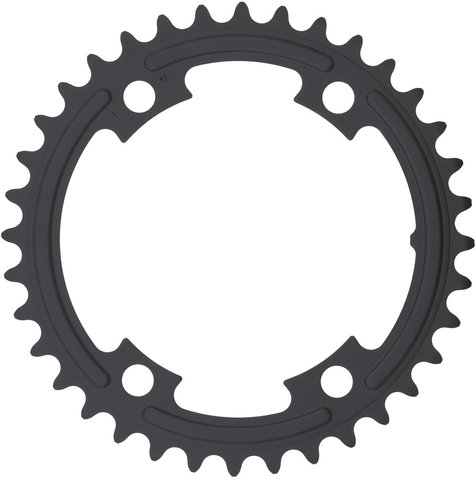

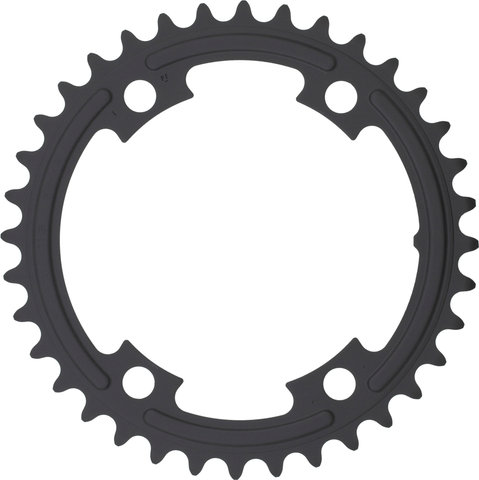

black / 34-tooth:

Type:

MA

Manufacturer Number:

Y-1PH34000

silver / 36-tooth:

Type:

MB

Manufacturer Number:

Y-1PH36010

black / 36-tooth:

Type:

MB

Manufacturer Number:

Y-1PH36020

silver / 39-tooth:

Type:

MD

Manufacturer Number:

Y-1PH39010

black / 39-tooth:

Type:

MD

Manufacturer Number:

Y-1PH39000

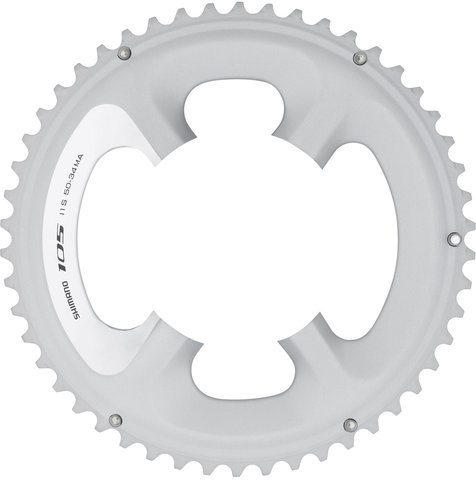

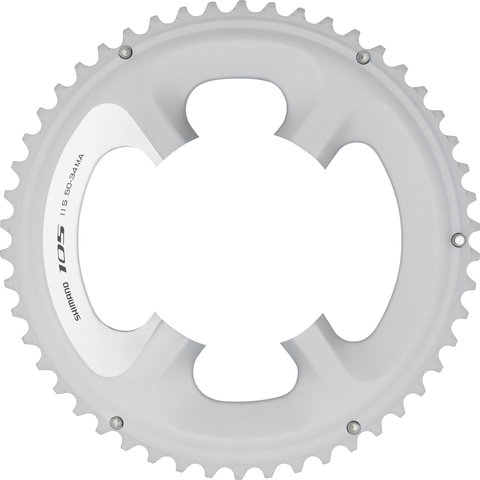

silver / 50-tooth:

Type:

MA

Manufacturer Number:

Y-1PH98100

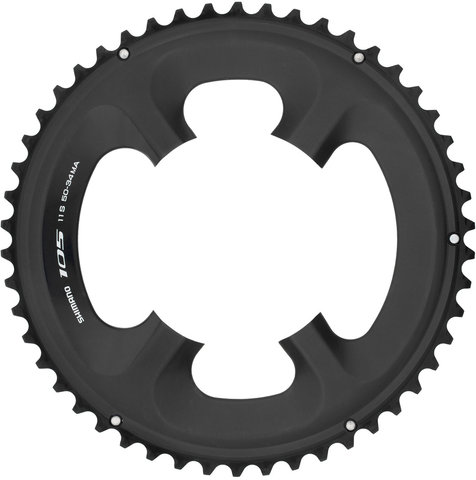

black / 50-tooth:

Type:

MA

Manufacturer Number:

Y-1PH98090

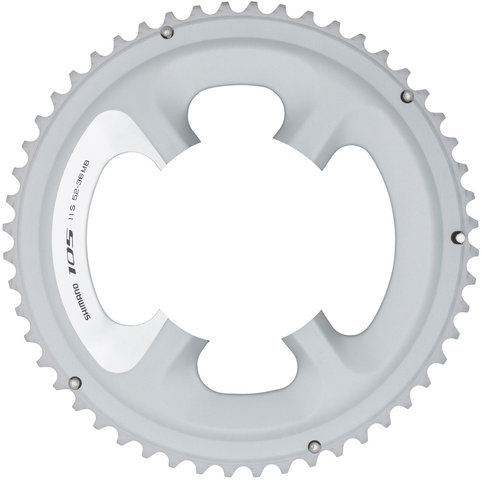

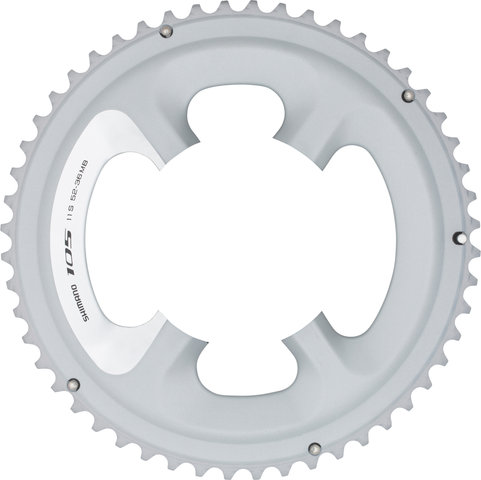

silver / 52-tooth:

Type:

MB

Manufacturer Number:

Y-1PH98120

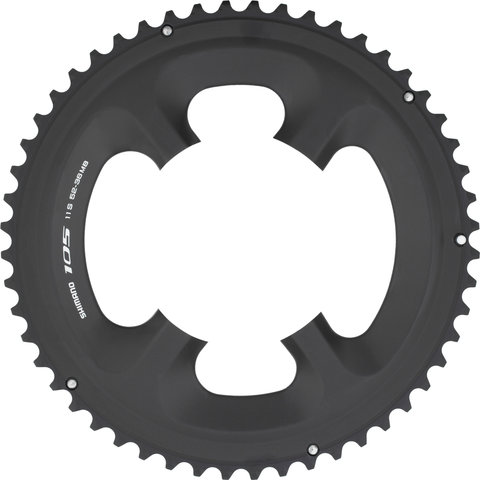

black / 52-tooth:

Type:

MB

Manufacturer Number:

Y-1PH98110

silver / 53-tooth:

Type:

MD

Manufacturer Number:

Y-1PH98140

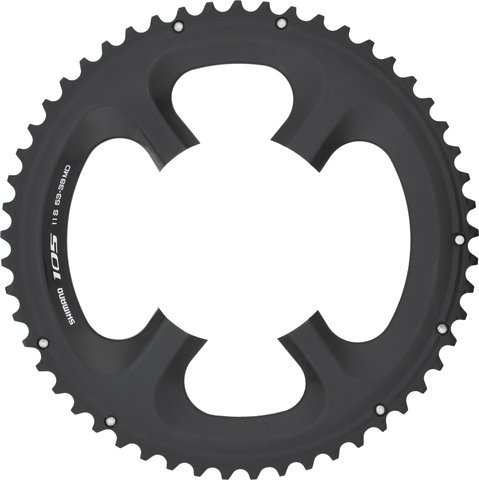

black / 53-tooth:

Type:

MD

Manufacturer Number:

Y-1PH98130

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano 105 FC-5800 chainring
