Shimano 105 FC-R7000 11-speed Chainring

The Shimano 105 11-speed Chainring for FC-R7000 Cranks

This Shimano 11-speed chainring is a spare part for the 105 FC-R7000 crank. It works together with the other front drive components precisely and quickly. The 4-arm chainrings have an asymmetrical 110 mm bolt circle diameter and can be assembled into three different combinations. The versions 34 to 39 teeth are made of aluminium, 50 to 53 teeth of an aluminium-plastic composite. Of course, there are two different colour options so that the chainring can be matched to the colour of the crank.

Specifications:

Application:

Road, Cyclocross, Gravel

Mount:

110 mm pitch circle, 4-arm asymmetrical

Teeth:

34 t, 36 t, 39 t, 50 t, 52 t, 53 t

Gearing:

2x11-speed

Technical Information:

Combinations:

34-50 t, 36-52 t, 39-53 t

Material:

Aluminium (34 to 39 t), aluminium/composite material (GFRP, 50 to 53 t)

Compatibility:

• 105 FC-R7000
• also fits Ultegra FC-R8000

Features:

• anodised

Models:

34 tooth:

Type:

MS

Manufacturer Numbers:

Y-1WV34000 (black), Y-1WV34010 (silver)

36 tooth:

Type:

MT

Manufacturer Numbers:

Y-1WV36000 (black), Y-1WV36010 (silver)

39 tooth:

Type:

MW

Manufacturer Numbers:

Y-1WV39000 (black), Y-1WV39010 (silver)

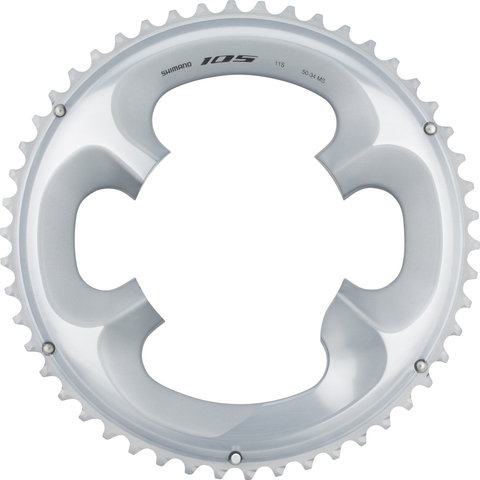

50 tooth:

Type:

MS

Manufacturer Numbers:

Y-1WV98010 (black), Y-1WV98020 (silver)

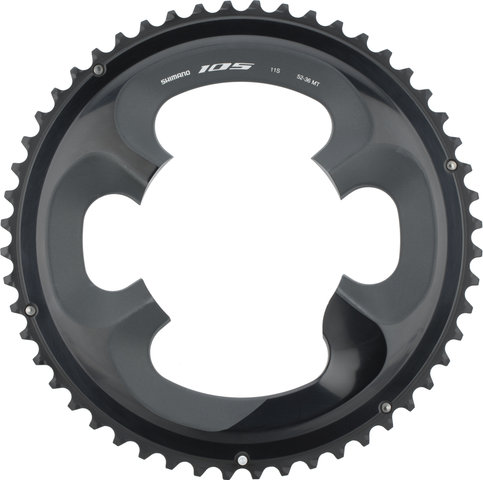

52 tooth:

Type:

MT

Manufacturer Numbers:

Y-1WV98030 (black), Y-1WV98040 (silver)

53 tooth:

Type:

MW

Manufacturer Numbers:

Y-1WV98050 (black), Y-1WV98060 (silver)

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano 105 FC-R7000 chainring
