Shimano 105 STI ST-R7020 2-/11-speed Shift/Brake Lever

The 105 ST-R7020 Shift/Brake Lever by Shimano - Fast shifting, safe braking

The Shimano 105 ST-R7020 STI shifter/brake lever can shift 2-speed or 11-speed (with Dual Control technology) and control a hydraulic disc brake - perfect for cyclocross or gravel use, but also for the road when maximum braking performance is required in difficult conditions. Both the revised shifting unit with shorter lever travel and the reduced hydraulics are impressive, with faster shifting processes and a pleasing appearance as a result. The refined ergonomics and generous grip width adjustment also speak for themselves. A shift cable with friction reducing coating (Optislick) is included.

Specifications:

Series:

105 R7000

Application:

Cyclocross, Gravel, Road

Gearing:

2x, 11-speed

Shifting System:

mechanical

Brake Type:

hydraulic

Technical Information:

Brake Lever Material:

aluminium

Lever Body Material:

composite

Clamp Material:

steel

Hose:

SM-BH90-JK-SSR, SM-BH90-J-SSR (not included)

Actuation:

mineral oil

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

Reach Adjust

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Rear Derailleur:

RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Caliper:

BR-R7070 (recommended), BR-R8070, BR-R9170, BR-R9270, BR-R9170, BR-R8170, BR-R7170, BR-R7070, BR-RS785, BR-RX820, BR-RX820-LE, BR-RX810, BR-RX400, BR-4770

Additional Brake Lever:

BL-RX812

Features:

• revised shift unit for fast and intuitive shifting
• extended reach adjustment (15 mm)
• reduced hydraulic interior for balanced ergonomics of rim and disc brake configurations
• max. number of gears per shift: 2 (main lever, rear)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• OT-SP41 housing recommended (OT-RS900 to rear derailleur)
• straight hose connection
• funnel venting with M7 funnel (TL-BR002)
• shift lever made of resin/steel, brake lever painted

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Models:

2-speed:

Mount:

left

Gearing:

2x

Manufacturer Number:

I-STR7020LIL

11-speed:

Mount:

right

Gearing:

11-speed

Manufacturer Number:

I-STR7020RIL

Contents:

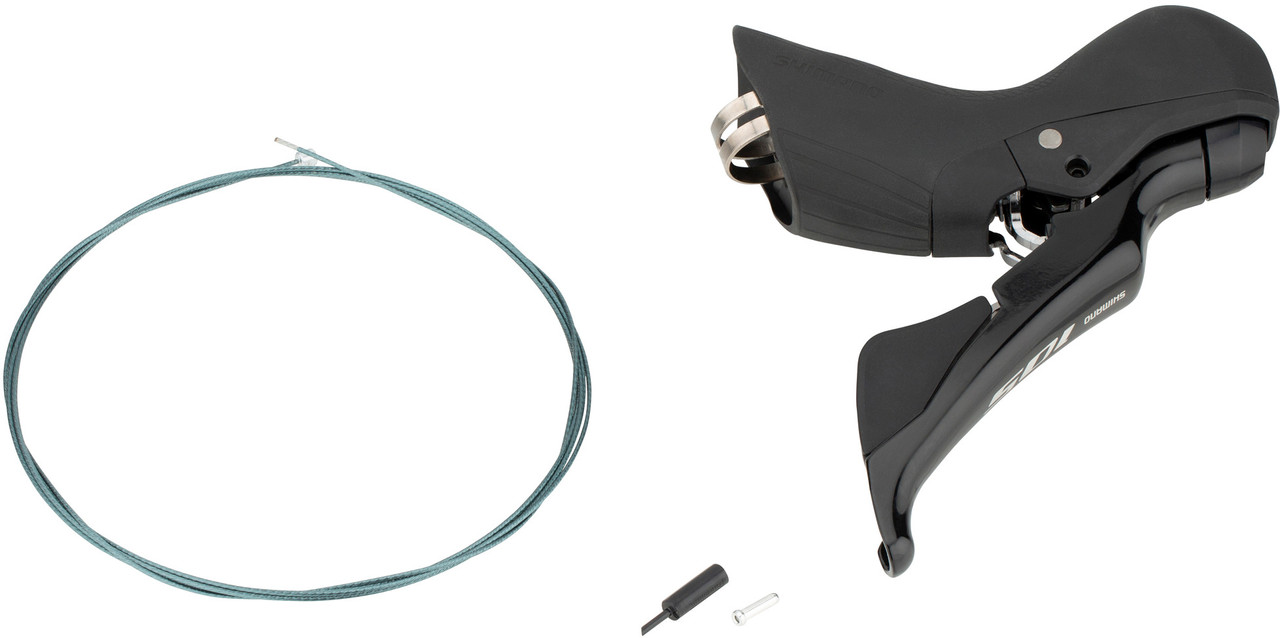

• 1 x Shimano 105 ST-R7020 shift / brake lever
• 1 x Shimano shift cable, 1800 mm or 2200 mm
