Shimano BB-RS500-PB Hollowtech II Press Fit 41 x 86.5 mm Bottom Bracket

Shimano BB-RS500-PB bottom bracket - Press Fit for GRX, Tiagra and other cranks

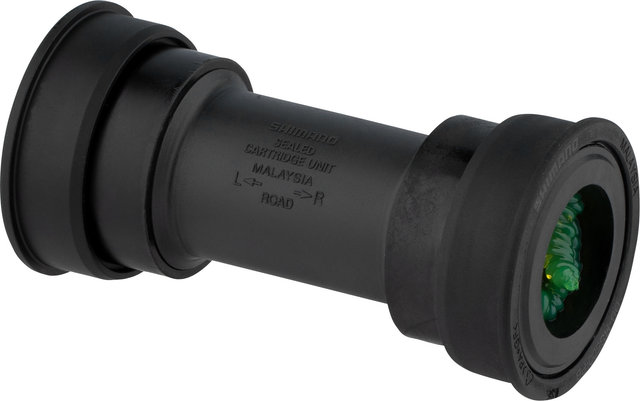

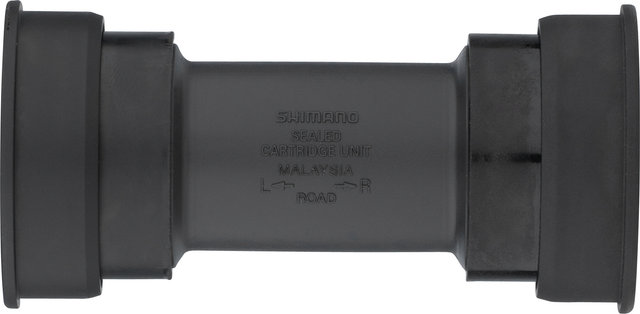

The Press Fit BB-RS500-PB bottom bracket is recommended by Shimano for the GRX, Tiagra, Sora and Claris series. This allows a Hollowtech II or 2-piece crank with a 24 mm axle to be mounted in a road frame with an 86.5 mm bottom bracket width and a 41 mm shell diameter. The bottom bracket is made from a synthetic material and has black bearing cups.

Specifications:

Application:

Road, Gravel, City

Type:

press fit BB86

Shell Diameter:

41 mm

Shell Width:

86.5 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

synthetic resin

Compatibility:

Recommended for:

• GRX FC-RX610, FC-RX600
• Tiagra FC-4700, FC-4703
• Sora FC-R3030, FC-R3000
• Claris FC-R2030, FC-R2000
• FC-RS520, FC-RS510, FC-RS400

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Number:

E-BBRS500PB

Contents:

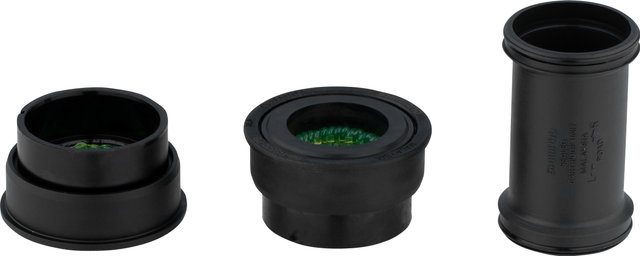

• 1 x Shimano BB-RS500-PB right bearing cup, with bearings
• 1 x Shimano BB-RS500-PB left bearing cup, with bearings
• 1 x Shimano bottom bracket centre sleeve

Order Together:

• installation tool TL-BB12
• removal tool TL-BB13
