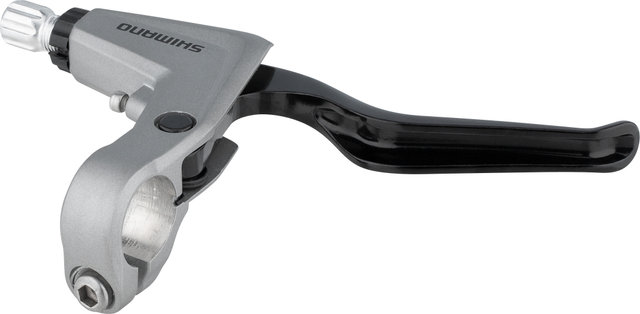

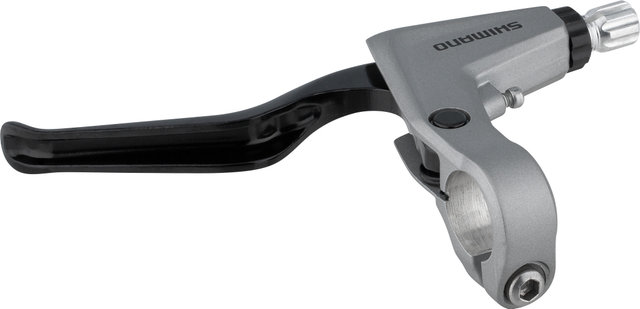

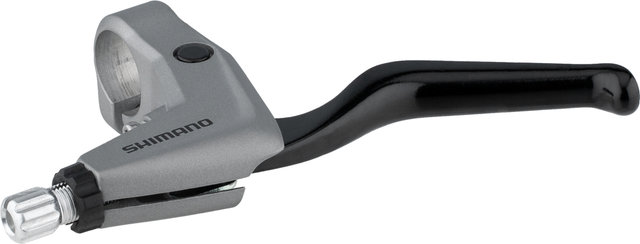

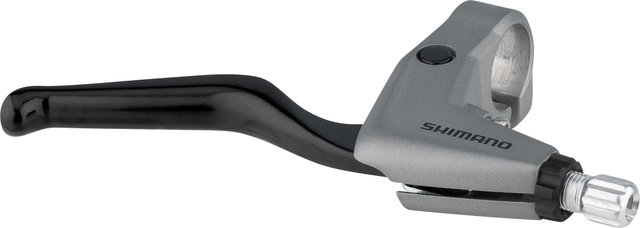

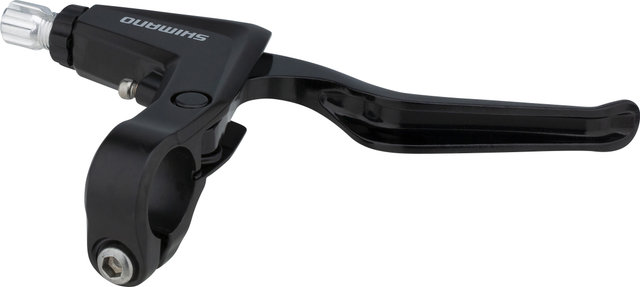

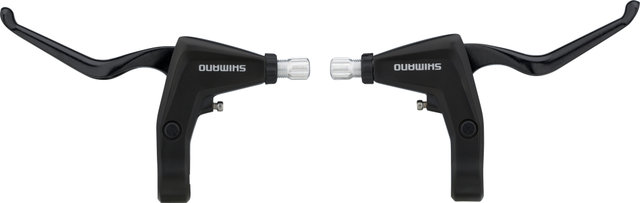

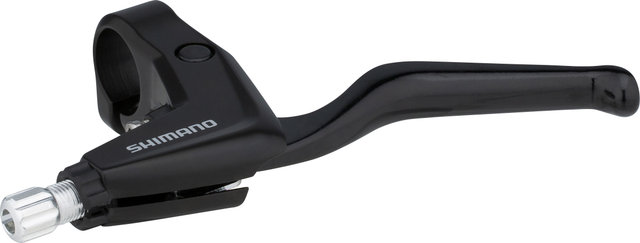

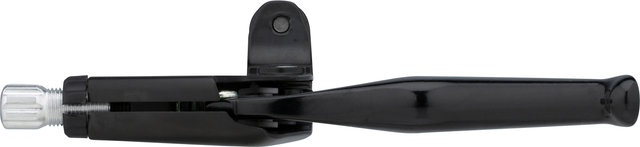

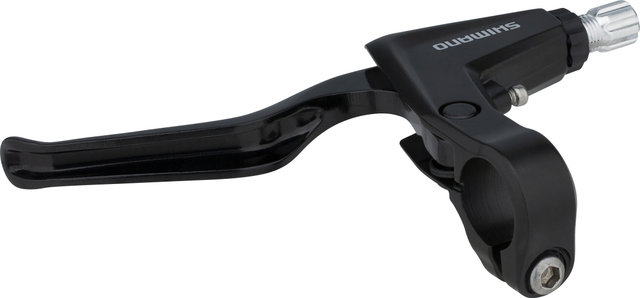

Shimano BL-T4010 Brake Levers

The BL-T4010 Brake Levers by Shimano - Harmonious function and appearance

Shimano BL-T4010 are brake levers city & touring, which are on the Alivio level but cannot be assigned to any group (neutral Shimano logo). They can be used for V-brakes and mechanical disc brakes. Unlike the BL-T4000, they were equipped with longer 3-finger brake levers. Smooth-running, low-noise function and an attractive design make the BL-T4010 brake lever pair the perfect companions on tours.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Type:

V-brake, mechanical disc brakes (MTB)

Actuation:

brake cable

Technical Information:

Lever Length:

3-finger

Adjustment Options:

reach adjust, cable adjust (two-handed)

Mount:

clamp (closed)

Design:

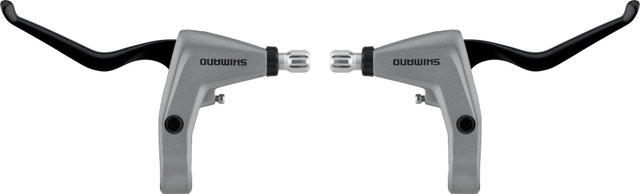

right (side-specific), left (side-specific)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Compatibility:

Clamp Diameter:

22.2 mm

V-Brake:

BR-T780, BR-MX70, BR-R573, BR-R463, BR-R353, BR-T670, BR-T610, BR-T4010, BR-T4000 (Power Modulator for front wheel required)

E-bike Components:

SW-M9050, SW-M8050, SW-EM800-L, SW-E8000-L, SW-E7000, SW-E6010, SW-E6000, SC-E5000, SC-E5003

Features:

• smooth-running and low-noise function thanks to bumper stop (internal stop)
• T-type brake cable
• anodised lever, painted body

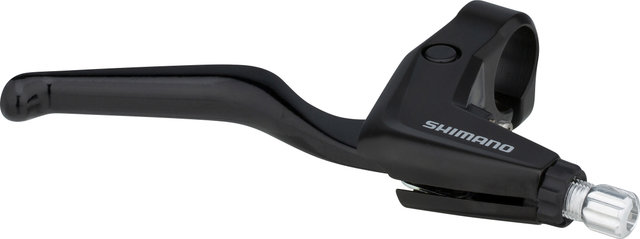

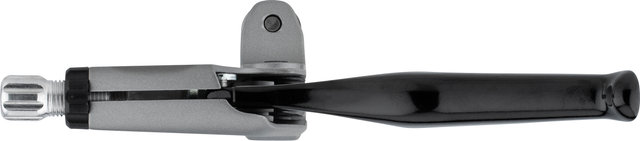

• two colour options (black or silver body, black lever)
• stainless steel clamp bolts

Manufacturer Numbers:

black:

E-BLT4010PAL1

silver:

E-BLT4010PAS1

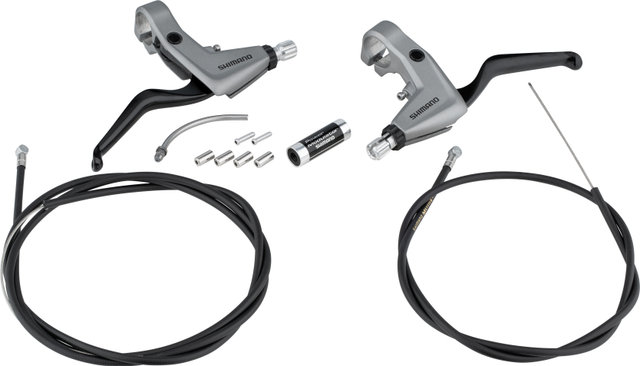

Contents:

• 1 x pair Shimano BL-T4010 brake levers with handles
• 1 x Shimano 900 mm brake cable
• 1 x Shimano 1600 mm brake cable
• 1 x Shimano 800 mm cable housing
• 1 x Shimano 1400 mm cable housing

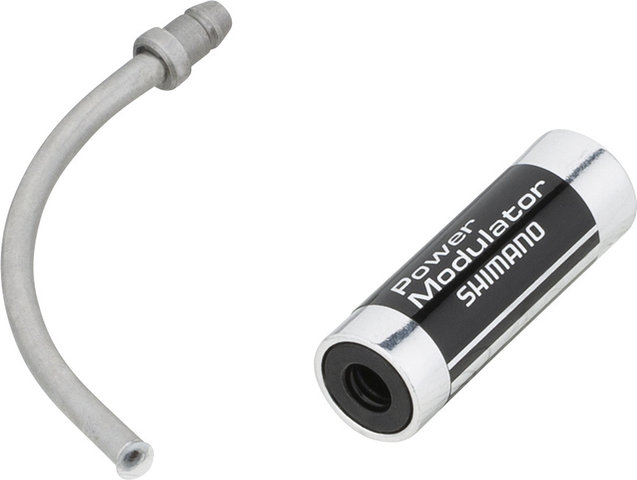

• 1 x Shimano SM-PM40 power modulator
