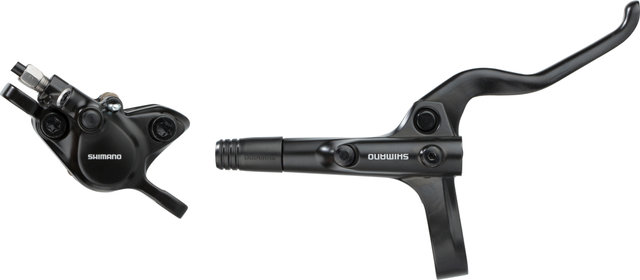

Shimano BR-MT200 Disc Brake - OEM Packaging

The BR-MT200 disc brake by Shimano - suitable for many bike types

The Shimano BR-MT200 disc brake is an affordable braking system without groupset integration. With its versatile design, it is suitable for numerous types of bikes in the MTB or even touring and urban areas. The performance of the 2-piston caliper is adapted to beginners and runs reliably without much noise. Thanks to One Way Bleeding technology, bleeding is no problem. The BL-MT200 3-finger brake lever has a grip width that can be comfortably grasped by small hands and adjusted with a tool.

OEM Packaging:

This item comes from the original equipment manufacturer and is lacking the retail packaging.

Specifications:

Application:

Cross Country, City & Touring

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH59-JK-SS

Hose Length (Front/Rear):

1000 mm/1700 mm

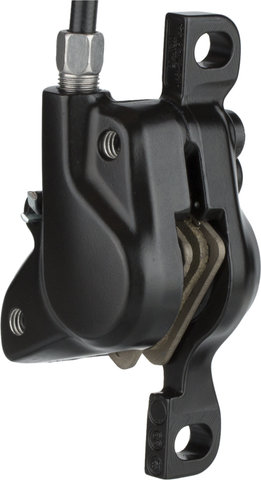

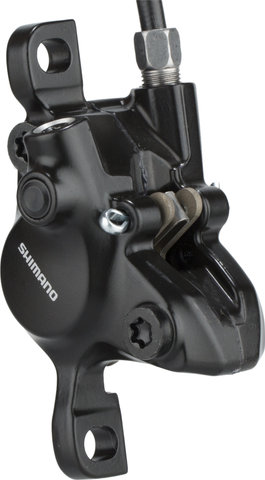

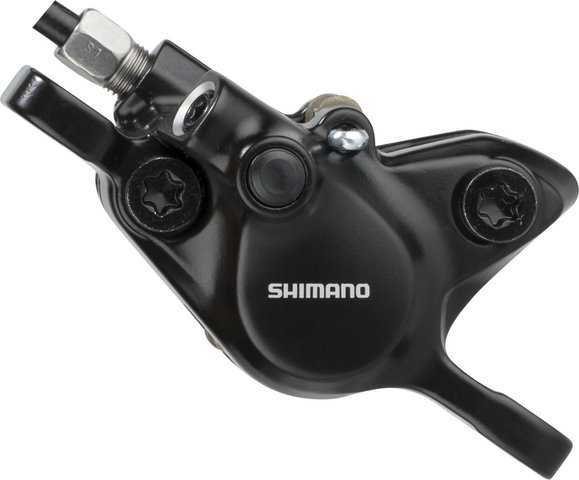

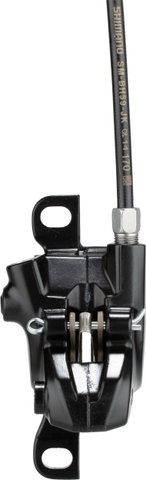

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

resin

Hose Connection:

straight

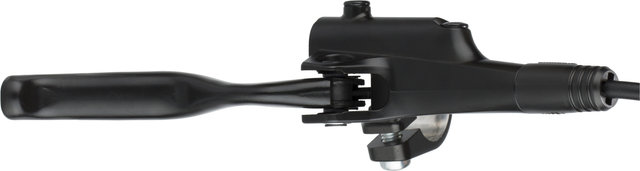

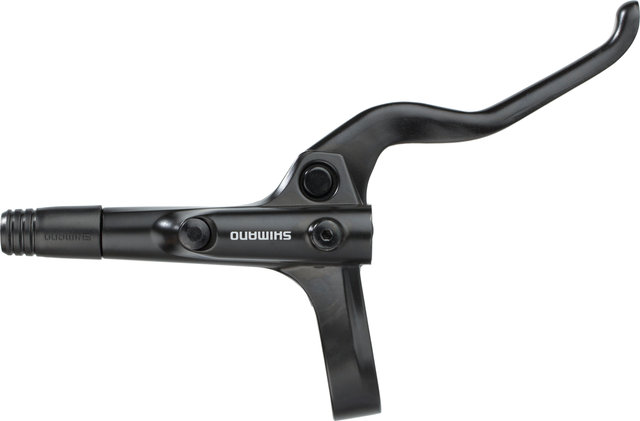

Technical Information - Lever:

Lever Length:

3-finger

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (closed)

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

steel

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

Mounting Position:

• front brake caliper: brake lever left
• rear brake caliper: brake lever right

Brake Rotor:

160 mm, 180 mm (recommended: SM-RT10, SM-RT26)

Pads:

organic; with wide pad shape; standard brake pads (no Ice-Tech)

Features:

Brake Lever:

• versatile design suitable for a wide range of bike types
• braking power adapted to MTB beginners
• small hands can easily reach lever
• easy, fast and clean installation
• funnel venting with M5 funnel
• painted lever and body
• steel clamp bolt
• Shimano logo

Brake Caliper:

• versatile design suitable for a wide range of bike types
• braking power adapted to MTB beginners
• reliable, quieter braking performance
• easy, fast and clean installation
• reduced rattling noises of the brake hoses
• 2 pistons made of synthetic resin
• painted
• steel bolts (5 mm)

Technology:

One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Contents:

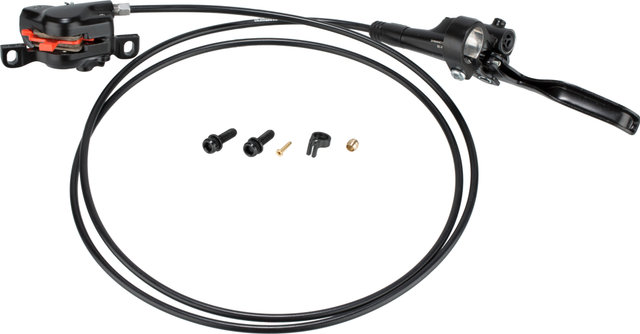

• 1 x Shimano BR-MT200 + BL-MT200 disc brake, front or rear
• 1 x Shimano SM-BH59-JK-SS brake hose, 1000 mm (front) or 1700 mm (rear)
• 1 x pair Shimano brake pads
• 1 x inserts
• 1 x olives
• 2 x calliper bolts
• 1 x snap ring
• ready to mount (filled & bled)

Order Together:

• Disc Brake Adapter
• TL-BH61 tool for insert installation
