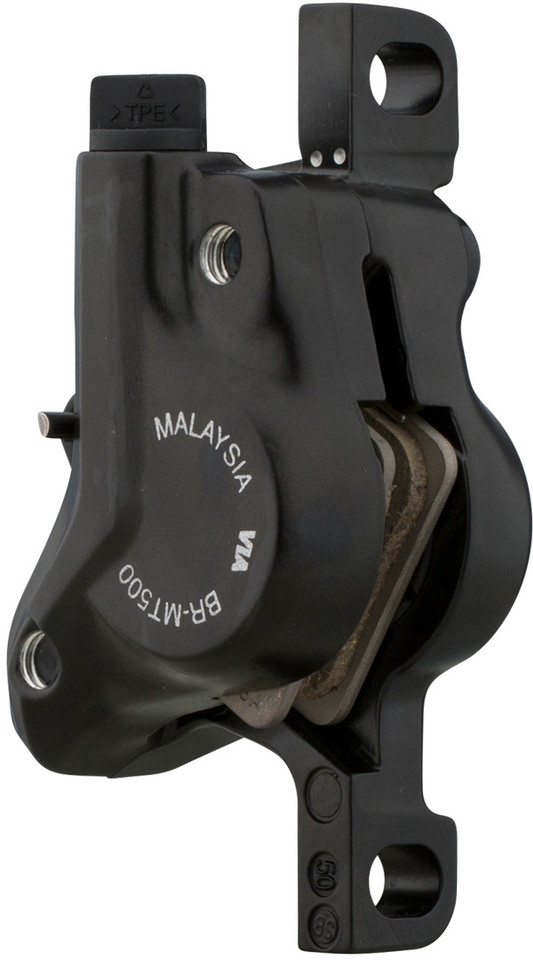

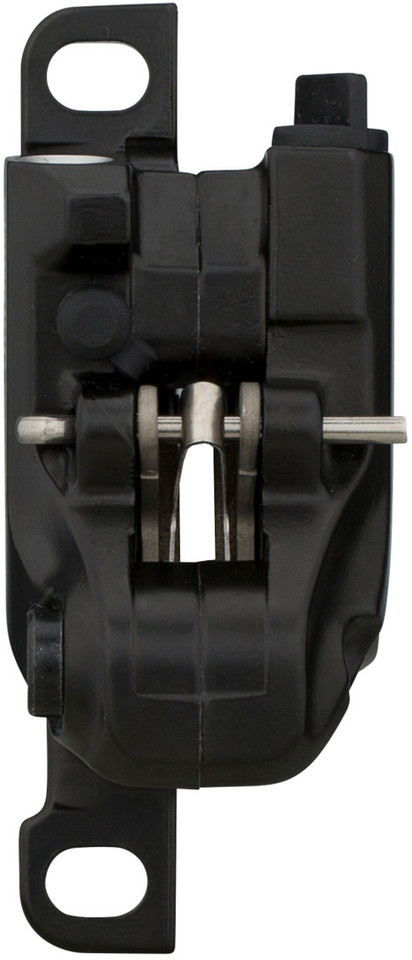

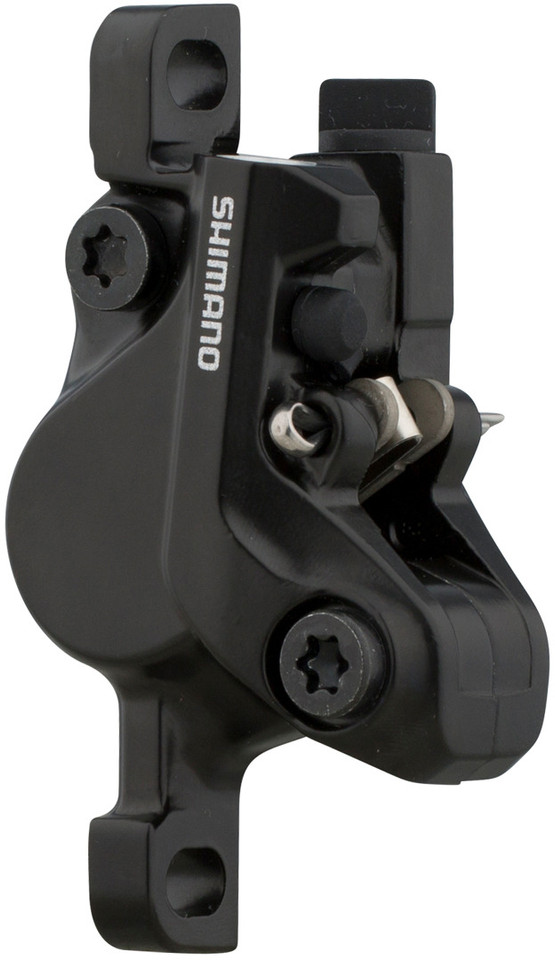

Shimano BR-MT500 Brake Caliper w/ Resin Pads

Shimano BR-MT500 brake caliper - reliable performance from XC to AM

Shimano BR-MT500 is a Deore-level groupless brake caliper with Shimano logo. It has two resin pistons that ensure reliable and stable braking performance and can be easily bled properly thanks to the One Way Bleeding function. BR-MT500 can be used for Cross Country and All Mountain. A pair of synthetic resin pads is included in the delivery.

Specifications:

Application:

All Mountain, Cross Country

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH59-JK-SS (not included)

Technical Information:

Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

resin

Hose Connection:

straight

Compatibility:

Mounting Position:

front or rear wheel

Brake Rotor:

160 mm, 180 mm (recommended: SM-RT54, SM-RT56)

Pads:

organic; with wide pad shape; standard brake pads (no Ice-Tech)

Recommended Brake Lever:

BL-MT500

Features:

• reliable performance and stable brake design
• ideal for all riding styles: from Cross Country to Trail
• insulated pad and piston
• 2 pistons made of synthetic resin
• painted
• steel bolts (5 mm)

Technology:

One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

E-BRMT500MPPRXL

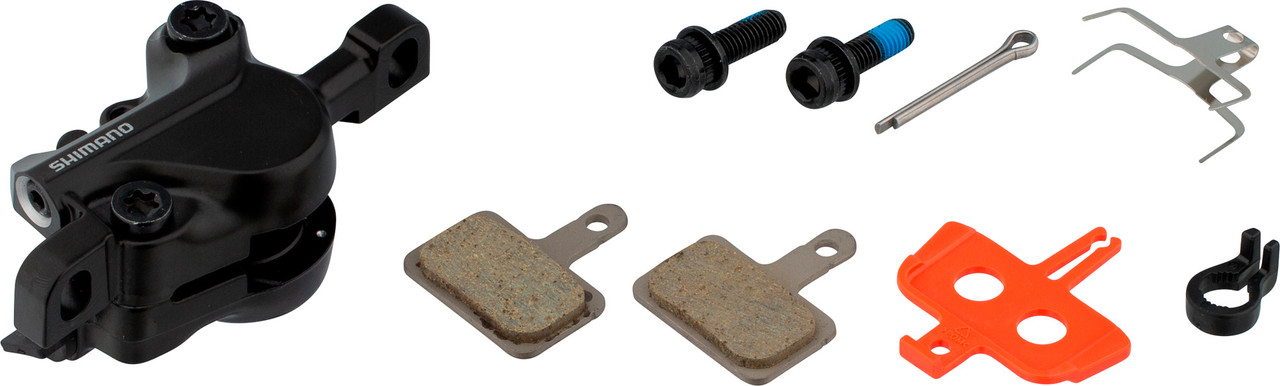

Contents:

• 1 x Shimano BR-MT500 brake caliper
• 1 x pair Shimano brake pads with spring and split pin
• 2 x calliper bolts
• 1 x snap ring

Order Together:

• Disc Brake Adapter
