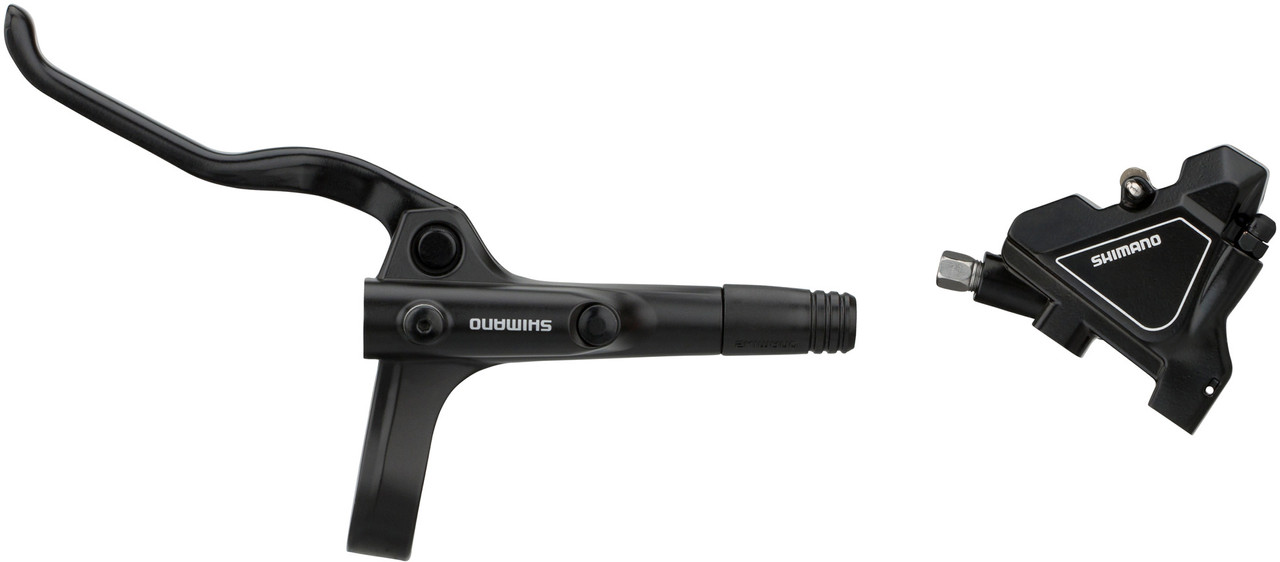

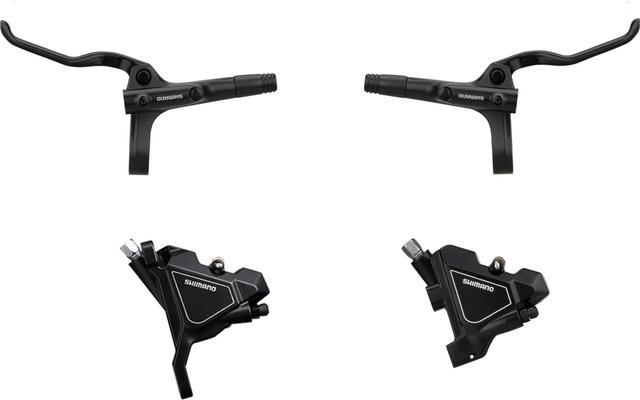

Shimano BR-UR300 + BL-MT200 Disc Brake Set

Shimano BR-UR300 + BL-MT200 disc brake set - flat mount for MTB

The Shimano BR-UR300 + BL-MT200 disc brake set comes with flat-mount calipers and two 3-finger brake levers. The flat-mount design - known for a long time from the racing bike sector - ensures a tidy integrated look and simple installation without adapters. Of course, the release unit can also be properly bled without any problems using One Way Bleeding. The width of the brake handles can be adjusted with a tool to fit smaller hands. Overall, the braking performance of the 2-piston brake set is adapted to the needs of MTB beginners or the requirements on tour and in city traffic.

Specifications:

Application:

City & Touring, Cross Country, All Mountain

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH59-JK-SS

Hose Length (Front/Rear):

1000 mm/1700 mm

Technical Information - Caliper:

Caliper Mount:

flat mount

Pads:

resin

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

resin

Hose Connection:

straight

Technical Information - Lever:

Lever Length:

3-finger

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (closed)

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

steel

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Compatibility:

Mounting Position:

• front brake caliper: brake lever left
• rear brake caliper: brake lever right

Brake Rotor:

160 mm, 180 mm (recommended: SM-RT10, SM-RT26)

Pads:

organic; with wide pad shape; standard brake pads (no Ice-Tech)

Features:

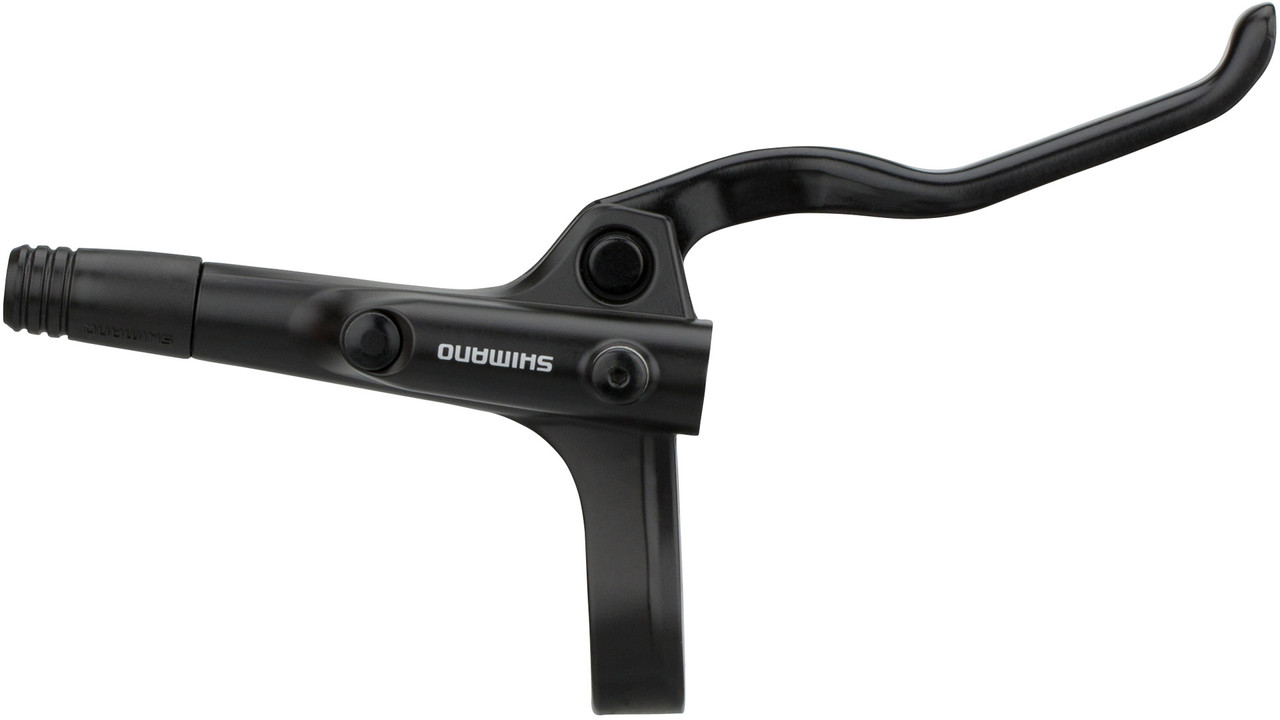

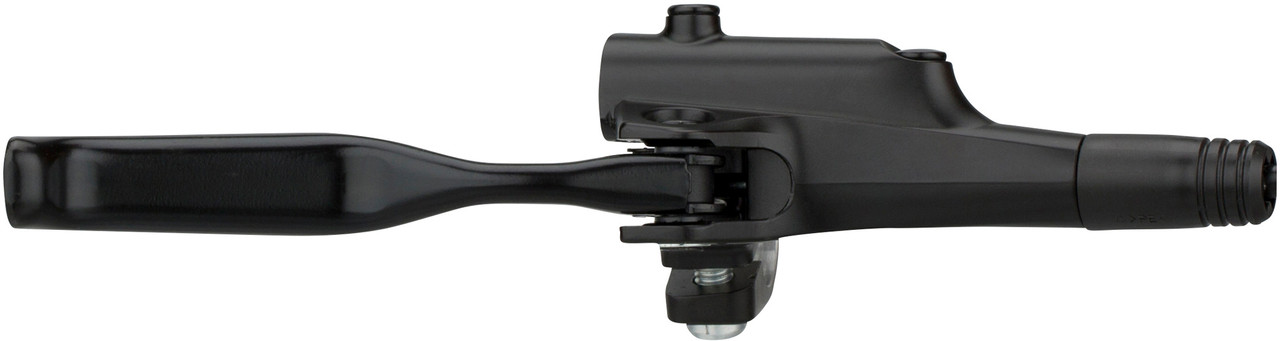

Brake Lever:

• versatile design suitable for a wide range of bike types
• braking power adapted to MTB beginners
• small hands can easily reach lever
• easy, fast and clean installation
• funnel venting with M5 funnel
• painted lever and body
• steel clamp bolt
• Shimano logo

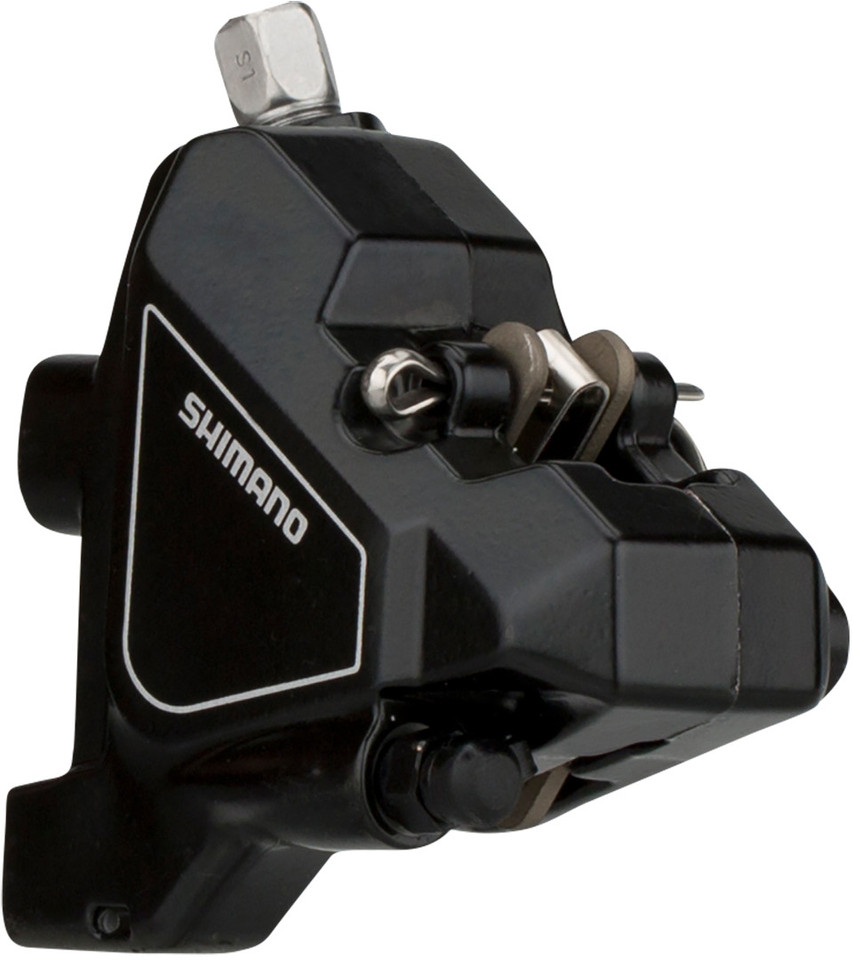

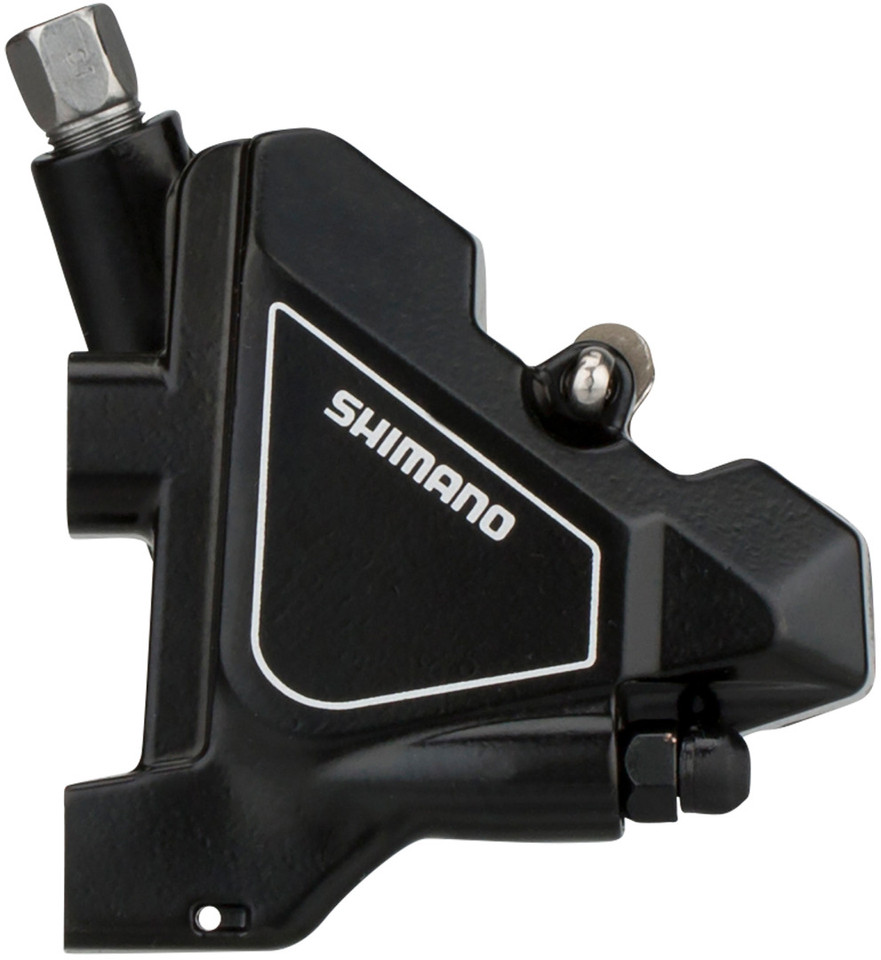

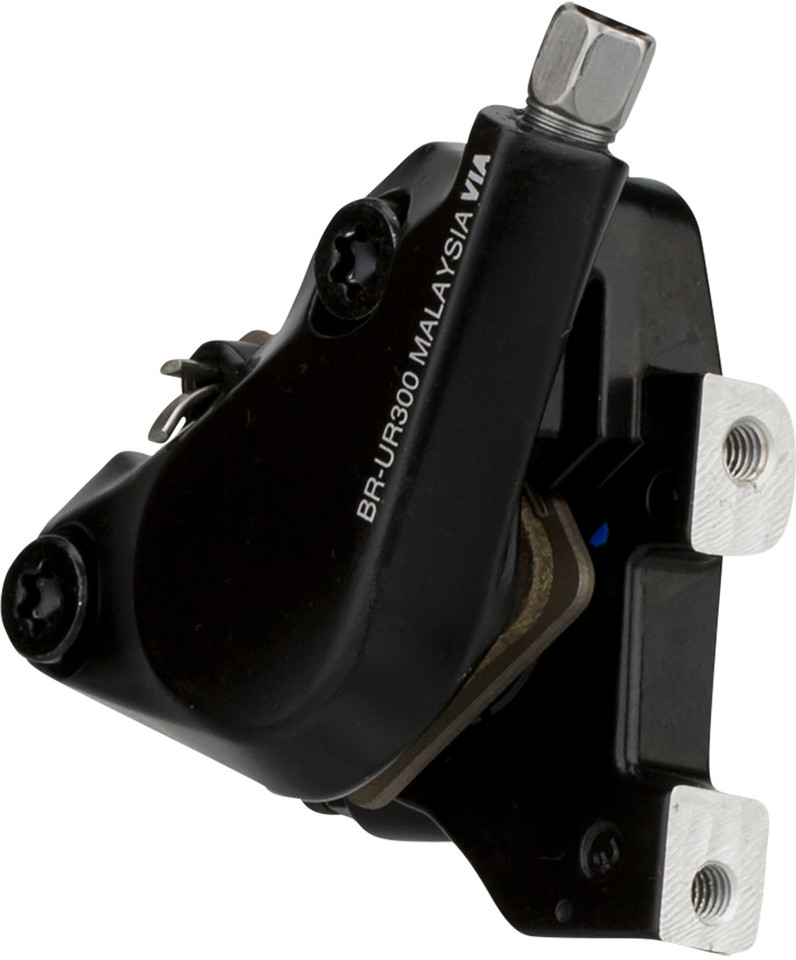

Brake Caliper:

• direct mount without adapter
• ample braking power and braking performance for beginners
• reduced rattling noises of the brake hoses
• tidy integrated look
• resin pistons
• painted
• steel bolts (5 mm)

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

E-MT2002KLF6RA100 + E-MT2002KRRDRA170

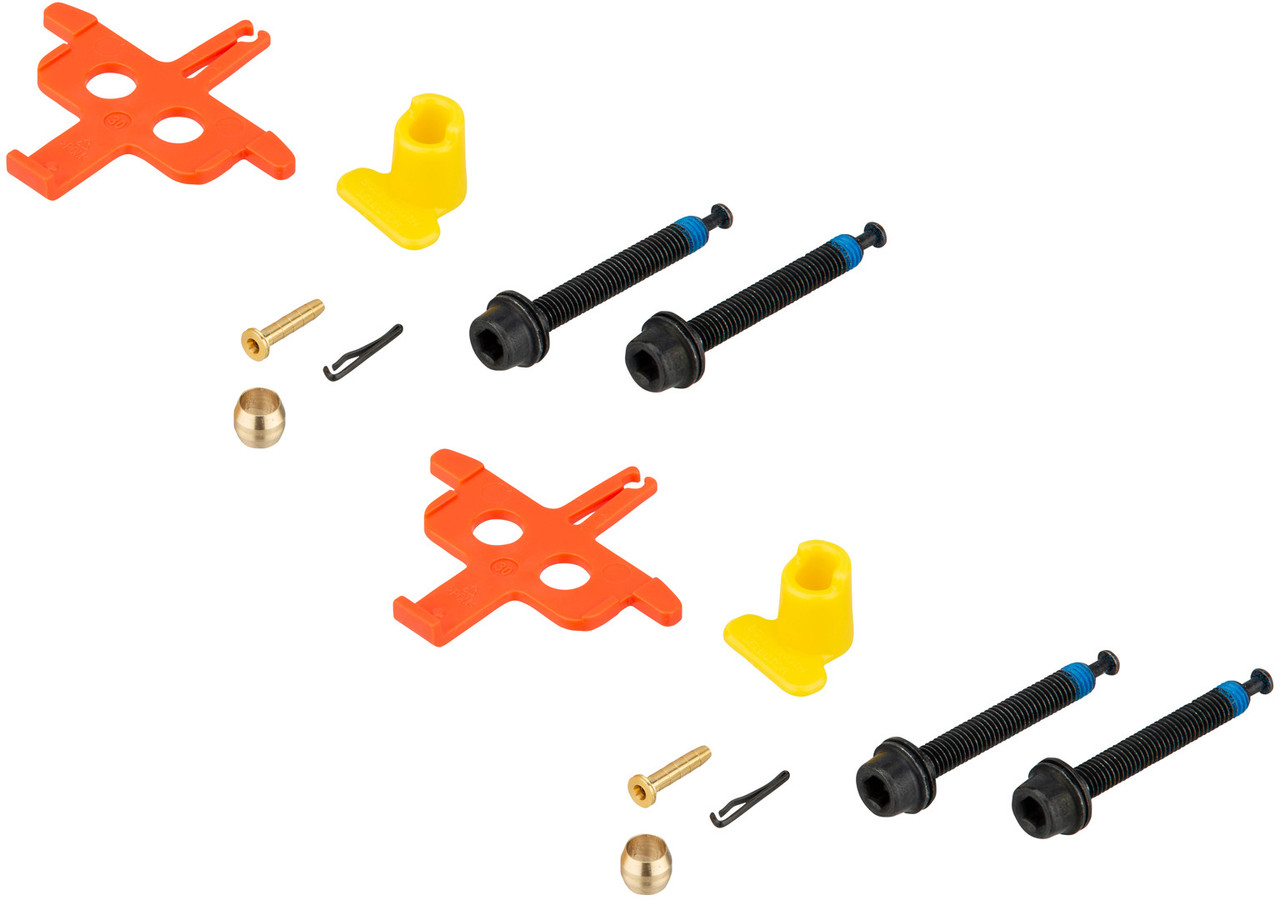

Contents:

• 2 x Shimano BR-UR300 + BL-MT200 disc brakes, front & rear
• 1 x Shimano SM-BH59-JK-SS brake hose, 1000 mm (front)
• 1 x Shimano SM-BH59-JK-SS brake hose, 1700 mm (rear)
• 2 x pairs Shimano brake pads
• 2 x inserts
• 2 x olives
• 2 x type A caliper bolts (front)
• 2 x caliper bolts for 25 mm frame diameters (rear)
• ready to mount (filled & bled)

Order Together:

• TL-BH61 tool for insert installation

Optional Accessories:

• Screws for 10/15/20/30/35 mm Frame Diameter
