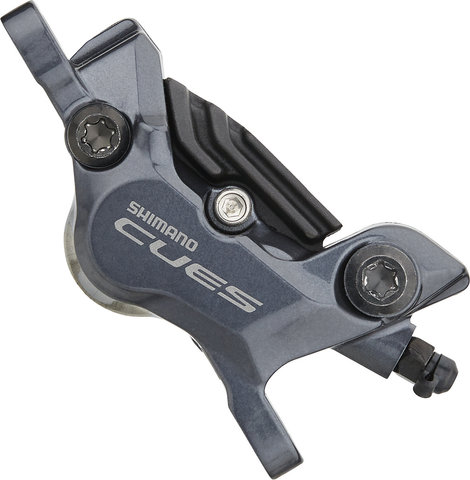

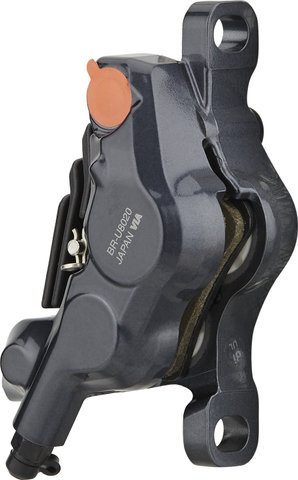

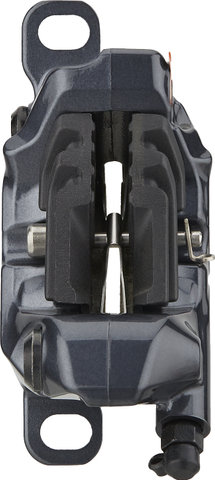

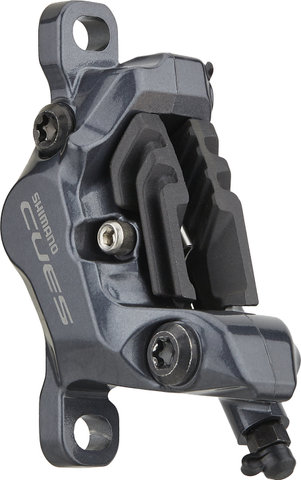

Shimano CUES BR-U8020 Brake Caliper w/ Resin Pads

Shimano CUES BR-U8020 brake caliper with resin pads - Four-piston model for touring and city traffic

Shimano CUES BR-U8020 is a hydraulic disc brake caliper with four pistons and comes with organic cooling fin brake pads. It provides reliable, finely adjustable brake control on your touring or city bike. Compared to the two-piston version, you benefit from even more braking power, especially when riding fast and downhill. BR-U8020 is made of lacquered aluminium and has a banjo connection for the brake hose. The brake pistons are made of heat-resistant ceramic. Thanks to the One-Way Bleeding technology, the bleeding process can be carried out cleanly, quickly and easily.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

CUES U8000

Application:

City & Touring

Type:

hydraulic, 4 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SBM (not included)

Technical Information:

Caliper Mount:

post mount

Pads:

resin with cooling fins

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

Ceramic

Hose Connection:

banjo

Compatibility:

Mounting Position:

front or rear wheel

Brake Rotor:

140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: RT-MT800)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Recommended Brake Lever:

BL-U8000

Features:

• hydraulic four-piston disc brake for reliable brake control in city traffic and on tour
• strong, finely adjustable braking power for increased safety downhill and at high speeds
• fast and precise installation
• simple bleeding process
• version with organic brake pads made of synthetic resin (with cooling fins)
• painted
• steel bolts (5 mm)

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

IBRU8020MPRF

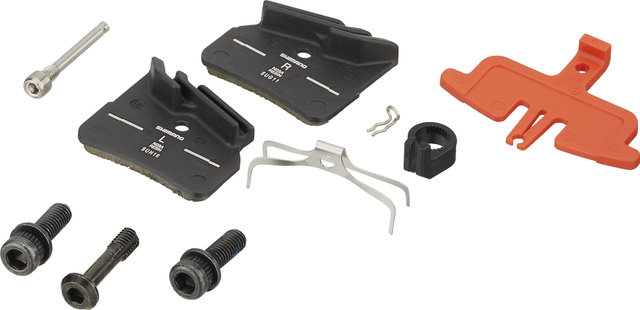

Contents:

• 1 x Shimano CUES BR-U8020 brake caliper
• 1 x pair Shimano resin brake pads with spring
• 2 x calliper bolts
• 1 x Banjo bolt
• 1 x pad retaining bolts
• 1 x snap ring

Order Together:

• Disc Brake Adapter

Optional accessories:

• D03S-RX Resin Pads w/o Cooling Fins
• D02S-MX Metal Linings w/o Cooling Fins
• N04C-MF Metal Pads w/ Cooling Fins
