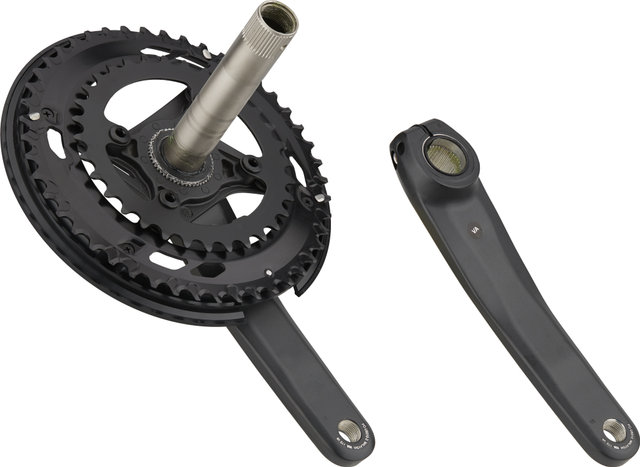

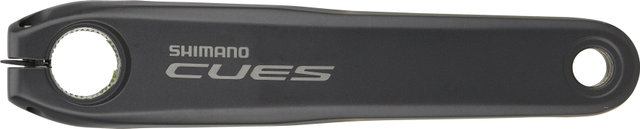

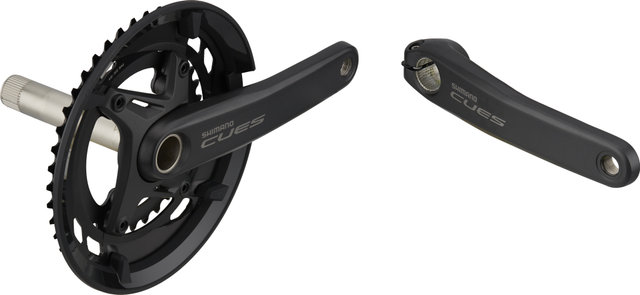

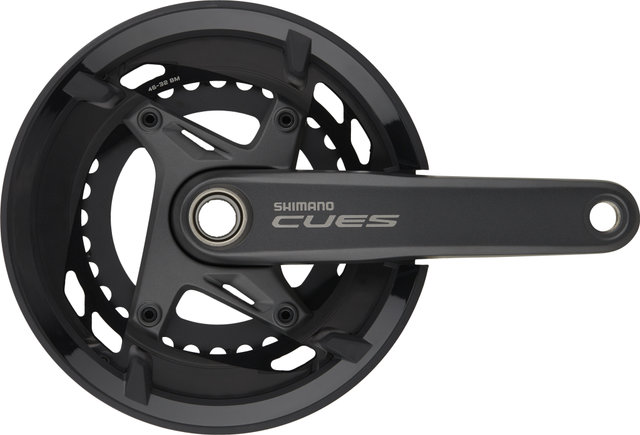

Shimano CUES Crankset FC-U6010-2 Hollowtech II w/ Chain Guard

Shimano CUES FC-U6010-2 - Hollowtech-II crank with two chainrings and chain guard for city, touring and MTB use

The CUES crankset FC-U6010-2, here in the version with a chain guard, was designed by Shimano for 2x11-speed Linkglide drivetrains for sporty city, touring and mountain bike use. The Hollowtech II design ensures highly efficient power transfer and outstanding stiffness with the lowest possible weight. Like the crank arms, the spider and the large chainring are made of lightweight aluminium, which also saves a few grams. The gradation is chosen so that it is possible to pedal harmoniously and smoothly on different types of terrain and also over long distances. The crank produces a chainline of 48.8 mm, which is why frame installation widths of 135 mm and 142 mm are compatible. The Q-factor is 180 mm. Thanks to the chain guard, your pants won't get caught between the chainring and the chain while riding.

Specifications:

Application:

City, Touring, All Mountain

Compatibility:

2x11-speed

Chainring Mount:

110 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Series:

CUES U6000

Crank Arm Material:

aluminium

Chainring Material:

aluminium / steel

Axle Material:

steel

Gradation:

32-46

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

48.8 mm

Q-Factor:

180 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501 (BSA) or BB-MT500-PA press fit (not included)

Recommended Chain:

Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT800, SM-BB52, BB-MT500, BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Shifter:

SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-L

Front Derailleur:

FD-U8010, FD-U6010

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Chain Case:

compatible

Features:

• Hollowtech II crank with two chainrings and chain guard for sporty city, touring and MTB use
• exclusively for Shimano Linkglide drivetrains (11-speed only)
• reliable, smooth performance on various terrain
• wide ratio range for harmonious, comfortable pedalling
• very efficient power transfer, ideal for long distances
• high stiffness with low weight
• large chainring made of aluminium, small chainring made of steel
• lacquered crank arms, spider and small chainring
• large anodised chainring
• stainless steel chainring bolts

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

170.0 mm 32-46:

EFCU60102CX62C

175.0 mm 32-46:

EFCU60102EX62C

Contents:

• 1 x Shimano CUES FC-U6010-2 crankset (32-46 tooth)
• 1 x Shimano chain guard
• 1 x Shimano crank bolts
