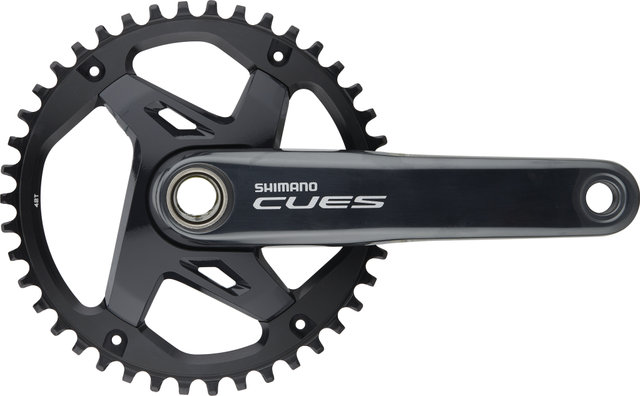

Shimano CUES Crankset FC-U8000-1 Hollowtech II

Shimano CUES FC-U8000-1 - Hollowtech-II crank with one chainring for city and touring

The CUES crankset FC-U8000-1 was designed by Shimano for Linkglide drivetrains on high-quality city bikes and touring bikes. It is suitable for 1x9-speed, 1x10-speed and 1x11-speed gears. The special tooth profile of the chainring efficiently guides the chain even in rougher terrain and prevents it from jumping off. The Hollowtech II design ensures highly efficient power transfer and outstanding stiffness with the lowest possible weight. Like the crank arms, the spider and chainring are also made of lightweight aluminium, which also saves a few grams. The size of the chainring is chosen so that it can be pedalled harmoniously and comfortably over long distances. The crank produces a chainline of 50 mm, which is why frame installation widths of 135 mm and 142 mm are compatible. The Q-factor is 180 mm.

Specifications:

Application:

City & Touring

Compatibility:

1x9-speed, 1x10-speed, 1x11-speed

Chainring Mount:

110 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Series:

CUES U8000

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

40 tooth, 42 tooth

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

50 mm

Q-Factor:

180 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT801 (BSA) or BB-MT800-PA press fit (not included)

Recommended Chain:

Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG701-11)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT800, SM-BB52, BB-MT500, BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Chain Case:

compatible

Features:

• Hollowtech II crank with one chainring for high-quality city and touring bikes
• exclusively for Shimano Linkglide drivetrains (9-speed, 10-speed, 11-speed)
• excellent chain hold thanks to special tooth shape
• wide ratio range for harmonious, comfortable pedalling
• very efficient power transfer, ideal for long distances
• high stiffness with low weight
• anodised crank arms, spider and chainring
• aluminium chainring bolts

Technology:

Hollowtech II

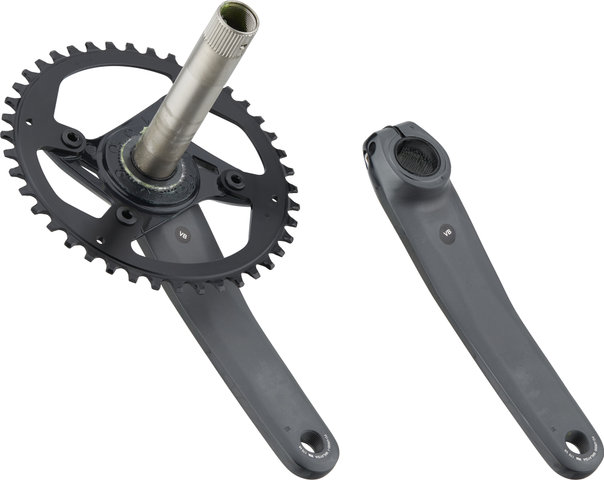

Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Dynamic Chain Engagement+
Dynamic Chain Engagement+ is Shimano's term for a special tooth profile of single chainrings intended for off-road use. This improves the chain hold and counteracts chain drop on rough ground. It also minimises wear and increases pedaling efficiency.

Manufacturer Numbers:

170.0 mm 40 tooth:

EFCU80001CXB0X

170.0 mm 42 tooth:

EFCU80001CXB2X

175.0 mm 40 tooth:

EFCU80001EXB0X

175.0 mm 42 tooth:

EFCU80001EXB2X

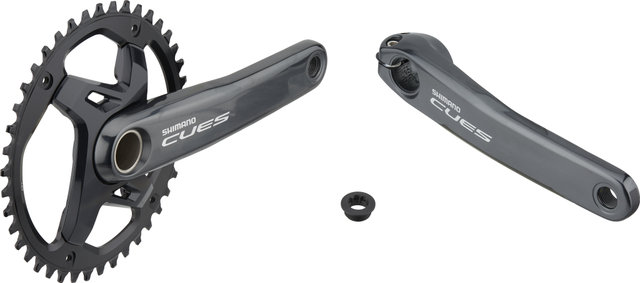

Contents:

• 1 x Shimano CUES FC-8000-1 crankset (40 or 42-tooth)

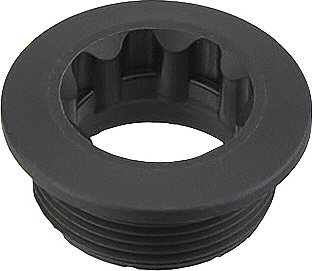

• 1 x Shimano crank bolts
