Shimano CUES Crankset FC-U8000-2 Hollowtech II

Shimano CUES FC-U8000-2 - Hollowtech-II crank with two chainrings for city and touring use

The CUES crankset FC-U8000-2 was designed by Shimano for 2x11-speed Linkglide drivetrains on high-quality city bikes and touring bikes. The Hollowtech II design ensures highly efficient power transfer and outstanding stiffness with the lowest possible weight. Like the crank arms, the spider and both chainrings are made of lightweight aluminium, which also saves a few grams. The gradation is chosen so that it is possible to pedal harmoniously and smoothly over long distances. The crank produces a chainline of 48.8 mm, which is why frame installation widths of 135 mm and 142 mm are compatible. The Q-factor is 180 mm.

Specifications:

Application:

City & Touring

Compatibility:

2x11-speed

Chainring Mount:

110 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Series:

CUES U8000

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

32-46

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

50 mm

Q-Factor:

180 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT801 (BSA) or BB-MT800-PA press fit (not included)

Recommended Chain:

Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG701-11)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT800, SM-BB52, BB-MT500, BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Shifter:

SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-L

Front Derailleur:

FD-U8010, FD-U6010

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Chain Case:

compatible

Features:

• Hollowtech II crank with two chainrings for high-quality city and touring bikes
• exclusively for Shimano Linkglide drivetrains (11-speed only)
• wide ratio range for harmonious, comfortable pedalling
• very efficient power transfer, ideal for long distances
• high stiffness with low weight
• anodised crank arms, spider and chainrings
• aluminium chainring bolts

Technology:

Hollowtech II

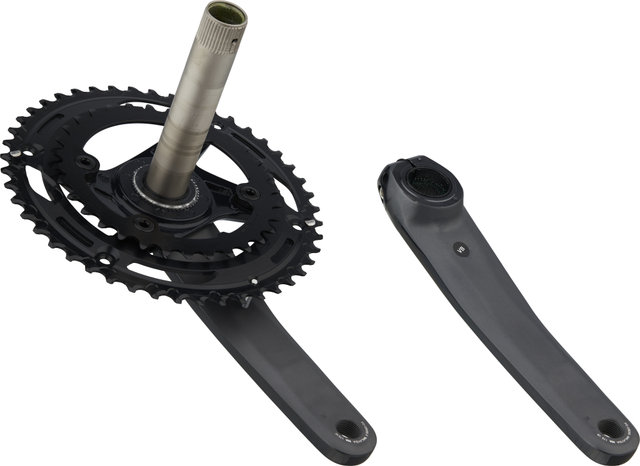

Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

170.0 mm 32-46:

EFCU80002CX62X

175.0 mm 32-46:

EFCU80002EX62X

Contents:

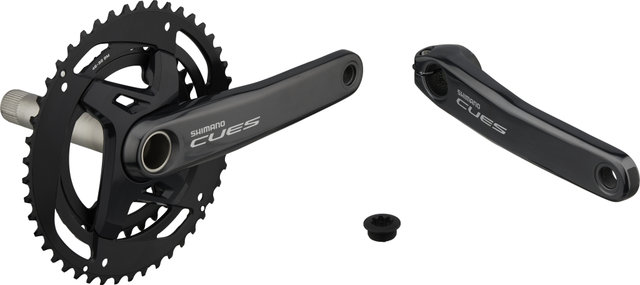

• 1 x Shimano CUES FC-8000-2 crankset (32-46 tooth)
• 1 x Shimano crank bolts
