Shimano CUES FC-U4010-2 Crankset

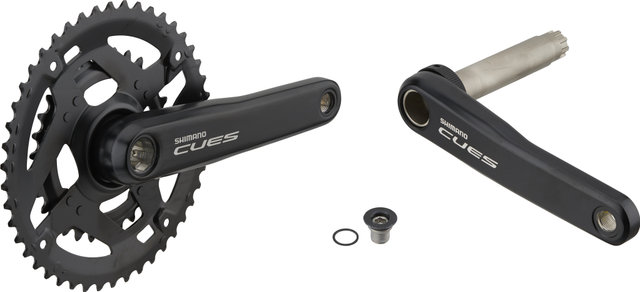

Shimano CUES FC-U4010-2 - 2-piece crank with two chainrings for city, touring and MTB

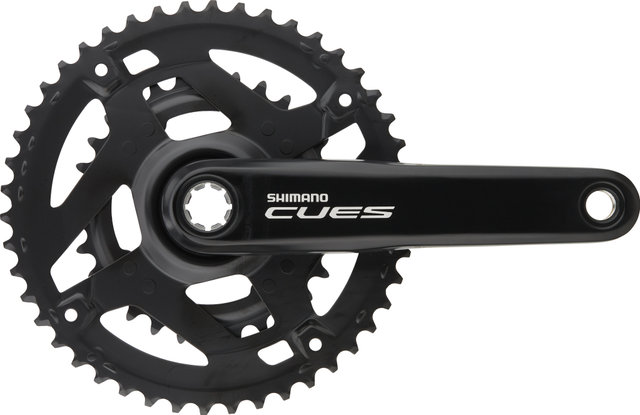

The CUES crankset FC-U4010-2 was designed by Shimano for Linkglide drivetrains on city, touring and mountain bikes. It is suitable for 2x9-speed, 2x10-speed and, depending on the version, also for 2x11-speed derailleurs and produces a chainline of 48.8 mm. Therefore, frame over locknut dimensions of 135 mm and 142 mm are compatible. The Q-factor is 180 mm. The 2-piece design of the crank provides an optimal stiffness-to-weight ratio and improves power transfer. The gradations are chosen so that it is possible to pedal harmoniously and smoothly on different types of terrain. The model is made of aluminium and steel. The four-armed steel chainrings are permanently installed via riveted joints.

Specifications:

Application:

City, Touring, All Mountain

Compatibility:

2x9-speed, 2x10-speed, 2x11-speed*

Chainring Mount:

4-arm (riveted)

* 30-46 T is not 11-speed compatible

Technical Information:

Series:

CUES U4000

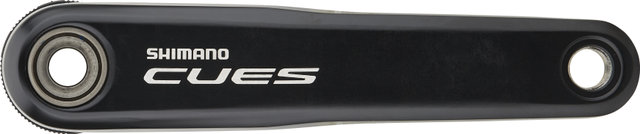

Crank Arm Material:

aluminium

Chainring Material:

steel

Axle Material:

steel

Gradation:

22-36, 26-40, 30-46

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

48.8 mm

Q-Factor:

180 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501 (BSA) or BB-MT500-PA press fit (not included)

Recommended Chain:

Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Bottom Bracket:

BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Shifter:

SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-L

Front Derailleur:

• 2x11-speed (22-36 T, 26-40 T): FD-U6000, FC-U6010 (only 26-40 T)
• 2x10-speed (22-36 T, 26-40 T): FD-U6000, FD-U4000
• 2x10-speed (30-46 T): FC-U8010, FD-U6010
• 2x9-speed (22-36 T, 26-40 T): FD-U4000
• 2x9-speed (30-46 T): FD-U4010

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Chain Case:

30-46 T compatible

Features:

• 2-piece crank with two chainrings
• for city, touring and mountain bikes with Shimano Linkglide drivetrain (9-speed, 10-speed, 22-36 and 26-40 also 11-speed)
• reliable, smooth performance on various terrain
• wide ratio range for harmonious, comfortable pedalling
• optimum stiffness with low weight
• efficient transfer of pedal power
• painted crank arms and chainrings

Technology:

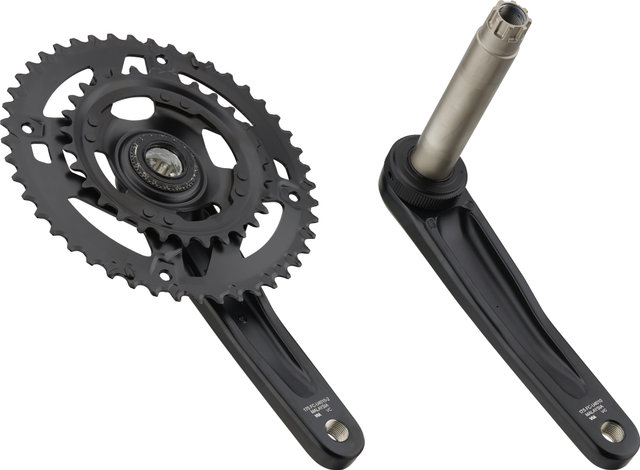

2-Piece Crankset
With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.

Manufacturer Numbers:

170.0 mm 22-36:

EFCU40102CX62

170.0 mm 26-40:

EFCU40102CX06X

170.0 mm 30-46:

EFCU40102CX60X

175.0 mm 22-36:

EFCU40102EX62

175.0 mm 26-40:

EFCU40102EX06X

175.0 mm 30-46:

EFCU40102EX60X

Contents:

• 1 x Shimano CUES FC-U4010-2 crankset (22-36, 26-40 or 30-46 teeth)

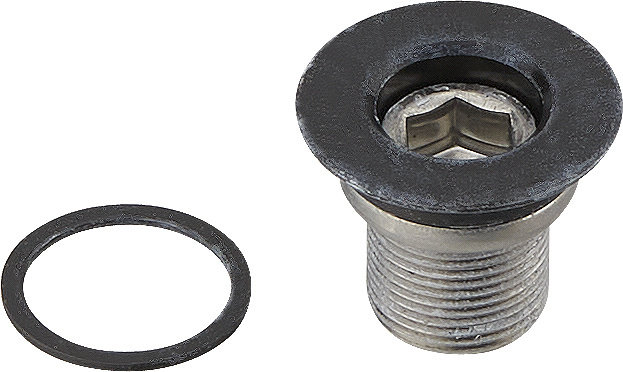

• 1 x Shimano crank bolts
