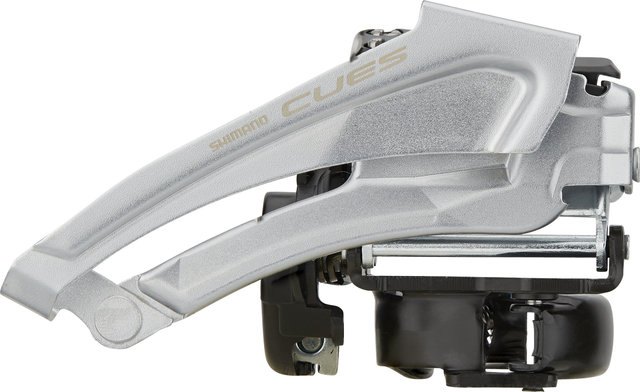

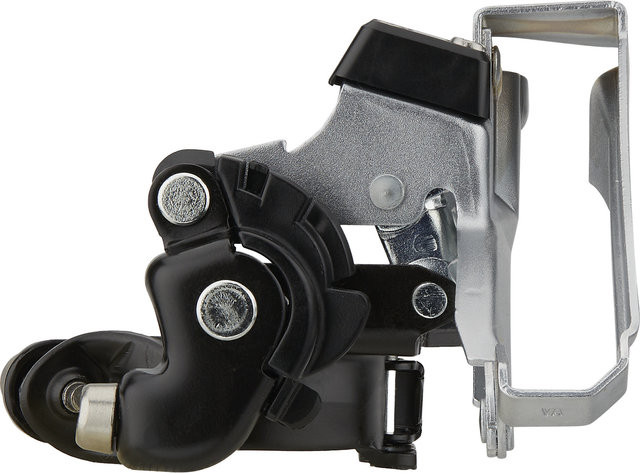

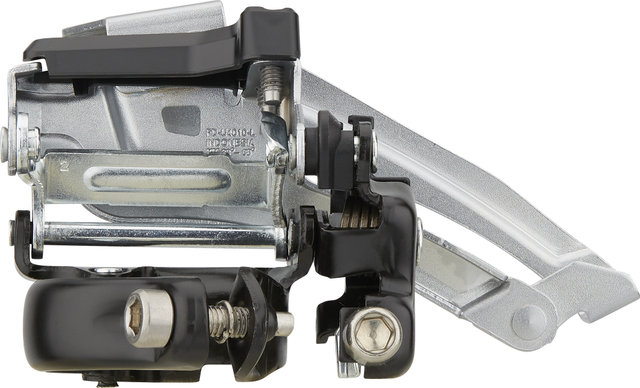

Shimano CUES FD-U4010 2-/9-speed Front Derailleur
Shimano CUES FD-U4010 front derailleur for city and touring bikes with Linkglide 2x9-speed
The Shimano front derailleur FD-U4010 from the CUES series was developed for city bikes and touring bikes with 2x9-speed Linkglide drivetrains. It impresses on the road and on rougher surfaces with its soft, precise function. Its reliability supports you on everyday and leisure rides. The front derailleur has a total capacity of 16 teeth and is designed for cranks with 46 teeth on the large chainring. It is compatible with the standard 48.8 mm chainline and fits chainstay angles from 63 to 68 degrees. FD-U4010 is attached by means of a clamp positioned below the derailleur body and can be controlled from above or below. The model is mostly made of robust steel.
Specifications:
- Series:
- CUES U4000
- Application:
- City & Touring
- Gearing:
- 2x (combined w/ 9-speed)
- Chainstay Angle:
- 63 - 68°
- Chainline:
- 48.8 mm
- Chainring Size (max.):
- 46 t
- Capacity:
- 16 t
- Cable Routing:
- dual pull
- Movement:
- top-swing
- Mount:
- low clamp
- Clamp Diameter:
- 34.9 mm with adapter 31.8 mm
- Compatibility:
- HG 11-speed chains, Linkglide chain CN-LG500
Technical Information:
- Outer Body Material:
- steel
- Inner Body Material:
- steel
- Cage Material:
- steel
Compatibility:
- Shifter:
- SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-L
- Crank (30-46 T):
- FC-U6000-2, FC-U4010-2
- Chain:
- CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11
Features:
- front derailleur for city and touring bikes with Shimano Linkglide drivetrain (2x9-speed only)
- smooth and precise shifting even on rough surfaces
- extra-large 2x gear range
- outstanding reliability
- parallelogram plated (outside) and lacquered (inside), baffles plated
Manufacturer Number:
EFDU4010LX3Contents:
- 1 x Shimano CUES FD-U4010 front derailleur
- 1 x 31.8 mm adapter
