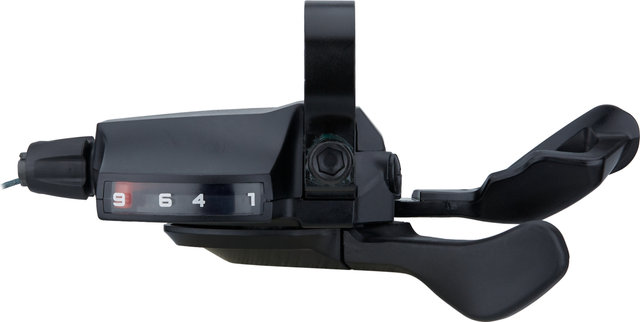

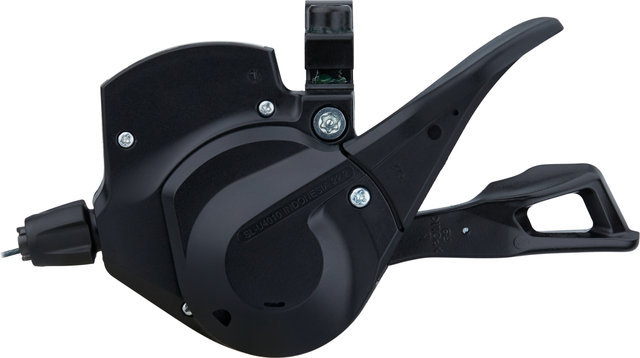

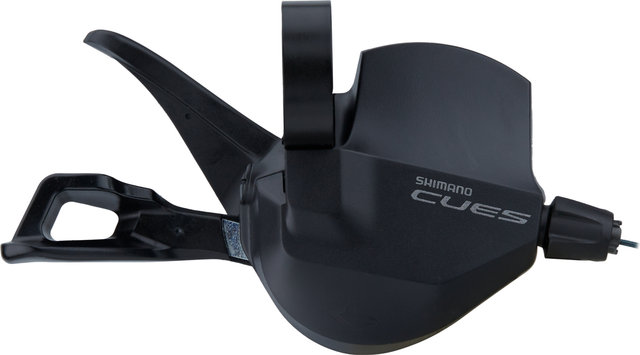

Shimano CUES SL-U4010 Clamp Shifter w/ Gear Indicator 9-speed

Shimano CUES SL-U4010 shifter for Linkglide 9-speed - With 2-Way Release, gear indicator and clamp attachment

The Shimano SL-U4010 from the CUES series is a 9-speed shifter for city, touring and mountain bikes with Linkglide drivetrains. In contrast to the SL-U4000 model, it is equipped with the 2-Way Release technology, i.e. you can operate the release lever both by pressing it with your thumb and by pulling it with your index finger. The SL-U4010 is attached to handlebars with a 22.2 mm clamp diameter on the right-hand side via a clamp. As a Rapidfire Plus model, it scores with fast gear changes and can downshift up to two gears at once. It has a fixed visual gear indicator that gives you more control over gear changes. The levers are easily accessible, ergonomically shaped and can be operated with little effort. This ensures comfort and more enjoyable riding. The shifter is made of aluminium, steel and synthetic resin. A steel shifter cable with a friction-reducing coating is included.

Specifications:

Series:

CUES U4000

Application:

City, Touring, All Mountain

Gearing:

9-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

aluminium

Lever Material:

Steel / Resin

Clamp Diameter:

22.2 mm

Cable:

steel (Optislick)

Housing:

OT-SP41

Gear Indicator:

yes

Adjustment Options:

• cable adjust

Compatibility:

Rear Derailleur:

RD-U4000, RD-U4020, RD-U3020

Cassette:

CS-LG400-9, CS-LG300-9

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Handlebar Grip Outer Diameter:

max. 36 mm

Features:

• 9-speed shifter with 2-Way Release Technology for city, touring and mountain bikes with Shimano Linkglide drivetrains
• optimised lever shape and easy accessibility of the levers
• low operating force for ease of use and comfort
• easy-to-read gear indicator for more control when shifting gears
• max. number of gears per shift: 2
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• steel clamp screw

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way Release
With 2-Way Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Models:

9-speed:

Mount:

right

Model Number:

SL-U4010-9R

Manufacturer Number:

ESLU40109RAP

Contents:

• 1 x Shimano CUES SL-U4010 shifter with gear indicator (right)

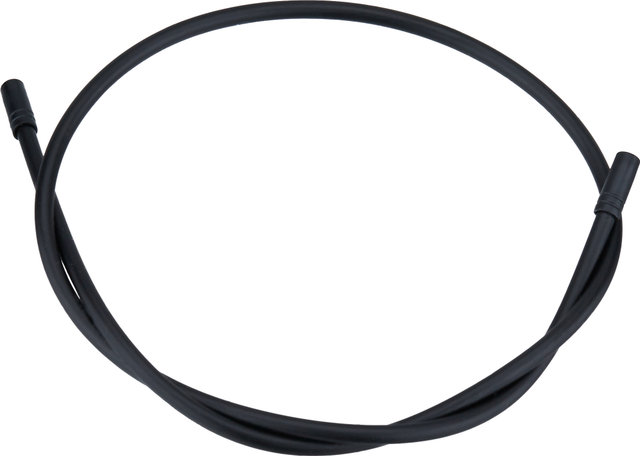

• 1 x Shimano cable, 2050 mm
• 1 x Shimano 600 mm cable housing
• 1 x Shimano 300 mm cable housing
